320 NX Single Frequency CW C-DPSS 320 nm UV Laser

Plus de vues

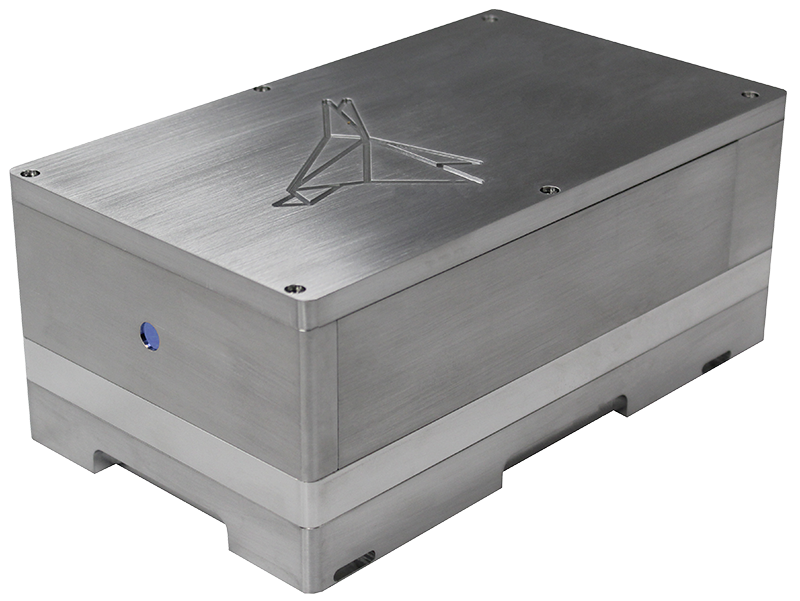

320 NX Single Frequency CW C-DPSS 320 nm UV Laser

The Skylark 320 laser offers C-DPSS CW single frequency UV operation, delivering up to 200 mW output power, outstanding spectral properties, ultra-stable output, and extremely low noise from a compact footprint and a versatile software package — making it suitable for system integration and a wide range of demanding applications.

Longueur d'onde, nm	320
Beam divergence, mrad	1.0 mrad, diffraction limited
Beam Pointing Stability, μrad/°C	≤ 5
Longitudinal Mode Structure	SLM
Line Width, MHz	≤ 0.5
Line Spectral Position Stability, MHz (pm)	±50 (±0.2) over 8 hour operation
Coherence Length, m	> 100
Polarisation	Linear, Vertical; ≥100:1
Output Power Noise, %	≤ 0.1% RMS (10Hz – 10MHz)
Output Power Stability, %	≤2%, Peak to Peak over 8 hours
Working Temperatures, °C	18 – 30, conductive cooling via mounting interface
Storage Temperatures, °C	0 to 50
Humidity, %	5 -95, non-condensing
Warm up time, min	5 - 30
Dimensions mécaniques du contrôleur, mm	238 x 170 x 54 mm
Operating Voltage, VAC	90 to 240
Frequency, Hz	50-60
Power Consumption, W	< 200

Description

Détails

OPTIONS AND ACCESSORIES

Closed-loop water chiller
Enhanced intensity stability through compact, closed-loop cooling. Enables portability of the laser system without dependence on a water mains connection.

Fan-assisted heatsink
Compact, low-cost system cooling which is integrated into the laser platform. Intelligently controlled to maintain stable wavelength output and intensity.

Fiber coupling
External fiber coupling options available to achieve easier integration. Multimode fibers typically achieve > 95% efficiency, for single-mode fibers it is > 70%.

Software power control
Flexible and easy output power adjustment to conserve system lifetime.

External power modulation
AOM configuration to achieve up to 200 kHz modulation on the output intensity.

Des documents

320 NX Laser - Datasheet Size: (385.79 KB)
320 NX Drawing Size: (141.66 KB)
320 Micro Air Drawing Size: (139.32 KB)
Controller Size: (112.63 KB)
Compact Controller Size: (124.58 KB)

Fonctionnalités

from 10 to 200 mW output power at 320 nm SLM
feedback locked Single Longitudinal Mode CW operation
very low noise performance, < 0.1% rms
excellent beam quality from smallest footprint
lowest power consumption for given output
Plug-in USB Connectivity
Remote diagnostics

Applications

Raman spectroscopy, Brillouin scattering, Flow cytometry, Optical manipulation, Interferometry, Semiconductor inspection, Wafer fabrication, Lithography, Confocal microscopy, Biomedical/Bioengineering, Fluorescence, Disc mastering, Optical grating Mastering, Diffraction grating mastering, High precision optics, and more.

Name	Output power, mW	Output Beam Diameter, TEM00, mm	Hauteur du faisceau, mm	Laser Head (L x W)	Prix	Quantité

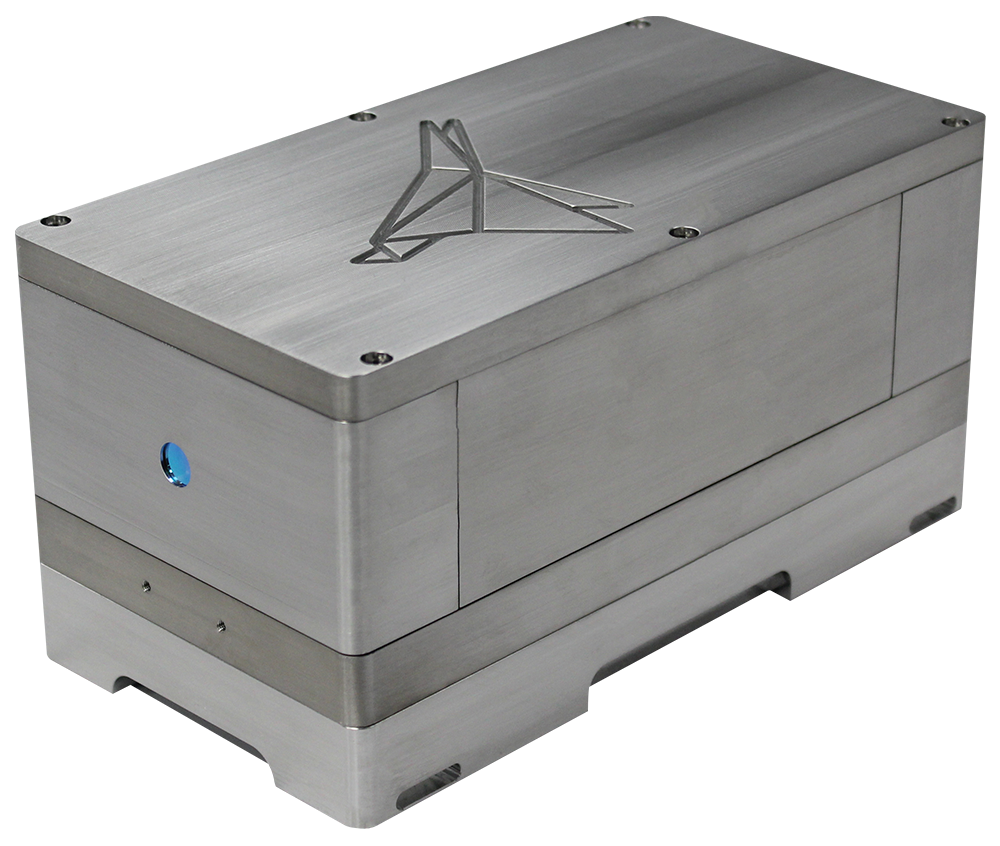

Micro 320-0030	30	0.6 - 1.2	52	170 x 75 mm	Request a quote	✉
NX 320-0050	50	0.6 - 1.2	65	240 x 150 mm	Request a quote	✉
NX 320-0100	100	0.6 - 1.2	65	240 x 150 mm	Request a quote	✉
NX 320-0200	200	0.6 - 1.2	65	240 x 150 mm	Request a quote	✉
