High-power Motorized Beam Expanders MEX-HP

Plus de vues

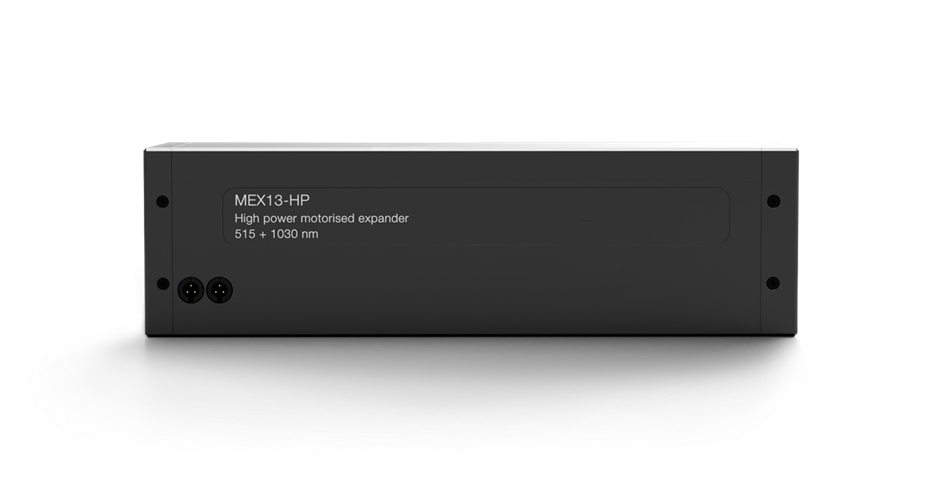

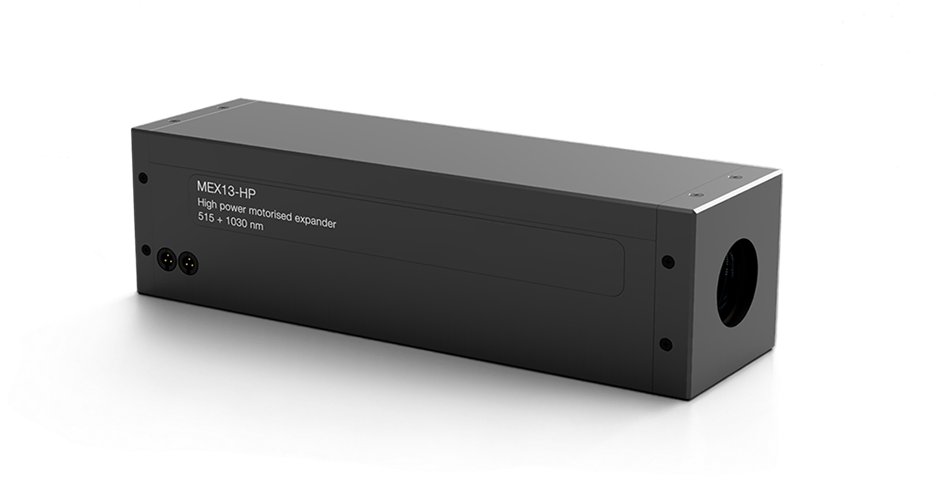

High-power Motorized Beam Expanders MEX-HP

High-Power Motorized Variable Beam Expanders.

Lens material	UVFS
Motorized magnification	1x - 3x; 1x - 5x
Réglage	Motorized
Adjustable divergence	YES
Overall transmission	>97% (MEX1-3-HP), >95% (MEX1-5-HP)
Matériau du boîtier	Aluminium anodisé
LIDT	>10 J/cm² for 10 ns pulses @1064 nm
Control interfaces	USB or RS232
Max laser power, W	Up to 200 W @1030 nm, 500 fs, 1 MHz
Type de contrôleur	Integrated
Ecart de température de fonctionnement (°C)	10 to 40

Description

Détails

High power motorized laser beam expanders MEX series are used to increase the laser beam diameter and adjust divergence. The optical design is dedicated for high power ultrafast femtosecond laser applications. These magnification (zoom) beam expanders are designed for the required wavelength and each type of our beam expanders has motorized divergence adjustability. Standard or custom-made beam expanders feature a unique mechanical closed-loop sliding-lens design ensuring high pointing stability and minimal dimensions.

What’s in the box?

Motorized laser beam expander MEX-HP
USB key with software and manual
Power supply DC 12V
USB (1.5 m) cable

Des documents

MEX1-3-HP Drawing Size: (207.94 KB)
MEX1-5-HP Drawing Size: (291.27 KB)

Fonctionnalités

High power optical design (up to 200 W @ 1030 nm, 500 fs, 1 Mhz)
No internal reflections on optical elements
High beam pointing stability <0,2 mrad
All-in-one design with integrated controller
Two lens simultaneous movement assuring no misfocus
Absolute encoder (both lenses)
Fused silica optical elements
Diffraction limited performance for all magnifications

Applications

Precise laser micromachining
High power laser beam management
Research

Name	Stabilité de pointage	Expansion	Longueur d'onde de conception, nm	Input aperture, mm	Clear output aperture	Recommended Max Input beam Diameter (1/e2), mm	Dimensions, mm	Prix	Quantité
MEX-HP1-3-0266-02	<0.2 mrad	1.0x - 3.0x continuous	257-266	Ø11.5	Ø28	Ø7 mm (1x) - Ø6 mm (3x)	60 x 60 x 207	Request a quote	✉
MEX-HP1-3-0266-05	<0.5 mrad	1.0x - 3.0x continuous	257-266	Ø11.5	Ø28	Ø7 mm (1x) - Ø6 mm (3x)	60 x 60 x 207	Request a quote	✉
MEX-HP1-3-0355-02	<0.2 mrad	1.0x - 3.0x continuous	343-355	Ø11.5	Ø28	Ø7 mm (1x) - Ø6 mm (3x)	63 x 60 x 207	4 120,00 $US
MEX-HP1-3-0355-05	<0.5 mrad	1.0x - 3.0x continuous	343-355	Ø11.5	Ø28	Ø7 mm (1x) - Ø6 mm (3x)	60 x 60 x 207	3 890,00 $US
MEX-HP1-3-0400-02	<0.2 mrad	1.0x - 3.0x continuous	390-410	Ø11.5	Ø28	Ø7 mm (1x) - Ø6 mm (3x)	67 x 60 x 207	3 890,00 $US
MEX-HP1-3-0400-05	<0.5 mrad	1.0x - 3.0x continuous	390-410	Ø11.5	Ø28	Ø7 mm (1x) - Ø6 mm (3x)	60 x 60 x 207	3 660,00 $US
MEX-HP1-3-0400-0800-02	<0.2 mrad	1.0x - 3.0x continuous	400 + 800	Ø11.5	Ø28	Ø7 mm (1x) - Ø6 mm (3x)	68 x 60 x 207	4 120,00 $US
MEX-HP1-3-0400-0800-05	<0.5 mrad	1.0x - 3.0x continuous	400 + 800	Ø11.5	Ø28	Ø7 mm (1x) - Ø6 mm (3x)	60 x 60 x 207	3 890,00 $US
MEX-HP1-3-0532-02	<0.2 mrad	1.0x - 3.0x continuous	515-532	Ø11.5	Ø28	Ø7 mm (1x) - Ø6 mm (3x)	62 x 60 x 207	3 890,00 $US
MEX-HP1-3-0532-0355-02	<0.2 mrad	1.0x - 3.0x continuous	515-532 + 343-355	Ø11.5	Ø28	Ø7 mm (1x) - Ø6 mm (3x)	65 x 60 x 207	4 240,00 $US
MEX-HP1-3-0532-0355-05	<0.5 mrad	1.0x - 3.0x continuous	515-532 + 343-355	Ø11.5	Ø28	Ø7 mm (1x) - Ø6 mm (3x)	60 x 60 x 207	4 000,00 $US
MEX-HP1-3-0532-05	<0.5 mrad	1.0x - 3.0x continuous	515-532	Ø11.5	Ø28	Ø7 mm (1x) - Ø6 mm (3x)	60 x 60 x 207	3 660,00 $US
MEX-HP1-3-0800-02	<0.2 mrad	1.0x - 3.0x continuous	760-840	Ø11.5	Ø28	Ø7 mm (1x) - Ø6 mm (3x)	66 x 60 x 207	3 890,00 $US
MEX-HP1-3-0800-05	<0.5 mrad	1.0x - 3.0x continuous	760-840	Ø11.5	Ø28	Ø7 mm (1x) - Ø6 mm (3x)	60 x 60 x 207	3 660,00 $US
MEX-HP1-3-1064-02	<0.2 mrad	1.0x - 3.0x continuous	1030-1064	Ø11.5	Ø28	Ø7 mm (1x) - Ø6 mm (3x)	61 x 60 x 207	3 890,00 $US
MEX-HP1-3-1064-05	<0.5 mrad	1.0x - 3.0x continuous	1030-1064	Ø11.5	Ø28	Ø7 mm (1x) - Ø6 mm (3x)	60 x 60 x 207	3 660,00 $US
MEX-HP1-3-1064-0532-02	<0.2 mrad	1.0x - 3.0x continuous	1030-1064 + 515-532	Ø11.5	Ø28	Ø7 mm (1x) - Ø6 mm (3x)	64 x 60 x 207	4 120,00 $US
MEX-HP1-3-1064-0532-05	<0.5 mrad	1.0x - 3.0x continuous	1030-1064 + 515-532	Ø11.5	Ø28	Ø7 mm (1x) - Ø6 mm (3x)	60 x 60 x 207	3 890,00 $US
MEX-HP1-5-0266-02	<0.2 mrad	1.0x - 5.0x continuous	257-266	Ø11.5	Ø24	Ø7 mm (1x) - Ø3.3 mm (5x)	60 x 60 x 250	Request a quote	✉
MEX-HP1-5-0266-05	<0.5 mrad	1.0x - 5.0x continuous	257-266	Ø11.5	Ø24	Ø7 mm (1x) - Ø3.3 mm (5x)	60 x 60 x 250	Request a quote	✉
MEX-HP1-5-0355-02	<0.2 mrad	1.0x - 5.0x continuous	343-355	Ø11.5	Ø24	Ø7 mm (1x) - Ø3.3 mm (5x)	60 x 60 x 250	4 470,00 $US
MEX-HP1-5-0355-05	<0.5 mrad	1.0x - 5.0x continuous	343-355	Ø11.5	Ø24	Ø7 mm (1x) - Ø3.3 mm (5x)	60 x 60 x 250	4 240,00 $US
MEX-HP1-5-0400-02	<0.2 mrad	1.0x - 5.0x continuous	390-410	Ø11.5	Ø24	Ø7 mm (1x) - Ø3.3 mm (5x)	60 x 60 x 250	4 240,00 $US
MEX-HP1-5-0400-05	<0.5 mrad	1.0x - 5.0x continuous	390-410	Ø11.5	Ø24	Ø7 mm (1x) - Ø3.3 mm (5x)	60 x 60 x 250	4 000,00 $US
MEX-HP1-5-0400-0800-02	<0.2 mrad	1.0x - 5.0x continuous	400 + 800	Ø11.5	Ø24	Ø7 mm (1x) - Ø3.3 mm (5x)	60 x 60 x 250	4 470,00 $US
MEX-HP1-5-0400-0800-05	<0.5 mrad	1.0x - 5.0x continuous	400 + 800	Ø11.5	Ø24	Ø7 mm (1x) - Ø3.3 mm (5x)	60 x 60 x 250	4 240,00 $US
MEX-HP1-5-0532-02	<0.2 mrad	1.0x - 5.0x continuous	515-532	Ø11.5	Ø24	Ø7 mm (1x) - Ø3.3 mm (5x)	60 x 60 x 250	4 240,00 $US
MEX-HP1-5-0532-0355-02	<0.2 mrad	1.0x - 5.0x continuous	515-532 + 343-355	Ø11.5	Ø24	Ø7 mm (1x) - Ø3.3 mm (5x)	60 x 60 x 250	4 590,00 $US
MEX-HP1-5-0532-0355-05	<0.5 mrad	1.0x - 5.0x continuous	515-532 + 343-355	Ø11.5	Ø24	Ø7 mm (1x) - Ø3.3 mm (5x)	60 x 60 x 250	4 350,00 $US
MEX-HP1-5-0532-05	<0.5 mrad	1.0x - 5.0x continuous	515-532	Ø11.5	Ø24	Ø7 mm (1x) - Ø3.3 mm (5x)	60 x 60 x 250	4 000,00 $US
MEX-HP1-5-0800-02	<0.2 mrad	1.0x - 5.0x continuous	760-840	Ø11.5	Ø24	Ø7 mm (1x) - Ø3.3 mm (5x)	60 x 60 x 250	4 240,00 $US
MEX-HP1-5-0800-05	<0.5 mrad	1.0x - 5.0x continuous	760-840	Ø11.5	Ø24	Ø7 mm (1x) - Ø3.3 mm (5x)	60 x 60 x 250	4 000,00 $US
MEX-HP1-5-1064-02	<0.2 mrad	1.0x - 5.0x continuous	1030-1064	Ø11.5	Ø24	Ø7 mm (1x) - Ø3.3 mm (5x)	60 x 60 x 250	4 240,00 $US
MEX-HP1-5-1064-05	<0.5 mrad	1.0x - 5.0x continuous	1030-1064	Ø11.5	Ø24	Ø7 mm (1x) - Ø3.3 mm (5x)	60 x 60 x 250	4 000,00 $US
MEX-HP1-5-1064-0532-02	<0.2 mrad	1.0x - 5.0x continuous	1030-1064 + 515-532	Ø11.5	Ø24	Ø7 mm (1x) - Ø3.3 mm (5x)	60 x 60 x 250	4 470,00 $US
MEX-HP1-5-1064-0532-05	<0.5 mrad	1.0x - 5.0x continuous	1030-1064 + 515-532	Ø11.5	Ø24	Ø7 mm (1x) - Ø3.3 mm (5x)	60 x 60 x 250	4 240,00 $US
