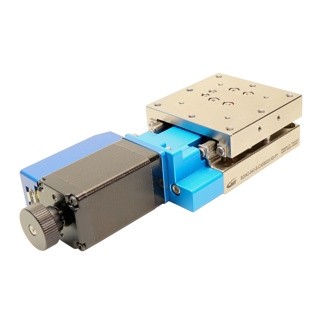

Motorized Linear Stages CS Series

Plus de vues

Motorized Linear Stages CS Series

The CXS series linear translation stage has a compact and cost-optimized design. The difference to other motorized positioning stages is that the entire body and the guide elements are made of a stainless steel profile, which means that separate guides are not required. This has the decisive advantage of higher accuracy and, above all, improved thermal stability.

Material Stainless Steel
Type de moteur 2 Phase Stepper
Vitesse maximale, mm/s 20
Mécanisme de guidage Linear Ball
Pas de vis, mm 1mm
Répétabilité <1 μm
Précision de positionnement <5 μm
Missed Step <1 μm
Parallélisme dynamique, μm 10 μm
Description

Détails

The CXS series linear translation stage has a compact and cost-optimized design. The difference to other motorized positioning stages is that the entire body and the guide elements are made of a stainless steel profile, which means that separate guides are not required. This has the decisive advantage of higher accuracy and, above all, improved thermal stability.

The motorized positioning axes of our CXS series have a preloaded ball screw and a ball cage, which allows short and precise traverse paths. In combination with the optionally available closed-loop stepper motor, repeat accuracies of less than 1 µm and a maximum speed of up to 60 mm/s can be achieved.

The motorized stages are equipped with the new Ethernet connector Harting ix Industrial® The robust and miniaturized Ethernet interface replaces the RJ45 connection and ensures that your plug connection is held securely.

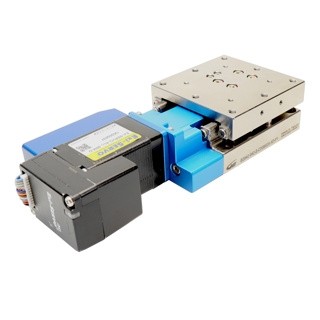

Combining our precision translation stages with Fastech closed-loop stepper motors increases repeatability and guarantees more accurate positioning. The system continuously checks the target/actual position and compensates for any mechanical faults or step losses that may occur. This ensures that the motorized linear stage always reaches and holds the desired position.

The motorized stage can be easily connected to your system via the available interfaces such as Ethernet, RS485 (USB) or EtherCAT. All the necessary parameters are already preset so that closed-loop operation is possible immediately without any further programming knowledge. Simplifying motion control - with free software the compact linear stages can be controlled easily, or you can create your own programs using standard programs such as Matlab, LabView, C++, etc., for which libraries and examples are available.

Des documents
View FileCXS50xxx-P2-Drawing    Size: (131.77 KB)
View FileCXS60xxx-P2-Drawing    Size: (180.79 KB)
View FileCXS80xxx-P2-Drawing    Size: (189.85 KB)
View FileDatasheet_GMT_CXS    Size: (541.76 KB)
Fonctionnalités

The advantages of the GMT high Precision motorized stage systems:

  • Cost-optimized concept
  • Repeatability < 1µm
  • Ball screw for high cycles and speeds
  • Made of stainless steel
  • High thermal stability
  • Can be combined XY- or XYZ stages
  • 2-phase stepper motor from Nanotec
  • Optional closed-loop stepper motors, optionally with integrated or external controller
  • Harting ix connector® – for a secure connection
  • Optical limit switches
  • Easy to use - Plug & Play
  • Compatible with other manufacturers
Applications
  • For use in research
  • laser and measurement technology
  • in laboratories and in the industrial sector
  • for the automation of precise and complex processes
Name Taille de la plate-forme, mmCourse linéaireMaximum loadMasse (kg) Prix Quantité

CXS5020

50 x 5020 mm60N0.57 Request a quote

CXS5030

50 x 5030 mm60N0.72 Request a quote

CXS6020

60 x 6020 mm70N0.75 Request a quote

CXS6030

60 x 6030 mm70N0.8 Request a quote

CXS6050

60 x 6050 mm70N1.11 Request a quote

CXS8020

80 x 8020 mm80N1.15 Request a quote

CXS8030

80 x 8030 mm80N1.2 Request a quote

CXS8050

80 x 8050 mm80N1.35 Request a quote
