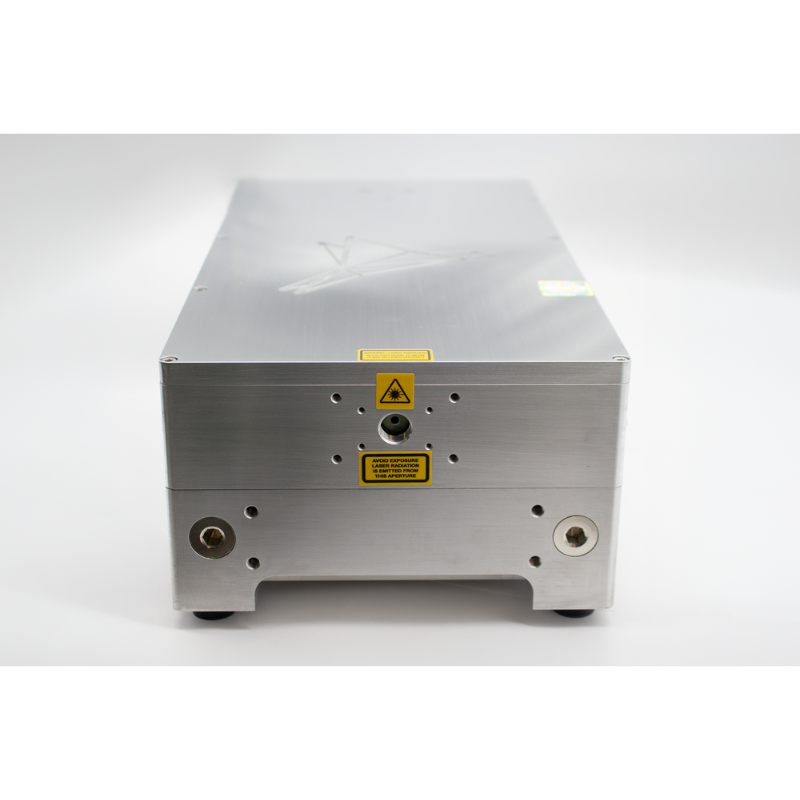

SL 349-0300

Single Frequency Continuous Wave DPSS Laser, 349 nm, Output power 300 mW

Output power, mW	300
Output Beam Diameter, TEM00, mm	1.0 - 1.5
Beam Height, mm	90
Beam quality	M² ≤1.1
Warm up time	<15
Laser Head (L x W x H)	425 x 200 x 123 mm

Description

Details

The Skylark 349 laser offers DPSS CW single frequency UV operation, delivering up to 400 mW output power, outstanding spectral properties, ultra-stable output, and extremely low noise from a compact footprint and a versatile software package - making it suitable for system integration and a wide range of demanding applications.

Documents

349 Micro Air Drawing Size: (141 KB)

Features

from 50 to 400 mW output power at 349 nm SLM
feedback locked Single Longitudinal Mode CW operation
very low noise performance, < 0.3% rms
excellent beam quality from a compact footprint
lowest power consumption for given output
Plug-in USB Connectivity
Remote diagnostics

Applications

Raman spectroscopy, Brillouin scattering, Flow cytometry, Optical manipulation, Interferometry, Semiconductor inspection, Wafer fabrication, Lithography, Confocal microscopy, Biomedical/Bioengineering, Fluorescence, Disc mastering, Optical grating Mastering, Diffraction grating mastering, High precision optics, and more.
