Atténuateurs de puissance laser avancés

Plus de vues

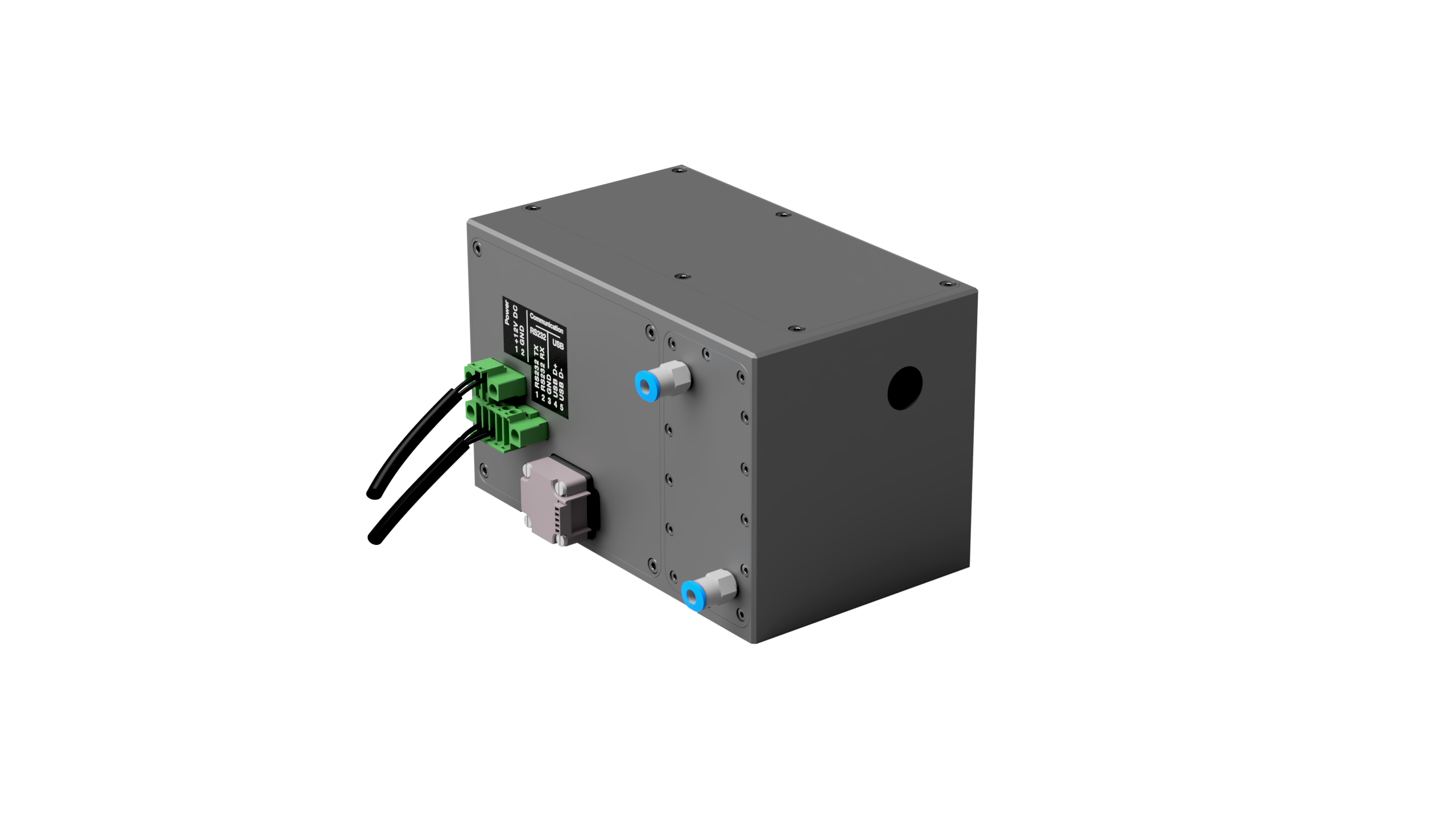

Advanced Motorised Laser Power attenuator LPA-U is a unique device designed for unpolarised laser power control with integrated controller and absolute position encoder.

The LPA-U is produced in the UV, visible and NIR spectral ranges, from 343 nm to 2000 nm and 10,6 um. This device is combined with the unique mechanical robust design which ensures high repeatability.

Ouverture utile, mm	Ø12
Configuration	Angular filter + AR/AR coated Fused silica window
Polarisation	adapté aux faisceaux polarisés et non polarisés
Seuil de dommage laser, J/cm²	>10 [J/cm²] (10 ns @ 1064 nm)
Open-close time	<500
Précision	±0.005 deg (±18 arcsec, 0.087 mrad, less than ±0.01%)
Résolution	175,543 μsteps in full rotation (0.002 deg, 7.2 arcsec, 0.035 mrad)
Codeur de position absolue	OUI
Bande passante, nm	5 - 10
Dimensions, mm	85 x 93.5 x 135
Type de contrôleur	intégré
Communication	Using ASCII commands described in manual
Software platform	LPA software
Input voltage from external power supply	DC 12 V
Control interfaces	USB, RS232
Vitesse de transmission	Up to 115,200 bits/s (RS-232); full speed (USB 2.0)
Working Temperatures, °C	10 to 40
Mounting Thread	M6 on both sides, M4 on the bottom side
Matériau du boîtier	Aluminium anodisé

Description

Détails

Optical components of the LPA-U are made for high LIDT applications and provide stable and reliable performance even when using them with high power lasers in industrial applications.
The secondary laser beam from the laser power attenuator unit is rejected to an external beam dump. Water-cooling is used for avoiding any thermal effects or stress in the housing of the LPA-U device.

What’s in the box?

Integrated motorized laser power attenuator
Software
Power supply DC 12V
USB (1.5 m) cable

Available accessories

RS232 cables: 1.8 m, 5 m, 10 m, 15m

Des documents

LPA-U Drawing Size: (359.09 KB)

Fonctionnalités

Designed for unpolarised laser beam
Up to 200W of average laser power
Beam offset compensated
Integrated controller
Absolute position encoder - no homing required
High accuracy ±0,005 deg
Robust design with water-cooling
Clear aperture - ø12 mm
Fast adjustment - less than 0,5 sec (min to max)
High damage threshold: up to 10J/cm2 (10 ns @ 1064 nm)

Applications

Precise laser micromachining
Laser power stabilization
Research

Name	Longueur d'onde de conception, nm	Attenuation range	LIDT	Contrast	Prix	Quantité
LPA-U-1064	1064	2.5 - 93 %	10 J/cm² (10 ns @ 1064 nm)	1:40	4 050,00 $US
LPA-U-1070	1070	2 - 95 %	10 J/cm² (10 ns @ 1064 nm)	1:50	4 050,00 $US
