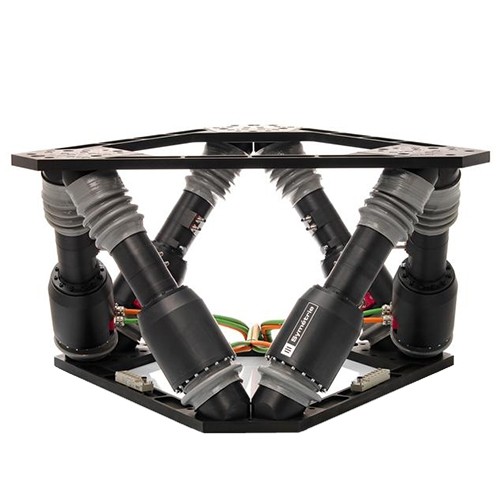

HIGH ACCURACY POSITIONING HEXAPOD


SURES hexapod is a very high accurate and stiff positioning system. It allows the adjustment and the set up of objects of up to 500 kg with high resolution and low cross-coupling (parasitic motions).

Etendue Tx, Ty (mm) ± 8
Etendue Tz (mm) ± 6
Etendue Rx, Ry (deg) ± 1
Etendue Rz (deg) ± 1
Résolution Tx, Ty, Tz (μm) 0.1
Résolution Rx, Ry, Rz (μrad) 1.5
Répétabilité Tx, Ty (μm) ± 0.5
Répétabilité Tz (μm) ± 0.25
Répétabilité Rx, Ry, Rz (μrad) ± 1
Capacité de charge utile (kg) up to 500 (with orientation from 0° to 90°)
Type de moteur Brushless motor with absolute encoder
Ecart de température de fonctionnement (°C) -20 to + 40
Niveau d'humidité (%) up to 100
Matériaux Aluminum, steel, stainless steel
Taille plate-forme mobile (mm) Ø690
Hauteur en position médiane (mm) 360
Masse (kg) 117
Longueur de câble (m) 10 (longer on request)
Type de contrôleur ALPHA custom
Interface Ethernet, USB
Source de courant 110-240 VAC / 50-60 Hz
Description

Détails

SURES hexapod is particularly adapted to the fields of space, astronomy and telescopes. For example it can align M2 and M3 mirrors on ground-based telescopes to realign them correctly to compensate the deformation of the structure due to gravity changes and temperature variations during the night.

The mechanics and electronic components of SURES hexapod are designed to work in cold environment as most of ground-based telescopes are installed on top of mountains in high altitude.

Applications

► Positioning of M2 or M3 mirror on optical telescope

► Positioning of subreflector on radio telescope

► Optical adjustment
