High Contrast Thin Film Polarizers

These TFP's are designed to operate at Brewster angle (~55,4deg) and give low loss (high Tp, low absorption & scatter) and high extinction ratio.

Ouverture utile, %	>90
Tolérances de diamètre, mm	+0.0 / -0.12
Seuil de dommage laser, J/cm²	>10J/cm² for 10 ns pulses @ 1064 nm typical
Parallelism, arcsec	<30 arcsec
Matériau du substrat	UVFS
Qualité de surface, s-d	20/10
Tolérance d'épaisseur, mm	±0.2 mm

Description

Détails

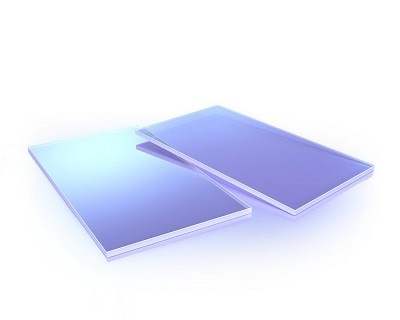

These high contrast Thin Film Polarizers (TFP) are made using advanced Ion Beam Sputtering (IBS) coating technology. UVFS dielectric coated high contrast thin film polarizers separate the s- and p-polarization components of high energy laser beams. Due to very low losses they are perfect for intra and extra cavity usage.

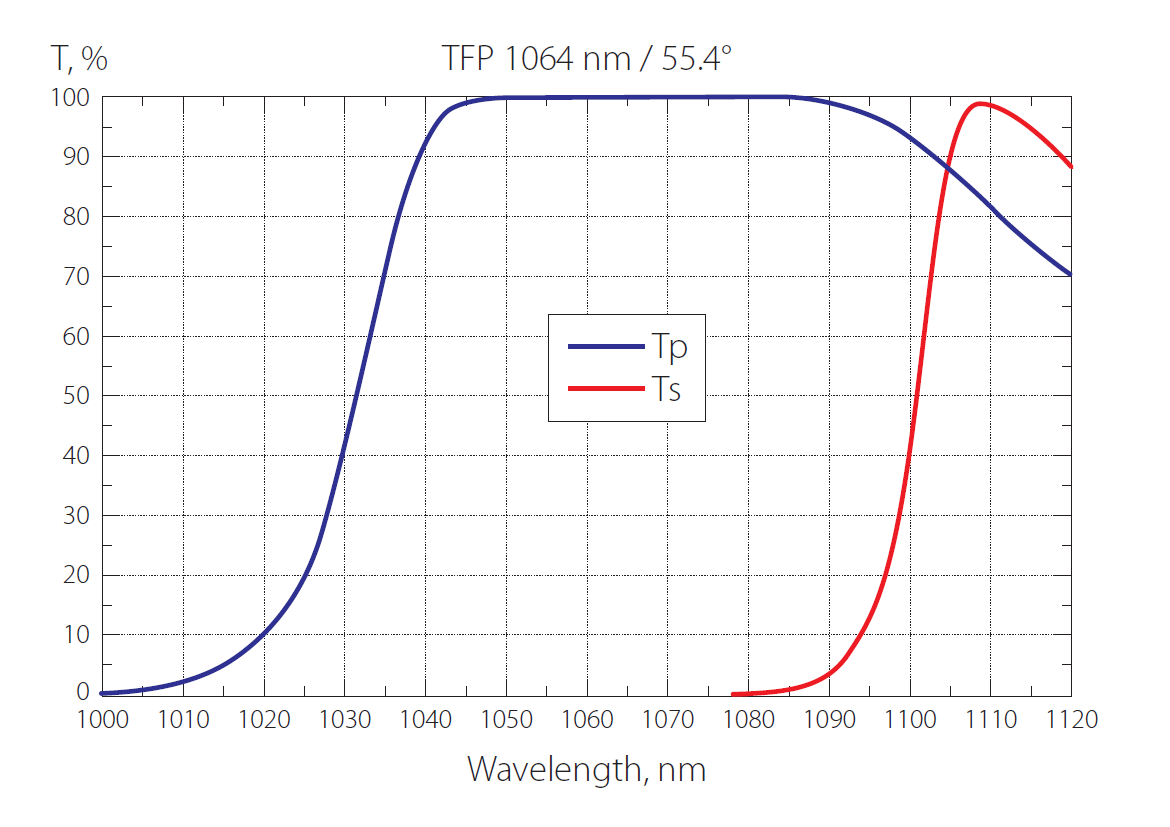

Typical polarization ratio of these polarizers is well above 1000:1 (T_p:T_s). For optimal performance, high contrast Thin Film Polarizer should be mounted in an appropriate holder alowing angular adjustment.

Fonctionnalités

Made using IBS technology
T_p:T_s >1000:1
High T_p, low absorption & scattering
No aging effects due to the negligible porosity of the coatings

Name	Coating Reflected GDD (s-pol)	Coating Transmitted GDD (p-pol)	Dimensions, mm	Transmission p-pol,%	Transmission s-pol, %	Longueur d'onde, nm	Prix	Quantité
2-HCTFP-0343-0254	GDD<50fs²	GDD<100fs²	Ø25.4 x 5	>97	<0.3	343	275,00 $US
2-HCTFP-0343-2040	GDD<50fs²	GDD<100fs²	20 x 40 x 5	>97	<0.3	343	320,00 $US
2-HCTFP-0355-0254			Ø25.4 x 5	>97	<0.3	355	275,00 $US
2-HCTFP-0355-2040			20 x 40 x 5	>97	<0.3	355	320,00 $US
2-HCTFP-0400-0254	GDD<100fs²	GDD<200fs²	Ø25.4 x 5	>98	<0.2	400	260,00 $US
2-HCTFP-0400-2040	GDD<100fs²	GDD<200fs²	20 x 40 x 5	>98	<0.2	400	300,00 $US
2-HCTFP-0515-0254	GDD<100fs²	GDD<300fs²	Ø25.4 x 5	>99	<0.1	515	260,00 $US
2-HCTFP-0515-2040	GDD<100fs²	GDD<300fs²	20 x 40 x 5	>99	<0.1	515	300,00 $US
2-HCTFP-0532-0254			Ø25.4 x 5	>99	<0.1	532	260,00 $US
2-HCTFP-0532-2040			20 x 40 x 5	>99	<0.1	532	300,00 $US
2-HCTFP-0800-0254	GDD<200fs²	GDD<400fs²	Ø25.4 x 5	>99	<0.1	800	275,00 $US
2-HCTFP-0800-2040	GDD<200fs²	GDD<400fs²	20 x 40 x 5	>99	<0.1	800	320,00 $US
2-HCTFP-1030-0254	GDD<200fs²	GDD<500fs²	Ø25.4 x 5	>99	<0.1	1030	300,00 $US
2-HCTFP-1030-2040	GDD<200fs²	GDD<500fs²	20 x 40 x 5	>99	<0.1	1030	345,00 $US
2-HCTFP-1064-0254			Ø25.4 x 5	>99	<0.1	1064	300,00 $US
2-HCTFP-1064-2040			20 x 40 x 5	>99	<0.1	1064	345,00 $US
