Non Polarizing Beamsplitter Cubes

Plus de vues

Non Polarizing Beamsplitter Cubes

Non-polarizing beamsplitter cubes for 50/50 split ratio.

Absorption, %	<10%
Ouverture utile, %	>90%
Coating Type	Hybrid
Dimension Tolerances, mm	+0.0/-0.2 mm
Seuil de dommage laser, J/cm²	>0,3 J/cm2 for 10 ns pulses @1064nm
Material	BK7
Chanfreins de protection	<0,25 mm x 45 deg
(Rs-Rp), %	<5 %
Planéité de surface	<λ/4 at 632.8 nm
Qualité de surface, s-d	40/20 S/D

Description

Détails

Cubes are constructed by cementing two precision right angle prisms together with metallic-dielectric coating on the hypotenuse surface. Absorption loss to the coating is ~10%, but due to the metallic material of the coating cubes do not change polarization of the incident beam!

Fonctionnalités

All faces are Antireflection coated
Low polarization dependence

Name	Beamsplitting Ratio, %	Dimensions, mm	Longueur d'onde, nm	Prix	Quantité
1-NC-1-0550	Tp=Ts=45±5%;Rp=Rs=45±5%	5 x 5 x 5	450 - 680	136,50 $US
1-NC-1-1250	Tp=Ts=45±5%;Rp=Rs=45±5%	12.7 x 12.7 x 12.7	450 - 680	156,00 $US
1-NC-1-2050	Tp=Ts=45±5%;Rp=Rs=45±5%	20 x 20 x 20	450 - 680	169,00 $US
1-NC-2-0550	Tp=Ts=45±5%;Rp=Rs=45±5%	5 x 5 x 5	532	123,50 $US

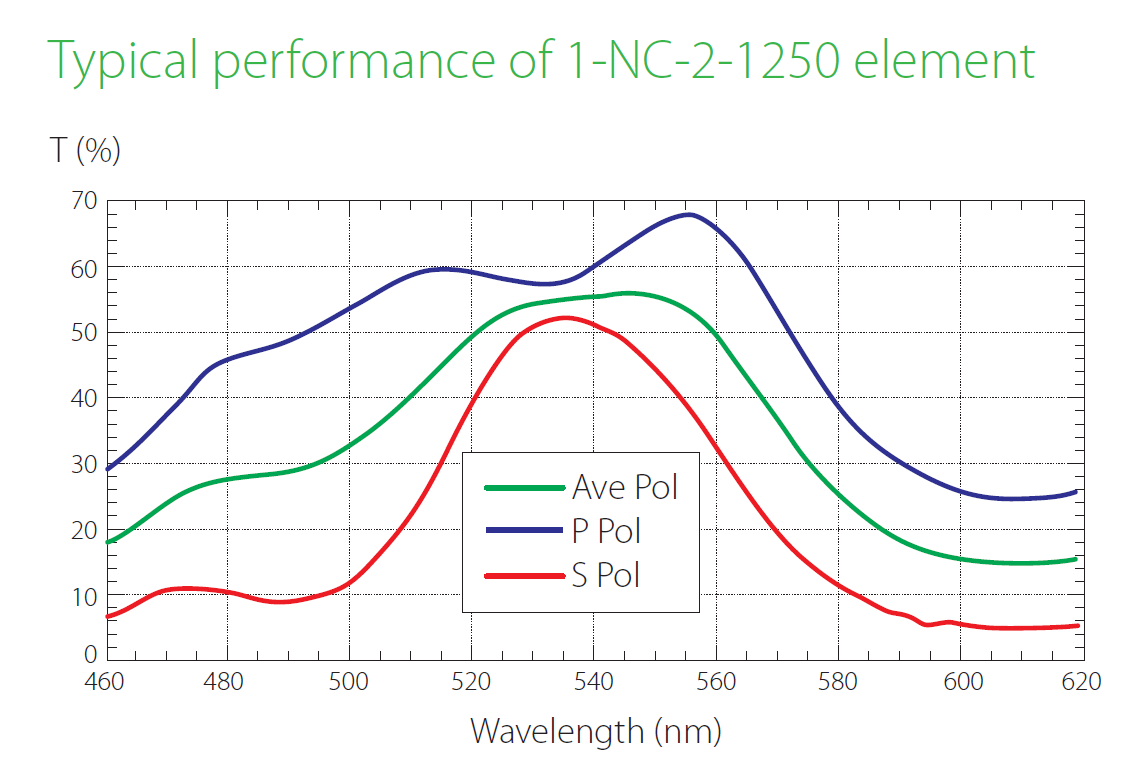

1-NC-2-1250	Tp=Ts=45±5%;Rp=Rs=45±5%	12.7 x 12.7 x 12.7	532	136,50 $US
1-NC-2-2050	Tp=Ts=45±5%;Rp=Rs=45±5%	20 x 20 x 20	532	143,00 $US
1-NC-3-0550	Tp=Ts=45±5%;Rp=Rs=45±5%	5 x 5 x 5	700 - 1000	136,50 $US
1-NC-3-1250	Tp=Ts=45±5%;Rp=Rs=45±5%	12.7 x 12.7 x 12.7	700 - 1000	156,00 $US
1-NC-3-2050	Tp=Ts=45±5%;Rp=Rs=45±5%	20 x 20 x 20	700 - 1000	169,00 $US
1-NC-4-0550	Tp=Ts=45±5%;Rp=Rs=45±5%	5 x 5 x 5	1064	123,50 $US
1-NC-4-1250	Tp=Ts=45±5%;Rp=Rs=45±5%	12.7 x 12.7 x 12.7	1064	136,50 $US
1-NC-4-2050	Tp=Ts=45±5%;Rp=Rs=45±5%	20 x 20 x 20	1064	143,00 $US
1-NC-5-0550	Tp=Ts=45±5%;Rp=Rs=45±5%	5 x 5 x 5	900 - 1200	136,50 $US
1-NC-5-1250	Tp=Ts=45±5%;Rp=Rs=45±5%	12.7 x 12.7 x 12.7	900 - 1200	156,00 $US
1-NC-5-2050	Tp=Ts=45±5%;Rp=Rs=45±5%	20 x 20 x 20	900 - 1200	169,00 $US
