Metallic Coated Round Optics

Metallic mirrors and partial reflectors

Ouverture utile, %	>90%
Seuil de dommage laser, J/cm²	Protected Aluminum: >0.25 J/cm² for 11 ns pulses @1064 nm Protected Silver: >1.8 J/cm² for 11 ns pulses @1064 nm Protected Gold: >0.9 J/cm² for 11 ns pulses @1064 nm
Substrate Dimension Tolerance, mm	+0.0/-0.1 mm
Matériau du substrat	BK7, UVFS for UV enhanced mirrors
Planéité de surfac (apès traitement)	L/4
Surface Quality ( After Coating), Scratch &Dig	40/20 S/D

Description

Détails

Laserand offers gold, silver, aluminum, chrome and copper metallic high reflection and partial reflection coated optics. For coatings properties please refer to Coatings section

Fonctionnalités

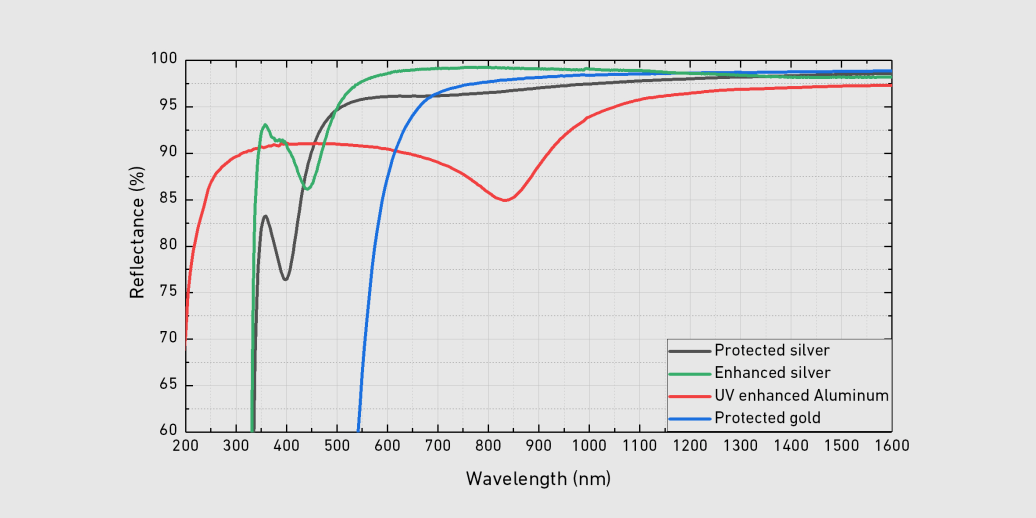

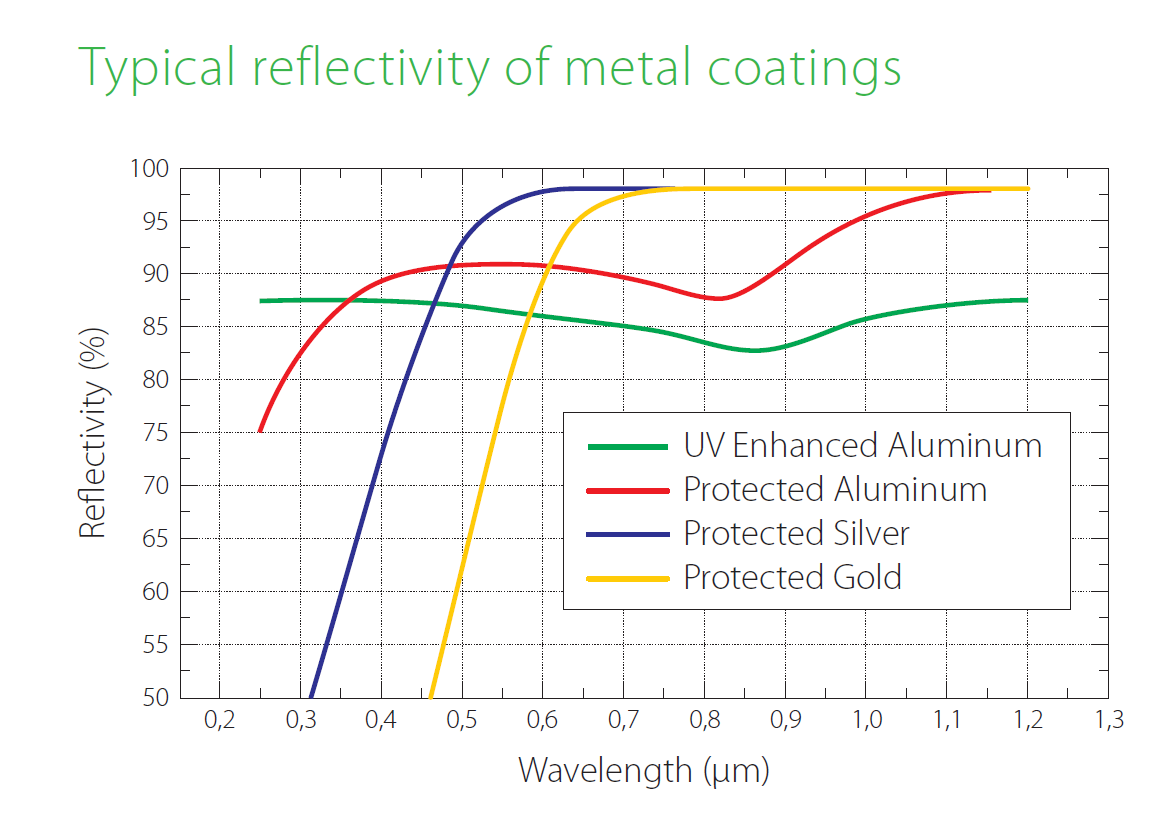

Protected Gold provides excellent, broadband infrared high reflectance
Protected Silver provides higher reflectance than aluminum throughout the visible and near IR
Protected Aluminum is economical solution for VIS applications
UV enhanced Aluminum provides good reflectance over a wide range and are mainly used in UV applications

Name	Coating Type	Dimensions, mm	Type	Prix	Quantité
1-OS-1-0127-6-[9AG0]	Protected Silver Ravg > 96 % @ 550 nm - IR	Ø12.7x6	FLAT/FLAT	39,00 $US
1-OS-1-0127-6-[9AL0]	Protected Aluminum Ravg > 85 % @ 400 nm - IR	Ø12.7x6	FLAT/FLAT	32,50 $US
1-OS-1-0127-6-[9AU0]	Protected Gold Ravg > 96 % @ 750 nm - IR	Ø12.7x6	FLAT/FLAT	48,00 $US
1-OS-1-0254-6-[9AG0]	Protected Silver Ravg > 96 % @ 550 nm - IR	Ø25.4x6	FLAT/FLAT	44,20 $US
1-OS-1-0254-6-[9AL0]	Protected Aluminum Ravg > 85 % @ 400 nm - IR	Ø25.4x6	FLAT/FLAT	36,40 $US
1-OS-1-0254-6-[9AU0]	Protected Gold Ravg > 96 % @ 750 nm - IR	Ø25.4x6	FLAT/FLAT	62,40 $US
1-OS-1-0508-8-[9AG0]	Protected Silver Ravg > 96 % @ 550 nm - IR	Ø50.8x8	FLAT/FLAT	96,20 $US
1-OS-1-0508-8-[9AL0]	Protected Aluminum Ravg > 85 % @ 400 nm - IR	Ø50.8x8	FLAT/FLAT	75,40 $US
1-OS-1-0508-8-[9AU0]	Protected Gold Ravg > 96 % @ 750 nm - IR	Ø50.8x8	FLAT/FLAT	117,00 $US
1-OS-1-0762-8-[9AG0]	Protected Silver Ravg > 96 % @ 550 nm - IR	Ø76.2x8	FLAT/FLAT	130,00 $US
1-OS-1-0762-8-[9AL0]	Protected Aluminum Ravg > 85 % @ 400 nm - IR	Ø76.2x8	FLAT/FLAT	93,60 $US
1-OS-1-0762-8-[9AU0]	Protected Gold Ravg > 96 % @ 750 nm - IR	Ø76.2x8	FLAT/FLAT	182,00 $US
1-OS-2-0127-6-[9AL1]	UV enhanced Aluminum Ravg > 85 % @ 250 nm - 600 nm	Ø12.7x6	FLAT/FLAT	39,00 $US
1-OS-2-0254-5-[9AL1]	UV enhanced Aluminum Ravg > 85 % @ 250 nm - 600 nm	Ø25.4x5	FLAT/FLAT	44,20 $US
1-OS-2-0508-6-[9AL1]	UV enhanced Aluminum Ravg > 85 % @ 250 nm - 600 nm	Ø50.8x6	FLAT/FLAT	96,20 $US
1-OS-2-0762-6-[9AL1]	UV enhanced Aluminum Ravg > 85 % @ 250 nm - 600 nm	Ø76.2x6	FLAT/FLAT	130,00 $US
1-PCV-1-D254-[9AG0]	Protected Silver Ravg > 96 % @ 550 nm - IR	Ø25.4	Plano-Concave, ROC=-50 mm	54,60 $US
1-PCV-1-D254-[9AL0]	Protected Aluminum Ravg > 85 % @ 400 nm - IR	Ø25.4	Plano-Concave, ROC=-50 mm	46,80 $US
1-PCV-1-D254-[9AU0]	Protected Gold Ravg > 96 % @ 750 nm - IR	Ø25.4	Plano-Concave, ROC=-50 mm	72,80 $US
1-PCV-1-F254-[9AG0]	Protected Silver Ravg > 96 % @ 550 nm - IR	Ø25.4	Plano-Concave, ROC=-100 mm	54,60 $US
1-PCV-1-F254-[9AL0]	Protected Aluminum Ravg > 85 % @ 400 nm - IR	Ø25.4	Plano-Concave, ROC=-100 mm	46,80 $US
1-PCV-1-F254-[9AU0]	Protected Gold Ravg > 96 % @ 750 nm - IR	Ø25.4	Plano-Concave, ROC=-100 mm	72,80 $US
1-PCV-1-J254-[9AG0]	Protected Silver Ravg > 96 % @ 550 nm - IR	Ø25.4	Plano-Concave, ROC=-200 mm	54,60 $US
1-PCV-1-J254-[9AL0]	Protected Aluminum Ravg > 85 % @ 400 nm - IR	Ø25.4	Plano-Concave, ROC=-200 mm	46,80 $US
1-PCV-1-J254-[9AU0]	Protected Gold Ravg > 96 % @ 750 nm - IR	Ø25.4	Plano-Concave, ROC=-200 mm	72,80 $US
1-PCV-1-L254-[9AG0]	Protected Silver Ravg > 96 % @ 550 nm - IR	Ø25.4	Plano-Concave, ROC=-500 mm	54,60 $US
1-PCV-1-L254-[9AL0]	Protected Aluminum Ravg > 85 % @ 400 nm - IR	Ø25.4	Plano-Concave, ROC=-500 mm	46,80 $US
1-PCV-1-L254-[9AU0]	Protected Gold Ravg > 96 % @ 750 nm - IR	Ø25.4	Plano-Concave, ROC=-500 mm	72,80 $US
1-PCV-1-M254-[9AG0]	Protected Silver Ravg > 96 % @ 550 nm - IR	Ø25.4	Plano-Concave, ROC=-1000 mm	54,60 $US
1-PCV-1-M254-[9AL0]	Protected Aluminum Ravg > 85 % @ 400 nm - IR	Ø25.4	Plano-Concave, ROC=-1000 mm	46,80 $US
1-PCV-1-M254-[9AU0]	Protected Gold Ravg > 96 % @ 750 nm - IR	Ø25.4	Plano-Concave, ROC=-1000 mm	72,80 $US
1-PCV-2-D254-[9AL1]	UV enhanced Aluminum Ravg > 85 % @ 250 nm - 600 nm	Ø25.4	Plano-Concave, ROC=-50 mm	54,60 $US
1-PCV-2-F254-[9AL1]	UV enhanced Aluminum Ravg > 85 % @ 250 nm - 600 nm	Ø25.4	Plano-Concave, ROC=-100 mm	54,60 $US
1-PCV-2-J254-[9AL1]	UV enhanced Aluminum Ravg > 85 % @ 250 nm - 600 nm	Ø25.4	Plano-Concave, ROC=-200 mm	54,60 $US
1-PCV-2-L254-[9AL1]	UV enhanced Aluminum Ravg > 85 % @ 250 nm - 600 nm	Ø25.4	Plano-Concave, ROC=-500 mm	54,60 $US
1-PCV-2-M254-[9AL1]	UV enhanced Aluminum Ravg > 85 % @ 250 nm - 600 nm	Ø25.4	Plano-Concave, ROC=-1000 mm	54,60 $US
