Dual Laser Line reflecting mirrors (DHR)

Plus de vues

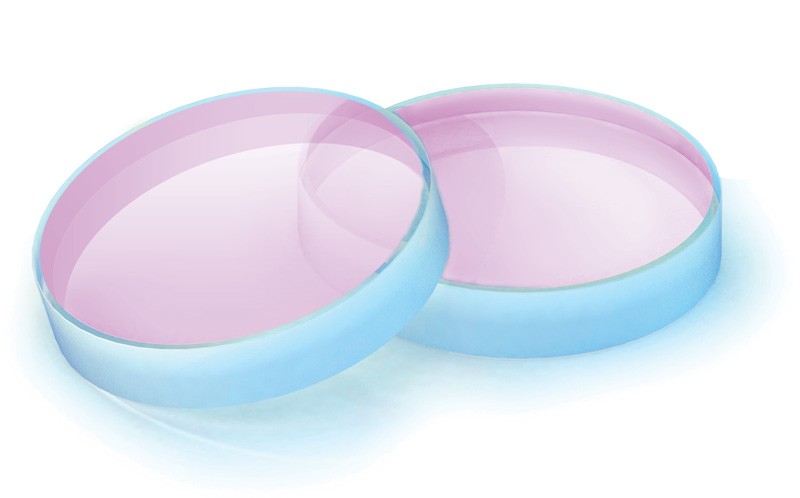

Dual Laser Line reflecting mirrors (DHR)

Dual Laser Line mirrors (DHR) provide an optimised performance at two certain wavelengths and certain angle of incidence (AOI).

Ouverture utile, %	>90%
Coating Adhesion and Durability	Per MIL-C-675A
Tolérances de diamètre, mm	+0.0/-0.1 mm
Seuil de dommage laser, J/cm²	>3-5 J/cm2 for 10 ns pulses @1064 nm
Measured Reflectivity, %	R>99.5 % @ A OI=0° Rs>99.3 % and Rp>98.5 % @ A OI=45°
Chanfreins de protection	<0,25 mm x 45 deg
Planéité de surface	<λ/8 @ 632.8 nm
Qualité de surface, s-d	20/10 S/D
Tolérance d'épaisseur, mm	±0.1 mm

Description

Détails

These multilayer coatings are stacks intended to achieve the highest possible reflectivity at two specific laser line wavelengths at normal or 45 degrees incidence. Laser line high reflectivity coatings are intended for external beam manipulation applications where even slight losses may be intolerable.

Coatings are provided by Ion Beam Sputtering (IBS) or Electron beam evaporation with/without Ion assistance coating techniques.

Fonctionnalités

The coatings are designed to achieve the highest possible reflectivity at two specific laser line wavelengths at normal or 45 degrees incidence

Name	Angle d'incidence, deg	Matériau du substrat	Taille du substrat, mm	Longueur d'onde, nm	Prix	Quantité
1-OS-1-0127-6-[5E00]	0	BK7	Ø12.7 x 6 mm	399+556	97,50 $US
1-OS-1-0127-6-[5E45]	45	BK7	Ø12.7 x 6 mm	399+556	97,50 $US
1-OS-1-0127-6-[5F00]	0	BK7	Ø12.7 x 6 mm	400+800	97,50 $US
1-OS-1-0127-6-[5F45]	45	BK7	Ø12.7 x 6 mm	400+800	97,50 $US
1-OS-1-0127-6-[5H00]	0	BK7	Ø12.7 x 6 mm	515+1030	97,50 $US
1-OS-1-0127-6-[5H45]	45	BK7	Ø12.7 x 6 mm	515+1030	97,50 $US
1-OS-1-0127-6-[5J00]	0	BK7	Ø12.7 x 6 mm	532+1064	97,50 $US
1-OS-1-0127-6-[5J45]	45	BK7	Ø12.7 x 6 mm	532+1064	97,50 $US
1-OS-1-0254-6-[5E00]	0	BK7	Ø25.4 x 6 mm	399+556	107,90 $US
1-OS-1-0254-6-[5E45]	45	BK7	Ø25.4 x 6 mm	399+556	107,90 $US
1-OS-1-0254-6-[5F00]	0	BK7	Ø25.4 x 6 mm	400+800	107,90 $US
1-OS-1-0254-6-[5F45]	45	BK7	Ø25.4 x 6 mm	400+800	107,90 $US
1-OS-1-0254-6-[5H00]	0	BK7	Ø25.4 x 6 mm	515+1030	107,90 $US
1-OS-1-0254-6-[5H45]	45	BK7	Ø25.4 x 6 mm	515+1030	107,90 $US
1-OS-1-0254-6-[5J00]	0	BK7	Ø25.4 x 6 mm	532+1064	107,90 $US
1-OS-1-0254-6-[5J45]	45	BK7	Ø25.4 x 6 mm	532+1064	107,90 $US
1-OS-2-0127-5-[5A00]	0	UVFS	Ø12.7 x 5 mm	266+532	107,90 $US
1-OS-2-0127-5-[5A45]	45	UVFS	Ø12.7 x 5 mm	266+532	107,90 $US
1-OS-2-0127-5-[5B00]	0	UVFS	Ø12.7 x 5 mm	343+1030	107,90 $US
1-OS-2-0127-5-[5B45]	45	UVFS	Ø12.7 x 5 mm	343+1030	107,90 $US
1-OS-2-0127-5-[5C00]	0	UVFS	Ø12.7 x 5 mm	355+532	107,90 $US
1-OS-2-0127-5-[5C45]	45	UVFS	Ø12.7 x 5 mm	355+532	107,90 $US
1-OS-2-0127-5-[5D00]	0	UVFS	Ø12.7 x 5 mm	355+1064	107,90 $US
1-OS-2-0127-5-[5D45]	45	UVFS	Ø12.7 x 5 mm	355+1064	107,90 $US
1-OS-2-0127-5-[5HJ45]	45	UVFS	Ø12.7 x 5 mm	510-532 +1020-1070	110,50 $US
1-OS-2-0254-5-[5A00]	0	UVFS	Ø25.4 x 5 mm	266+532	115,70 $US
1-OS-2-0254-5-[5A45]	45	UVFS	Ø25.4 x 5 mm	266+532	115,70 $US
1-OS-2-0254-5-[5B00]	0	UVFS	Ø25.4 x 5 mm	343+1030	115,70 $US
1-OS-2-0254-5-[5B45]	45	UVFS	Ø25.4 x 5 mm	343+1030	115,70 $US
1-OS-2-0254-5-[5C00]	0	UVFS	Ø25.4 x 5 mm	355+532	115,70 $US
1-OS-2-0254-5-[5C45]	45	UVFS	Ø25.4 x 5 mm	355+532	115,70 $US
1-OS-2-0254-5-[5D00]	0	UVFS	Ø25.4 x 5 mm	355+1064	115,70 $US
1-OS-2-0254-5-[5D45]	45	UVFS	Ø25.4 x 5 mm	355+1064	115,70 $US
1-OS-2-0254-5-[5HJ45]	45	UVFS	Ø25.4 x 5 mm	510-532 +1020-1070	120,90 $US
1-OS-2-0508-6-[5HJ45]	45	UVFS	Ø50.8 x 6 mm	510-532 +1020-1070	158,60 $US
