NX 349-0050

NX 349-0050

Plus de vues

NX 349-0050

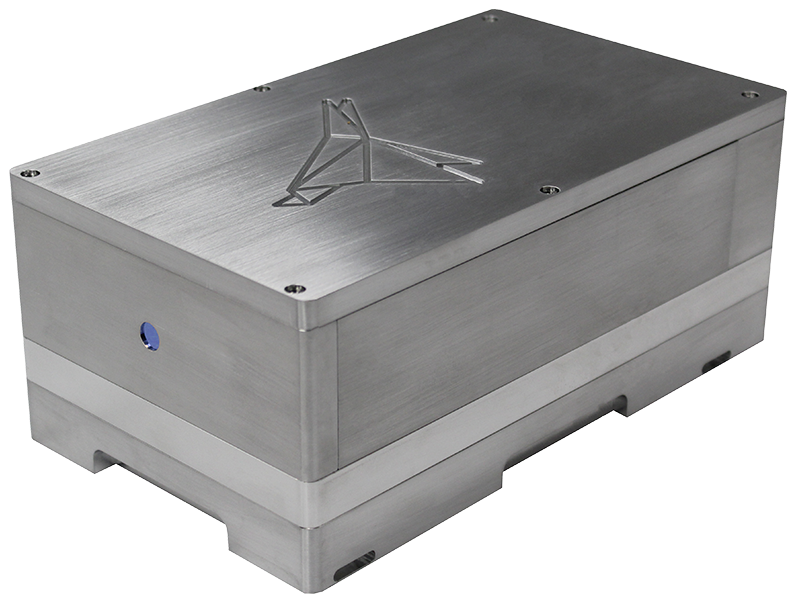

Single Frequency Continuous Wave C-DPSS Laser, 349 nm, Output power 50 mW

Output power, mW	50
Output Beam Diameter, TEM00, mm	0.6 - 1.2
Hauteur du faisceau, mm	65
Warm up time, min	<15
Laser Head (L x W)	240 x 150 mm

Description

Détails

The Skylark 349 laser offers C-DPSS CW single frequency UV operation, delivering up to 200 mW output power, outstanding spectral properties, ultra-stable output, and extremely low noise from a compact footprint and a versatile software package — making it suitable for system integration and a wide range of demanding applications.

Fonctionnalités

from 10 to 200 mW output power at 349 nm SLM
feedback locked Single Longitudinal Mode CW operation
very low noise performance, < 0.1% rms
excellent beam quality from smallest footprint
lowest power consumption for given output
Plug-in USB Connectivity
Remote diagnostics

Applications

Raman spectroscopy, Brillouin scattering, Flow cytometry, Optical manipulation, Interferometry, Semiconductor inspection, Wafer fabrication, Lithography, Confocal microscopy, Biomedical/Bioengineering, Fluorescence, Disc mastering, Optical grating Mastering, Diffraction grating mastering, High precision optics, and more.

Request a quote
