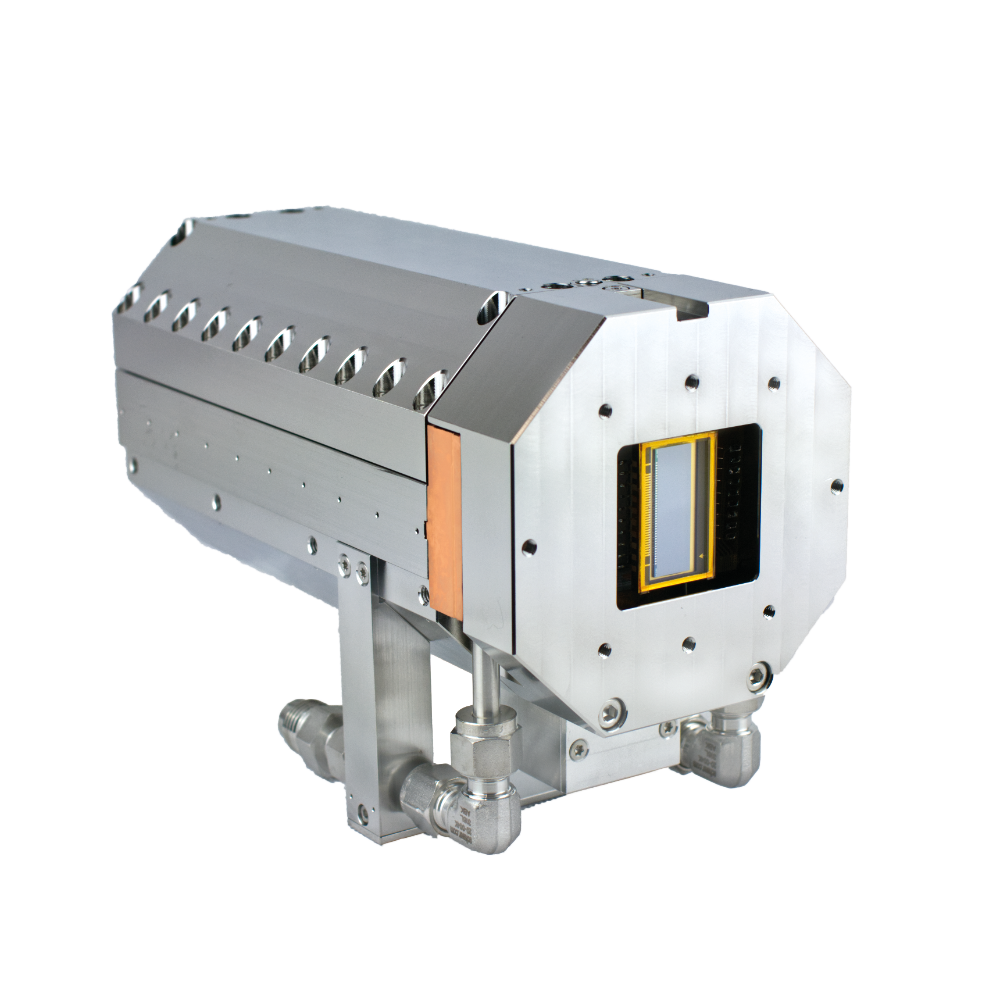

LOTTEs 2k512 BI UV1

This highly sensitive, cooled in-vacuum cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, XUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers different sensor technologies with quantum efficiencies up to 98%.

Zone d'image	27.6 mm × 6.9 mm
Format de pixel	2048 × 512 pixels
Taille de pixel	13.5 µm × 13.5 µm
Refroidissement du capteur CCD	Min. -100°C to 20°C, liquid cooling
Distance bride - plan focal	6 mm
Gain	High: 1.0 counts/e- Low: 0.4 counts/e-
Type de capteur CCD	Back-illuminated, enhanced process
Full well capacity	100 k e-
Liaison de données	Gigabit Ethernet
Source de courant	80-264 VAC, 47-63 Hz, max. 1.1 A (230 V) / 1.9 A (115 V)
Dimensions (H x W x L)	rc version: 9.8 × 9.0 × 23.5 cm / sc version: 9.0 × 12.7 × 18.9 cm
Masse (g)	4900 / 5000

Description

Détails

Fonctionnalités

Back-illuminated CCD
Sensitive range from VUV to X-ray up to 10 keV
Excellent QE in the EUV and soft X-ray

Applications

Soft X-Ray Spectroscopy
Plasma Emission Spectroscopy
High Harmonic Generation Spectroscopy
NEXAFS Spectroscopy
Resonant Inelastic X-Ray Scattering
