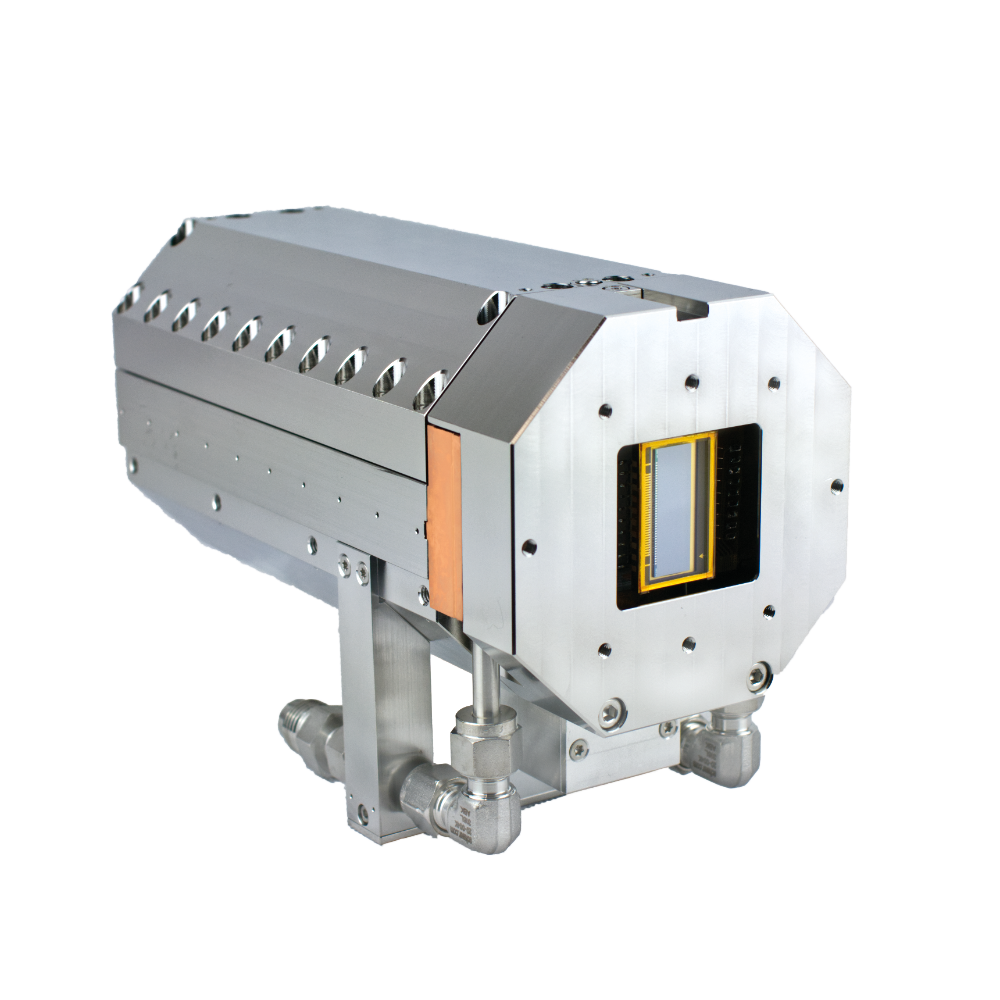

LOTTEs 1k256 FI DD

This highly sensitive, cooled in-vacuum cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, XUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers different sensor technologies with quantum efficiencies up to 98%.

Zone d'image	26.6 mm × 6.7 mm
Format de pixel	1024 × 255 pixels
Taille de pixel	26 µm × 26 µm
Refroidissement du capteur CCD	Min. -100°C to 20°C, liquid cooling
Distance bride - plan focal	6 mm
Dimensions (H x W x L)	rc version: 9.8 × 9.0 × 23.5 cm / sc version: 9.0 × 12.7 × 18.9 cm
Masse (g)	4900 / 5000
Type de capteur CCD	Front-illuminated, deep depletion
Full well capacity	700 k e-
Liaison de données	USB, Gigabit Ethernet
Source de courant	80-264 VAC, 47-63 Hz, max. 1.1 A (230 V) / 1.9 A (115 V)

Description

Détails

Fonctionnalités

Front-illuminated, deep depletion CCD
Sensitive X-ray range: 500 eV up to 20 keV
Up to 85% quantum efficiency

Applications

Soft X-Ray Spectroscopy
Plasma Emission Spectroscopy
High Harmonic Generation Spectroscopy
NEXAFS Spectroscopy
Resonant Inelastic X-Ray Scattering
