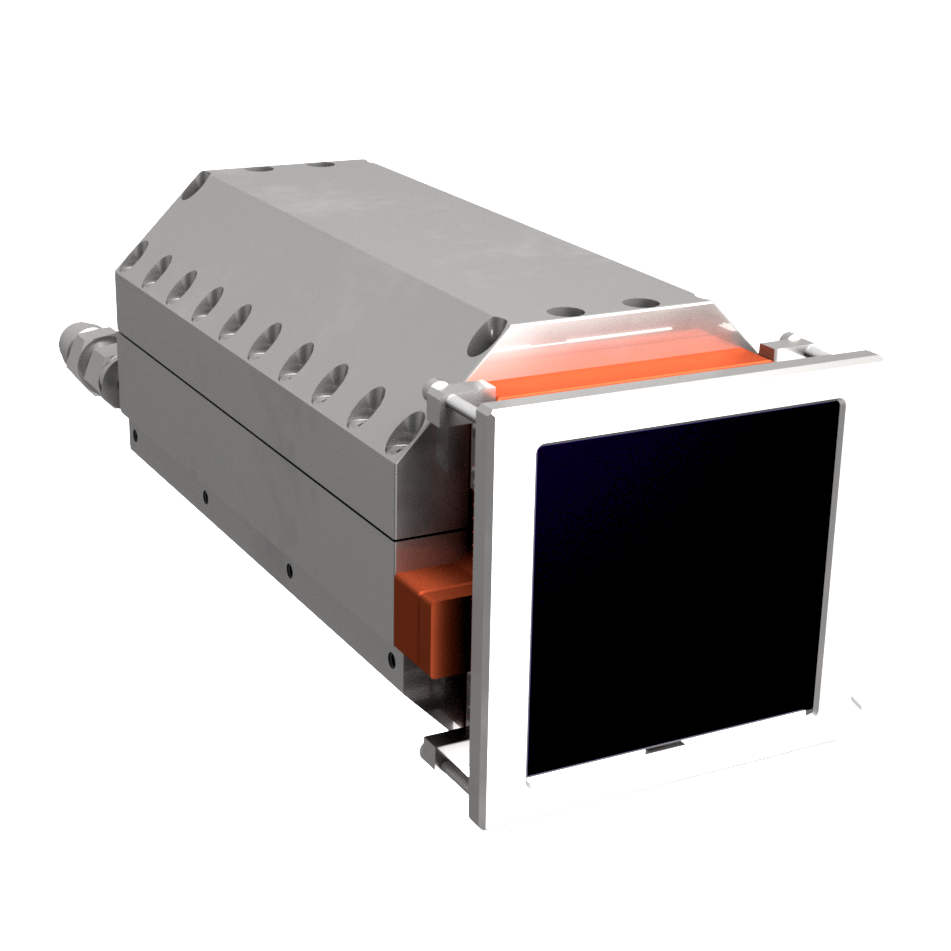

LOTTEi 4k4k BI

This highly sensitive, cooled in-vacuum cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, XUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers different sensor technologies with quantum efficiencies up to 98%.

Zone d'image 61.4 mm × 61.4 mm
Format de pixel 4096 × 4096 pixels
Taille de pixel 15 µm × 15 µm
Refroidissement du capteur CCD Min. -80°C to 20°C, liquid cooling
Distance bride - plan focal 5 mm
Dimensions (H x W x L) rc version: 9.8 × 9.0 × 23.6 cm / sc version: 9.4 × 12.7 × 19.0 cm
Masse (g) 5100 / 5100
Gain High: 1.0 counts/e-
Low: 0.4 counts/e-
Type de capteur CCD Back-illuminated
Full well capacity 150 k e-
Liaison de données USB, Gigabit Ethernet
Source de courant 85-264 VAC, 47-63 Hz, max. 1.9 A (230 V) / 3.8 A (115 V)
Description

Détails

This highly sensitive, cooled in-vacuum cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, XUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers different sensor technologies with quantum efficiencies up to 98%.

Fonctionnalités
  • Back-illuminated CCD
  • Up to 98% quantum efficiency, VUV to X-ray range
Applications
  • EUV Lithography
  • X-Ray Tomography / Fluoroscopy
  • Fourier Transform Holography
  • X-Ray Diffraction
  • X-Ray Phase Contrast Imaging
  • Ptychographic Spectromicroscopy
  • Grazing-IncidenceSmall-Angle X-Ray Scattering
