LOTTEi 2k2k plus BI

This highly sensitive, cooled in-vacuum cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, XUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers different sensor technologies with quantum efficiencies up to 98%.

Zone d'image	30.7 mm × 30.7 mm
Format de pixel	2048 × 2064 pixels
Taille de pixel	15 µm × 15 µm
Refroidissement du capteur CCD	Min. -80°C to 20°C, liquid cooling
Distance bride - plan focal	5 mm

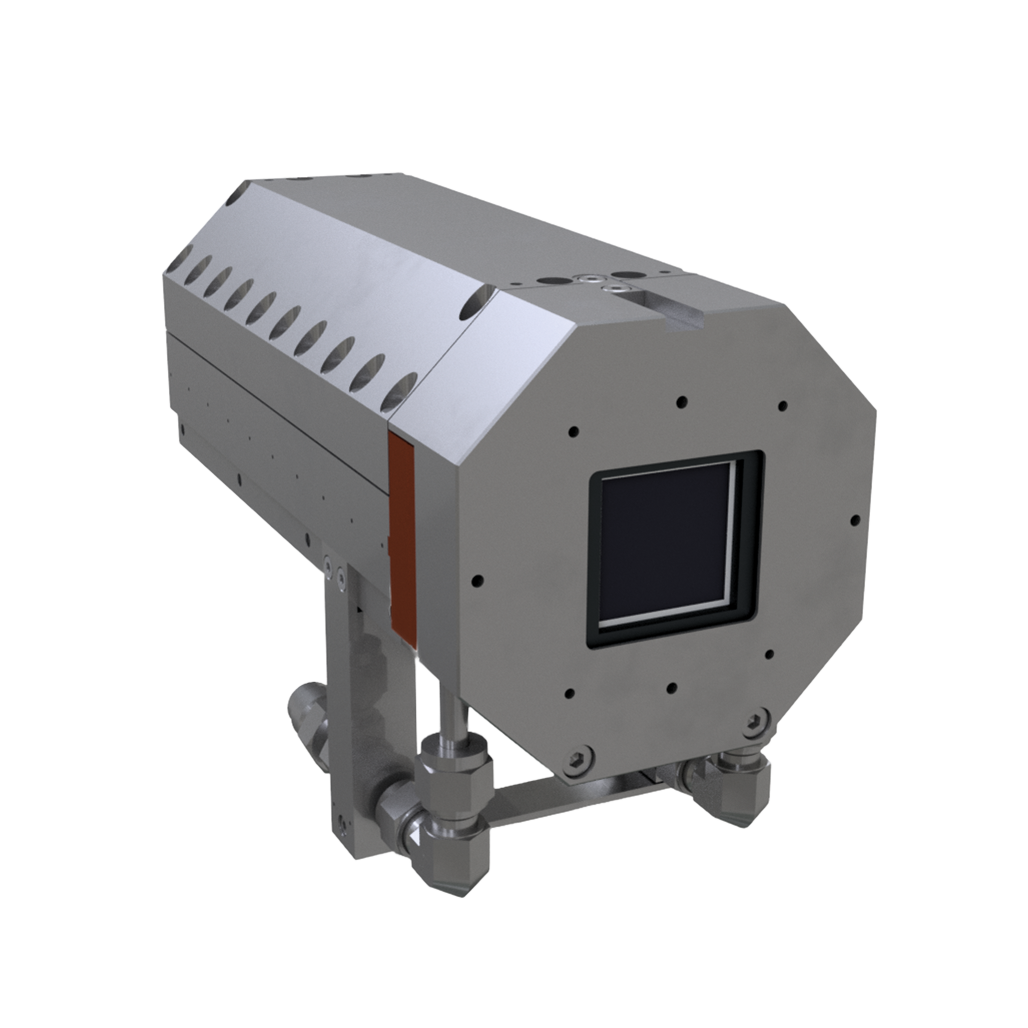

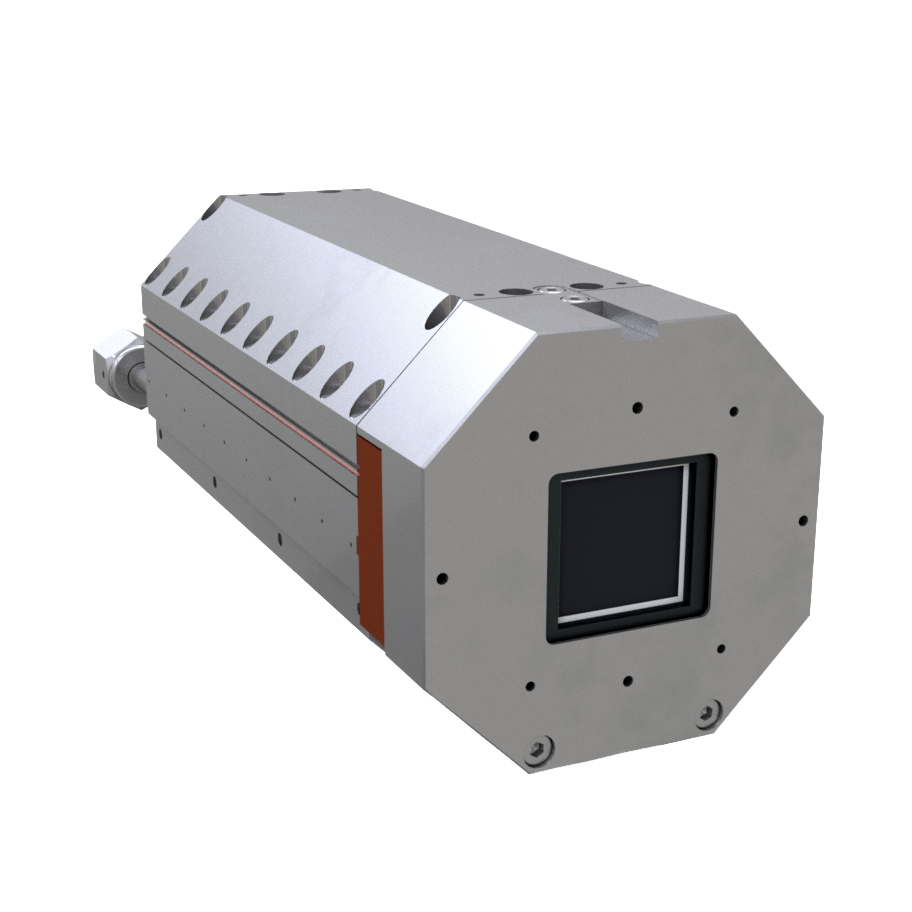

Dimensions (H x W x L)	rc version: 9.8 × 9.0 × 23.5 cm / sc version: 9.0 × 12.7 × 18.9 cm
Masse (g)	5100 / 5100
Gain	High: 1.0 counts/e- Low: 0.4 counts/e-
Type de capteur CCD	Back-illuminated
Full well capacity	150 k e-
Liaison de données	USB, Gigabit Ethernet
Source de courant	85-264 VAC, 47-63 Hz, max. 1.9 A (230 V) / 3.8 A (115 V)

Description

Détails

Fonctionnalités

Back-illuminated CCD, VUV to X-ray range
Up to 96% quantum efficiency
High EUV sensitivity

Applications

EUV Lithography
X-Ray Tomography / Fluoroscopy
Fourier Transform Holography
X-Ray Diffraction
X-Ray Phase Contrast Imaging
Ptychographic Spectromicroscopy
Grazing-IncidenceSmall-Angle X-Ray Scattering
