LOTTEi 1k1k BI DD

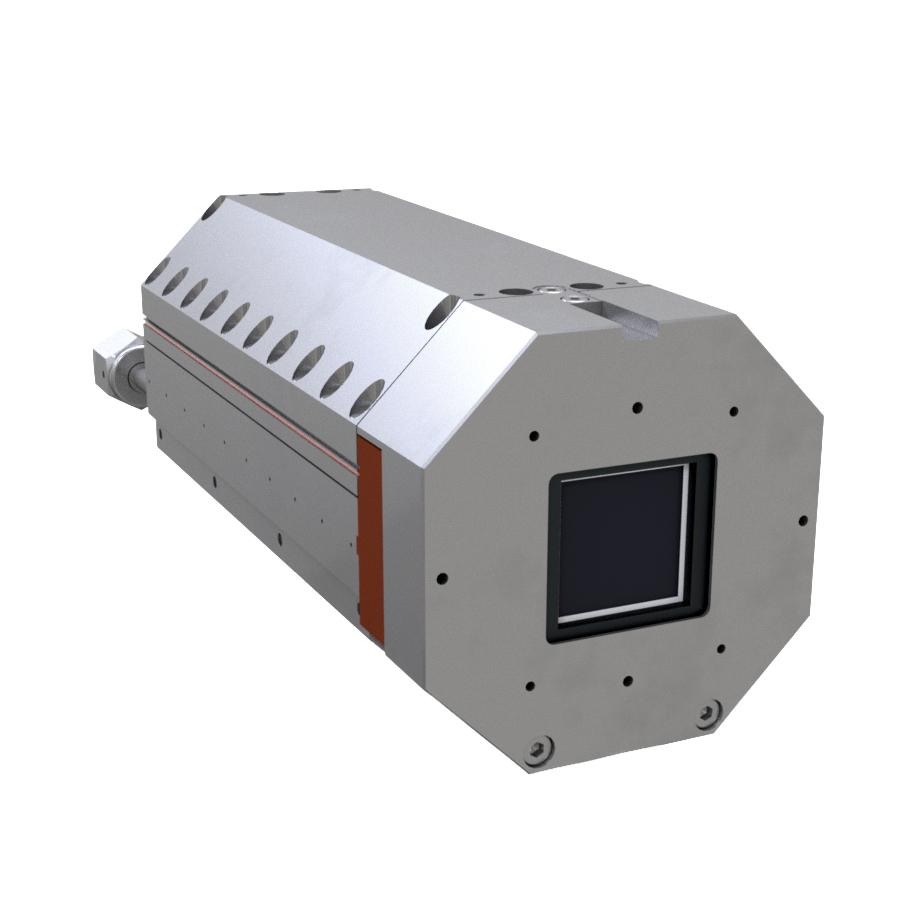

This highly sensitive, cooled in-vacuum cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, XUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers different sensor technologies with quantum efficiencies up to 98%.

Zone d'image	13.3 mm × 13.3 mm
Format de pixel	1056 × 1027 pixels
Taille de pixel	13 µm × 13 µm
Refroidissement du capteur CCD	Min. -100°C to 20°C, liquid cooling
Distance bride - plan focal	6 mm
Dimensions (H x W x L)	rc version: 9.8 × 9.0 × 23.5 cm / sc version: 9.0 × 12.7 × 18.9 cm
Masse (g)	4900 / 5000
Gain	High: 1.0 counts/e- Low: 0.4 counts/e-
Type de capteur CCD	Back-illuminated, deep depletion CCD
Full well capacity	120 k e-
Liaison de données	USB, Gigabit Ethernet
Source de courant	80-264 VAC, 47-63 Hz, max. 1.1 A (230 V) / 1.9 A (115 V)

Description

Détails

Fonctionnalités

Sensitive range: VUV to X-ray range up to 20 keV
Up to 98% quantum efficiency
Back-illuminated, deep depletion CCD

Applications

EUV Lithography
X-Ray Tomography / Fluoroscopy
Fourier Transform Holography
X-Ray Diffraction
X-Ray Phase Contrast Imaging
Ptychographic Spectromicroscopy
Grazing-IncidenceSmall-Angle X-Ray Scattering
