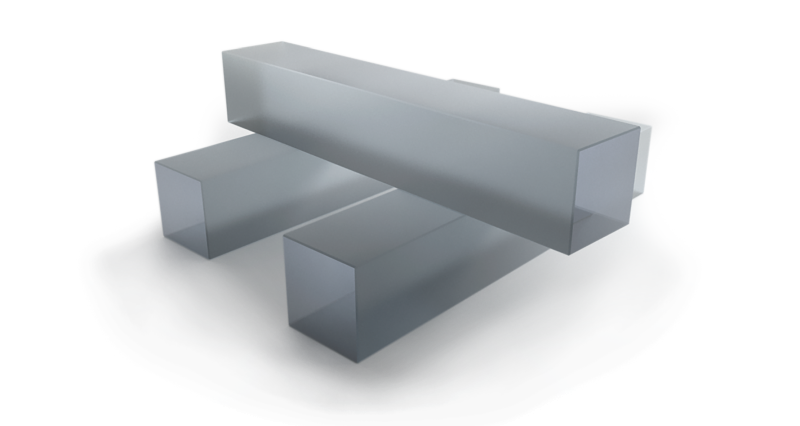

KGW crystals

Unpoled KGW, KYW and other crystals for Raman conversion

Ouverture utile, %	>90
Seuil de dommage laser, J/cm²	>10 J/cm² @1064 nm, 10 ns
Length Tolerance, mm	±0.1 mm
Orientation	b-cut
Parallelism Error, arcsec	<20 arcsec
Chanfreins de protection	<0.1 mm at 45°
Planéité de surface	<λ/8 @632.8 nm
Qualité de surface, s-d	10/5 s-d
Wavefront Distortion	<λ/4 @632.8 nm
Mounting	unmounted

Description

Détails

Potassium gadolinium tungstate (KGd(WO4)2, KGW) crystals feature good mechanical properties, relatively good thermal conductivity (2.5-3.4 Wm-1K-1), and a wide transparency range, which spans from 350 nm to 5 µm. KGW as a Raman crystal features two large Raman modes at 768 cm-1 and 901 cm-1, which are pump polarization dependent. Laserand recommends using KGW crystal as a Raman shifter for picosecond applications.

Fonctionnalités

Broad transparency range from 300 nm to 5 μm
Two pump polarization-dependent Raman shifts at 768 cm^-1 and 901 cm^-1
Excellent Raman shifter for picosecond applications
Custom dimensions, orientation, and coatings available upon request

Applications

Raman generator pumped by commercially available picosecond Nd:YAG laser
