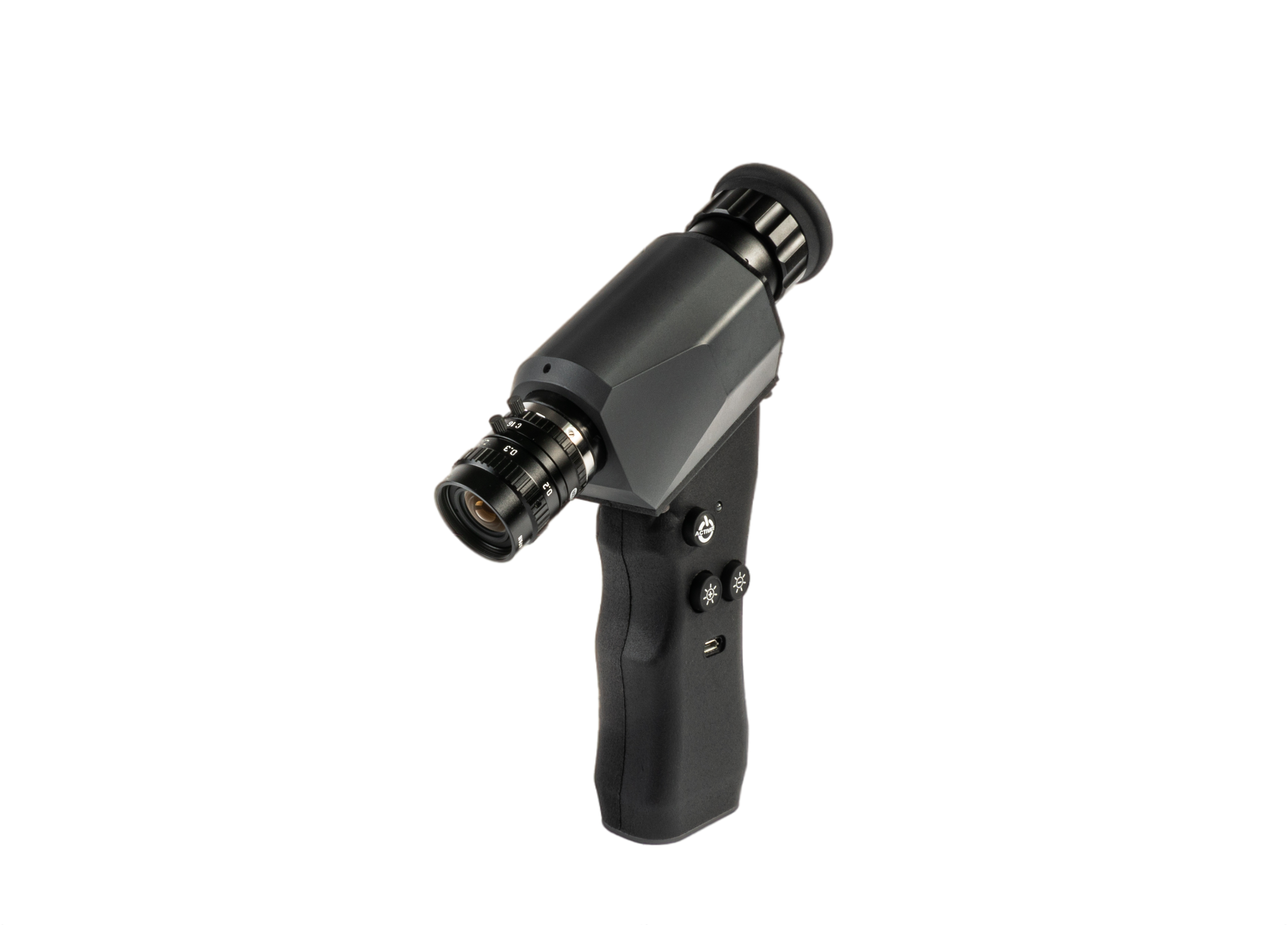

IR1700-2 - IR Viewer, 2X, 19 deg FOV, F1.4/16 mm with iris

Plus de vues

IR1700-2 - IR Viewer, 2X, 19 deg FOV, F1.4/16 mm with iris
2 860,00 $US

Infrared (IR) viewers are used to observe, register, and record both indirect and direct radiation of IR lasers, light-emitting diodes (LED’s), dye, and other IR-sources. It is ideal for IR-laser beam alignment and inspection, optical fiber alignment, telecommunications, solar panel inspection, photo processing, surveillance and investigation in botany, biophysics, medicine, forensics and art restoration, infrared microscopy, fluorescence, etc.

Spectral sensitivity, nm 400 - 1700
Field of view, deg 19
Grossissement 2X
Objective lens F1.4/16 mm
Iris réglable included
Focus 0.5 m to inf.
Battery integrated
Distorsion de l'image <1%
Battery life (continuous), hours 10
Masse (kg) 0.4
Description

Détails

Infrared (IR) viewers are used to observe, register, and record both indirect and direct radiation of IR lasers, light-emitting diodes (LED’s), dye, and other IR-sources. It is ideal for IR-laser beam alignment and inspection, optical fiber alignment, telecommunications, solar panel inspection, photo processing, surveillance and investigation in botany, biophysics, medicine, forensics and art restoration, infrared microscopy, fluorescence, etc. Digital version of IR viewer is based on multiphoton absorption (MPA) phenomenon when the wavelength of the laser exceeds the linear spectral detection range of the silicon material. In addition, the process of photoelectrons requires spatial and temporal filtering from noise to enhance the visualization of IR photons beyond the 1.1 µm spectrum. By adjusting the gain on a pixel-by-pixel basis, it is possible to achieve imaging up to 1.7µm.

Fonctionnalités
  • High performance
  • Wide spectral region
  • Compact
  • Low cost
