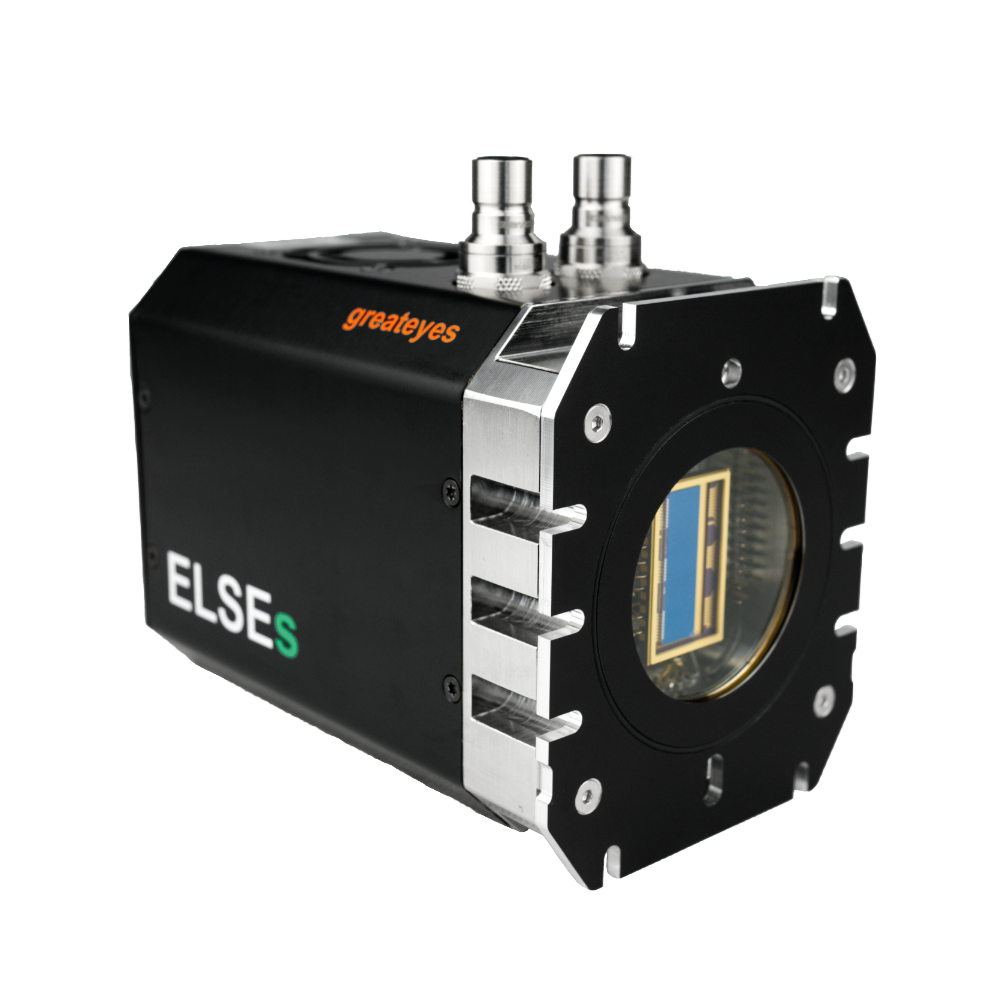

ELSEs 2k512 series

ELSEs
Full-frame deep cooling scientific CCD camera for Spectroscopy applications

Fréquence de lecture des pixels	50 kHz, 100 kHz, 250kHz, 500 kHz, 1 MHz, 3 MHz (5 MHz for visualization mode)
Résolution du convertisseur A/N	18-bit
Linéarité	Better than 99%
Liaison de données	Gigabit Ethernet, USB 3.0
Included software	greateyes Vision software for Windows 10 / 11
SDK	DLL for Windows; LabVIEW, EPICS, Linux, Python, Tango driver (optional)
Pilotes	EPICS, Tango, µManage
Signaux d'interface TTL	Exposure out, shutter out, 2 external trigger in
Conditions de fonctionnement	Temperature: 0°C to 35°C ambient; Relative humidity: <80% (non-condensing)
Source de courant	80-264 VAC, 47-63 Hz, max. 1.1 A (230 V) / 1.9 A (115 V)

Description

Détails

ELSE for Spectroscopy

High resolution up to 16.8 Megapixel

ELSEs integrates cutting-edge low-noise electronics and ultra-deep cooling technology while keeping a compact camera design. Multiple readout speeds can be selected supporting pixel rates from 50 kHz up to 5 MHz.

Functionalities include fully flexible binning operation, various trigger and synchronization modes, Crop and Burst mode, software-selectable gain as well as temperature monitoring of the sensor and the Peltier hot side.

True 18 bit AD conversion allows the exploitation of the full dynamic range of the CCD sensor for the highest performance and SNR. Choose from a wide range of sensors to find the best match with your requirements. ELSEs is ideally suited for detection of very weak signal intensities where a low-noise floor is paramount.

ELSEs offers unprecedented possibilities for your measurements of tomorrow.

Fonctionnalités

Up to 95% peak quantum efficiency
Full well capacity of 100 ke^-
Scientific low-noise CCD sensors
Compact camera design

Applications

Raman Spectroscopy
NIR Spectroscopy
Fluorescence Spectroscopy
Absorption, Transmission, Reflectance Spectroscopy

Nom	ELSEs 2k512 FI UV	ELSEs 2k512 BI UV2	ELSEs 2k512 BI UV3	ELSEs 2k512 FI	ELSEs 2k512 BI MID
Zone d'image	27.6 mm × 6.9 mm	27.6 mm × 6.9 mm	27.6 mm × 6.9 mm	27.6 mm × 6.9 mm	27.6 mm × 6.9 mm
Format de pixel	2048 × 512 pixels	2048 × 512 pixels	2048 × 512 pixels	2048 × 512 pixels	2048 × 512 pixels
Taille de pixel	13.5 µm × 13.5 µm	13.5 µm × 13.5 µm	13.5 µm × 13.5 µm	13.5 µm × 13.5 µm	13.5 µm × 13.5 µm
Refroidissement du capteur CCD	Min. -100°C to 20°C, forced air or liquid cooling	Min. -100°C to 20°C, forced air or liquid cooling	Min. -100°C to 20°C, forced air or liquid cooling	Min. -100°C to 20°C, forced air or liquid cooling	Min. -100°C to 20°C, forced air or liquid cooling
Distance bride - plan focal	10.0 mm	10.0 mm	10.0 mm	10.0 mm	10.0 mm
Type de capteur CCD	Front-illuminated	Back-illuminated	Back-illuminated	Front-illuminated	Back-illuminated
Revêtement de capteur	Lumogen	Broadband UV antireflective	UV antireflective	-	Midband antireflective
Full well capacity	100 k e-	100 k e-	100 k e-	100 k e-	100 k e-
Dimensions (H x W x L)	8.3 cm × 10.0 cm × 13.1 cm (3.27ʺ × 3.94ʺ × 5.16ʺ)	8.3 cm × 10.0 cm × 13.1 cm (3.27ʺ × 3.94ʺ × 5.16ʺ)	8.3 cm × 10.0 cm × 13.1 cm (3.27ʺ × 3.94ʺ × 5.16ʺ)	8.3 cm × 10.0 cm × 13.1 cm (3.27ʺ × 3.94ʺ × 5.16ʺ)	8.3 cm × 10.0 cm × 13.1 cm (3.27ʺ × 3.94ʺ × 5.16ʺ)
Masse (g)	2200	2200	2200	2200	2200
