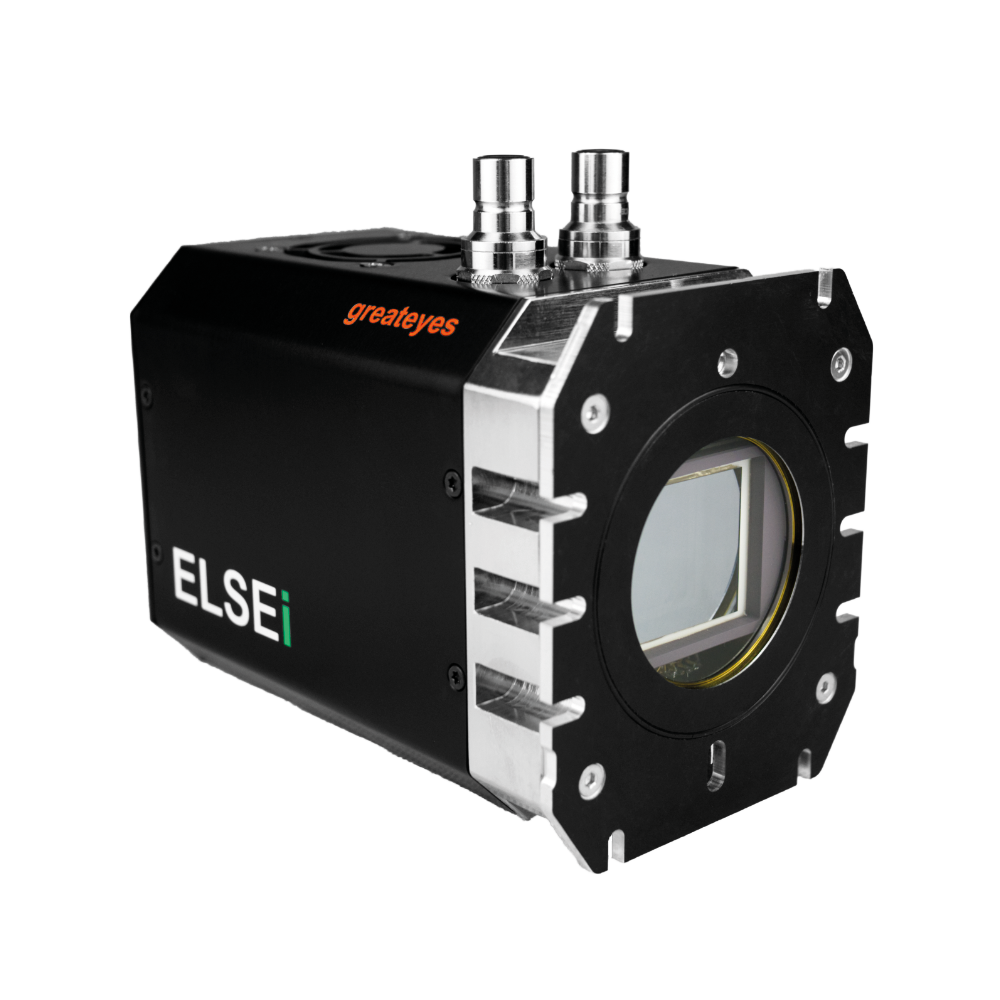

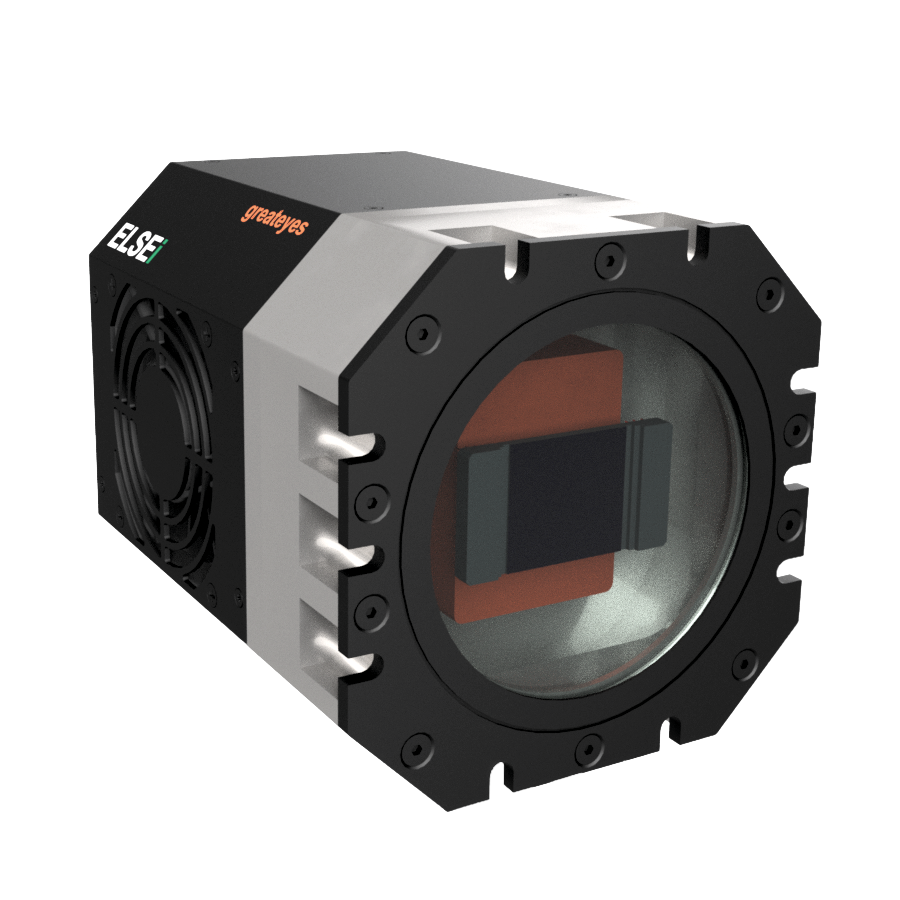

ELSEi 2k2k series

ELSEi
Full-frame deep cooling scientific CCD camera for Imaging applications

Fréquence de lecture des pixels	50 kHz, 100 kHz, 250kHz, 500 kHz, 1 MHz, 3 MHz (5 MHz for visualization mode)
Résolution du convertisseur A/N	18-bit
Linéarité	Better than 99%
Matériau de la fenêtre	UVFS (standard), MgF2, BK7, customised windows on request
Surveillance de la température	Two thermistors at CCD sensor and thermoelectric cooler (hot side)
Liaison de données	Gigabit Ethernet, USB 3.0
Included software	greateyes Vision software for Windows 10 / 11
SDK	DLL for Windows; LabVIEW, EPICS, Linux, Python, Tango driver (optional)
Pilotes	EPICS, Tango, µManage
Signaux d'interface TTL	Exposure out, shutter out, 2 external trigger in
Conditions de fonctionnement	Temperature: 0°C to 35°C ambient; Relative humidity: <80% (non-condensing)
Source de courant	80-264 VAC, 47-63 Hz, max. 1.1 A (230 V) / 1.9 A (115 V)

Description

Détails

ELSE for Imaging

High resolution up to 16.8 Megapixel

ELSEi integrates cutting-edge low-noise electronics and ultra-deep cooling technology while keeping a compact camera design. Multiple readout speeds can be selected supporting pixel rates from 50 kHz up to 5 MHz.

Functionalities include fully flexible binning operation, various trigger and synchronization modes, Crop and Burst mode, software-selectable gain as well as temperature monitoring of the sensor and the Peltier hot side.

True 18 bit AD conversion allows the exploitation of the full dynamic range of the CCD sensor for the highest performance and SNR. Choose from a wide range of sensors to find the best match with your requirements. ELSEi is ideally suited for detection of very weak signal intensities where a low-noise floor is paramount.

ELSEi offers unprecedented possibilities for your measurements of tomorrow.

Fonctionnalités

Up to 95% peak quantum efficiency
Full well capacity of 150 ke^-
Scientific low-noise CCD sensors
Compact camera design

Applications

In-vivo Fluorescence Bioimaging
Astronomy
LIBS Spectroscopy
Neutron Tomography
EL / PL Imaging
Ultracold Quantum Studies

Nom	ELSEi 2k2k BI MID	ELSEi 2k2k BI UV3	ELSEi 2k2k DD MU2	ELSEi 2k2k DD NIR	ELSEi 2k2k FI
Zone d'image	27.6 mm × 27.6 mm	27.6 mm × 27.6 mm	27.6 mm × 27.6 mm	27.6 mm × 27.6 mm	27.6 mm × 27.6 mm
Format de pixel	2048 × 2052 pixels	2048 × 2052 pixels	2048 × 2052 pixels	2048 × 2052 pixels	2048 × 2052 pixels
Taille de pixel	13.5 µm × 13.5 µm	13.5 µm × 13.5 µm	13.5 µm × 13.5 µm	13.5 µm × 13.5 µm	13.5 µm × 13.5 µm
Refroidissement du capteur CCD	Min. -90°C to 20°C, forced air or liquid cooling	Min. -90°C to 20°C, forced air or liquid cooling	Min. -90°C to 20°C, forced air or liquid cooling	Min. -90°C to 20°C, forced air or liquid cooling	Min. -90°C to 20°C, forced air or liquid cooling
Distance bride - plan focal	9.0 mm	9.0 mm	9.0 mm	9.0 mm	9.0 mm
Type de capteur CCD	Back-illuminated	Back-illuminated	Back-illuminated, deep depletion	Back-illuminated, deep depletion	Front-illuminated
Revêtement de capteur	Midband antireflective	UV antireflective	Multi-2 antireflective	NIR antireflective	-
Full well capacity	100 k e-	150 k e-	150 k e-	150 k e-	100 k e-
Dimensions (H x W x L)	8.3 cm × 10.0 cm × 13.1 cm (3.27ʺ × 3.94ʺ × 5.16ʺ)	8.3 cm × 10.0 cm × 13.1 cm (3.27ʺ × 3.94ʺ × 5.16ʺ)	8.3 cm × 10.0 cm × 13.1 cm (3.27ʺ × 3.94ʺ × 5.16ʺ)	8.3 cm × 10.0 cm × 13.1 cm (3.27ʺ × 3.94ʺ × 5.16ʺ)	8.3 cm × 10.0 cm × 13.1 cm (3.27ʺ × 3.94ʺ × 5.16ʺ)
Masse (g)	2200	2200	2200	2200	2200
