ALEXi 2k2k series

Plus de vues

ALEXi 2k2k series

ALEXi

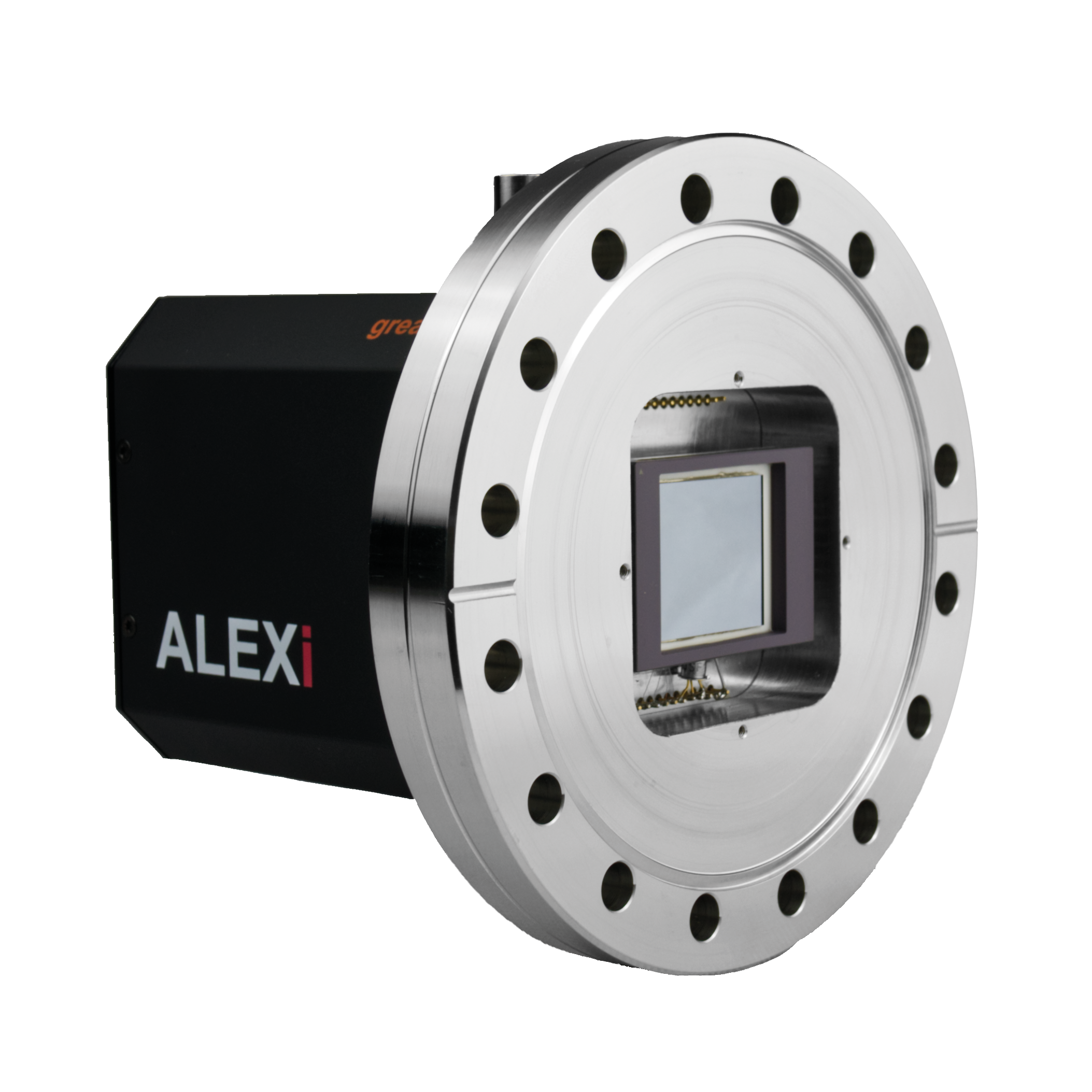

Full-frame deep cooling scientific CCD camera for Imaging applications

Fréquence de lecture des pixels	50 kHz, 100 kHz, 250kHz, 500 kHz, 1 MHz, 3 MHz (5 MHz for visualization mode)
Résolution du convertisseur A/N	18-bit
Linéarité	Better than 99%
Surveillance de la température	Two thermistors at CCD sensor and thermoelectric cooler (hot side)
Liaison de données	Gigabit Ethernet, USB 3.0
Included software	greateyes Vision software for Windows 10 / 11
SDK	DLL for Windows; LabVIEW, EPICS, Linux, Python, Tango driver (optional)
Pilotes	EPICS, Tango, µManage
Signaux d'interface TTL	Exposure out, shutter out, 2 external trigger in
Conditions de fonctionnement	Temperature: 0°C to 35°C ambient; Relative humidity: <80% (non-condensing)

Description

Détails

ALEX for Imaging

High resolution up to 16.8 Megapixel

ALEXi integrates cutting-edge low-noise electronics and ultra-deep cooling technology while keeping a compact camera design. Multiple readout speeds can be selected supporting pixel rates from 50 kHz up to 5 MHz.

True 18-bit AD conversion allows to exploit the full dynamic range of the CCD sensor for highest performance and SNR. ALEXi is ideally suited for detection of very weak signal intensities where a low-noise floor is paramount.

ALEXi offers unprecedented possibilities for your measurements of tomorrow.

Fonctionnalités

Up to 98% peak quantum efficiency
Full well capacity of 150 ke^-
Scientific low-noise CCD sensors

Applications

EUV Lithography
X-Ray Tomography
Fourier Transform Holography
X-Ray Fluoroscopy
Coherent Diffraction Imaging
Ptychographic Spectromicroscopy
Grazing-Incidence Small-Angle X-Ray Scattering

Nom	ALEXi 2k2k BI	ALEXi 2k2k BI DD	ALEXi 2k2k BI UV1	ALEXi 2k2k FI
Zone d'image	27.6 mm × 27.6 mm	27.6 mm × 27.6 mm	27.6 mm × 27.6 mm	27.6 mm × 27.6 mm
Format de pixel	2048 × 2052 pixels	2048 × 2052 pixels	2048 × 2052 pixels	2048 × 2052 pixels
Taille de pixel	13.5 µm × 13.5 µm	13.5 µm × 13.5 µm	13.5 µm × 13.5 µm	13.5 µm × 13.5 µm
Refroidissement du capteur CCD	Min. -90°C to 20°C, forced air or liquid cooling	Min. -90°C to 20°C, forced air or liquid cooling	Min. -90°C to 20°C, forced air or liquid cooling	Min. -90°C to 20°C, forced air or liquid cooling
Distance bride - plan focal	5 mm for CF DN63 flange	5 mm for CF DN63 flange	5 mm for CF DN63 flange	5 mm for CF DN63 flange
Type de capteur CCD	Back-illuminated	Back-illuminated, deep depletion	Back-illuminated	Front-illuminated
Full well capacity	100 k e-	150 k e-	150 k e-	100 k e-
Source de courant	80-264 VAC, 47-63 Hz, max. 1.1 A (230 V) / 1.9 A (115 V)	80-264 VAC, 47-63 Hz, max. 1.1 A (230 V) / 1.9 A (115 V)	80-264 VAC, 47-63 Hz, max. 1.1 A (230 V) / 1.9 A (115 V)	80-264 VAC, 47-63 Hz, max. 1.1 A (230 V) / 1.9 A (115 V)
Dimensions (H x W x L)	8.3 cm × 10.0 cm × 10.9 cm (3.27ʺ × 3.94ʺ × 4.29ʺ)	8.3 cm × 10.0 cm × 10.9 cm (3.27ʺ × 3.94ʺ × 4.29ʺ)	8.3 cm × 10.0 cm × 10.9 cm (3.27ʺ × 3.94ʺ × 4.29ʺ)	8.3 cm × 10.0 cm × 10.9 cm (3.27ʺ × 3.94ʺ × 4.29ʺ)
Masse (g)	2900 (with CF DN63 flange)	2900 (with CF DN63 flange)	2900 (with CF DN63 flange)	2900 (with CF DN63 flange)
Prix	Request a quote	Request a quote	Request a quote	Request a quote
Quantité	✉	✉	✉	✉
