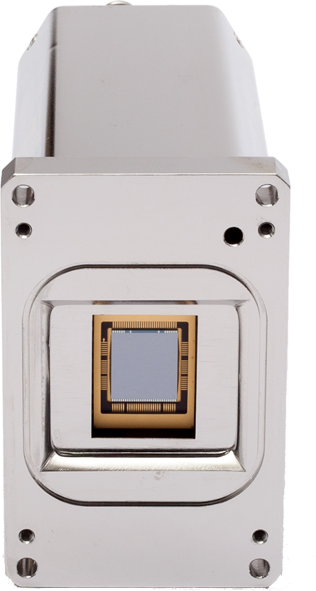

GE-VAC 2048 2048 series

Plus de vues

GE-VAC 2048 2048 series

This highly sensitive, cooled in-vacuum cameras are equipped with ultra-low noise 16-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, XUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers different sensor technologies with quantum efficiencies up to 98%.

Dimensions (H x W x L) 10.0 cm (3.94") x 6.2 cm (2.44") x 13.2 cm (5.20")
Fréquence de lecture des pixels 500 kHz, 1 MHz, 3 MHz
Résolution du convertisseur A/N 16-bit, 18-bit (optional)
Included software greateyes Vision software for Windows 7 / 10
SDK and drivers DLLs for Windows 7 / 10, Linux, EPICS and LabVIEW driver
Source de courant 110 - 240 VAC, 50 - 60 Hz, max. 1 A
Linéarité Better than 99%
  • Description
  • Fonctionnalités
Description

Détails

This highly sensitive, cooled in-vacuum cameras are equipped with ultra-low noise 16-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, XUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers different sensor technologies with quantum efficiencies up to 98%.

Fonctionnalités
  • Completely stainless steel or aluminum housing

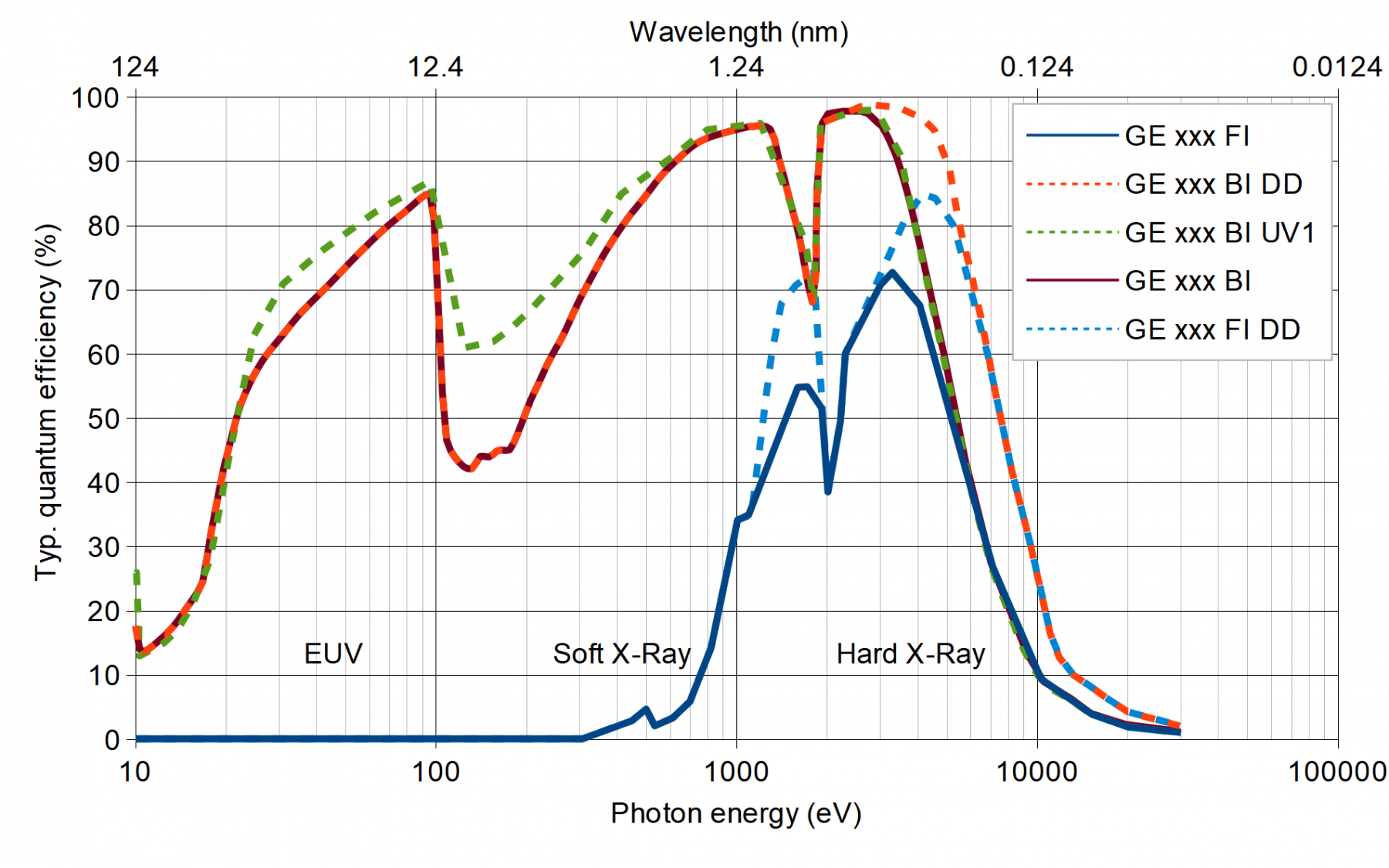

  • Up to 98% peak quantum efficiency
  • Max. full well capacity of 700 ke-
  • Vacuum compatibility: < 1 x 10-8 mbar
Nom

GE-VAC 2048 2048 BI

GE-VAC 2048 2048 BI DD

GE-VAC 2048 2048 BI UV1

GE-VAC 2048 2048 FI

Zone d'image 27.6 mm × 27.6 mm 27.6 mm × 27.6 mm 27.6 mm × 27.6 mm 27.6 mm × 27.6 mm
Format de pixel 2048 × 2048 pixels 2048 × 2048 pixels 2048 × 2048 pixels 2048 × 2048 pixels
Taille de pixel 13.5 µm × 13.5 µm 13.5 µm × 13.5 µm 13.5 µm × 13.5 µm 13.5 µm × 13.5 µm
Refroidissement du capteur CCD Min. -70°C to 20°C, liquid cooling Min. -70°C to 20°C, liquid cooling Min. -70°C to 20°C, liquid cooling Min. -70°C to 20°C, liquid cooling
Gain High: 1.0 counts/e-
Low: 0.4 counts/e-
High: 1.0 counts/e-
Low: 0.4 counts/e-
High: 1.0 counts/e-
Low: 0.4 counts/e-
High: 1.0 counts/e-
Low: 0.4 counts/e-
Liaison de données USB, Gigabit Ethernet USB, Gigabit Ethernet USB, Gigabit Ethernet USB, Gigabit Ethernet
Distance bride - plan focal 9.0 mm 9.0 mm 9.0 mm 9.0 mm
Masse (g) 2300 2300 2300 2300
Type de capteur CCD Back-illuminated Back-illuminated,
deep depletion,
fringe suppression
Back-illuminated,
enhanced process
Front-illuminated
Revêtement de capteur - - - -
Full well capacity 100 k e- 150 k e- 150 k e- 100 k e-
Prix Request a quote Request a quote Request a quote Request a quote
