LOTTEi 4k4k series

Plus de vues

LOTTEi 4k4k series

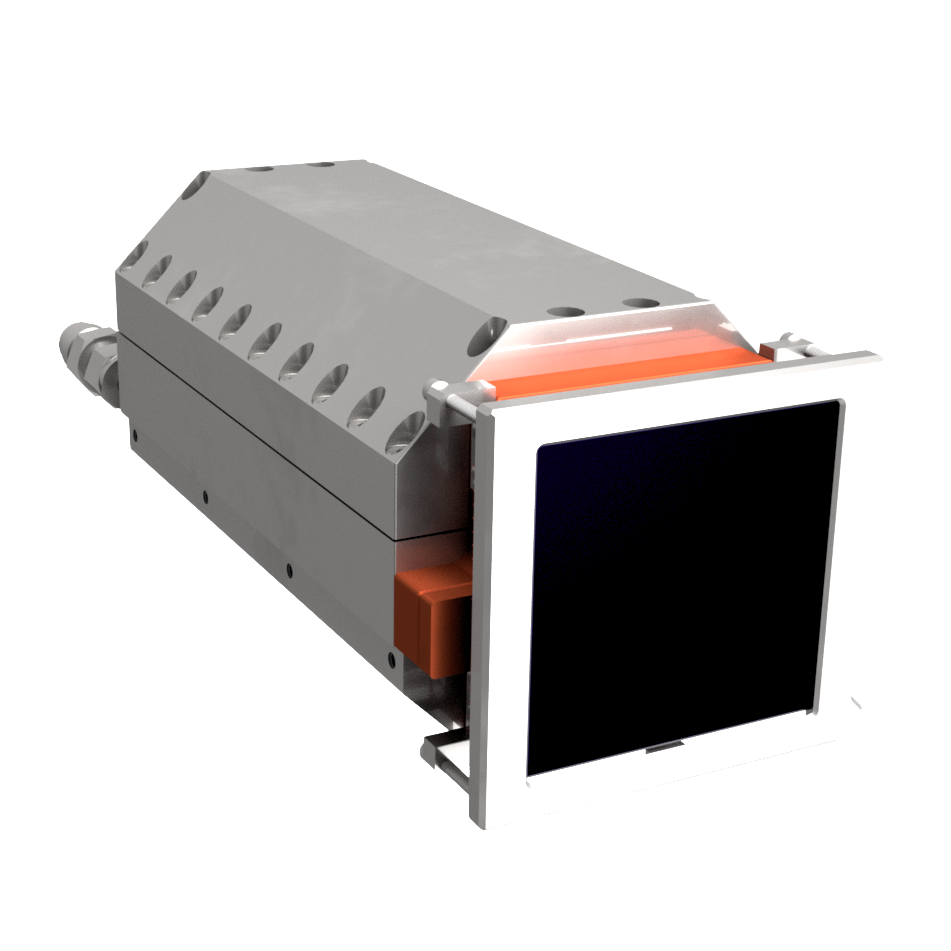

LOTTEi
Full-frame deep cooling in-vacuum scientific CCD camera for Imaging applications

Fréquence de lecture des pixels	50 kHz, 100 kHz, 250kHz, 500 kHz, 1 MHz, 3 MHz (5 MHz for visualization mode)
Résolution du convertisseur A/N	18-bit
Linéarité	Better than 99%
Liaison de données	Gigabit Ethernet
Included software	greateyes Vision software for Windows 10 / 11
SDK	C++ based library for Windows and Linux, LabVIEW, Python
Pilotes	EPICS, Tango, µManage
Signaux d'interface TTL	Exposure out, external trigger in

Description

Détails

LOTTE for Imaging

High resolution up to 16.8 Megapixel

LOTTEi can be submerged, operated and positioned freely inside a vacuum chamber. Utilising scientific-grade back-illuminated CCD sensors for the detection of EUV, VUV and X-ray signals, LOTTE is equipped with a novel and advanced cooling concept enabling detector temperatures as low as -100 °C. It is furthermore driven by the most powerful and versatile true 18-bit electronic platform available for in-vacuum use. This guarantees ultra low noise performance.

One key feature that differentiates LOTTE from its nearest rivals is an innovative encapsulated stainless-steel housing, assuring extremely low outgassing at all times. The special design and unprecedented performance make the LOTTE a unique companion for demanding low-light scientific research applications. Additional handy features are further improving the user experience and adding true value.

Fonctionnalités

Completely stainless steel or aluminum housing
Ultra deep TE cooling down to -100°C

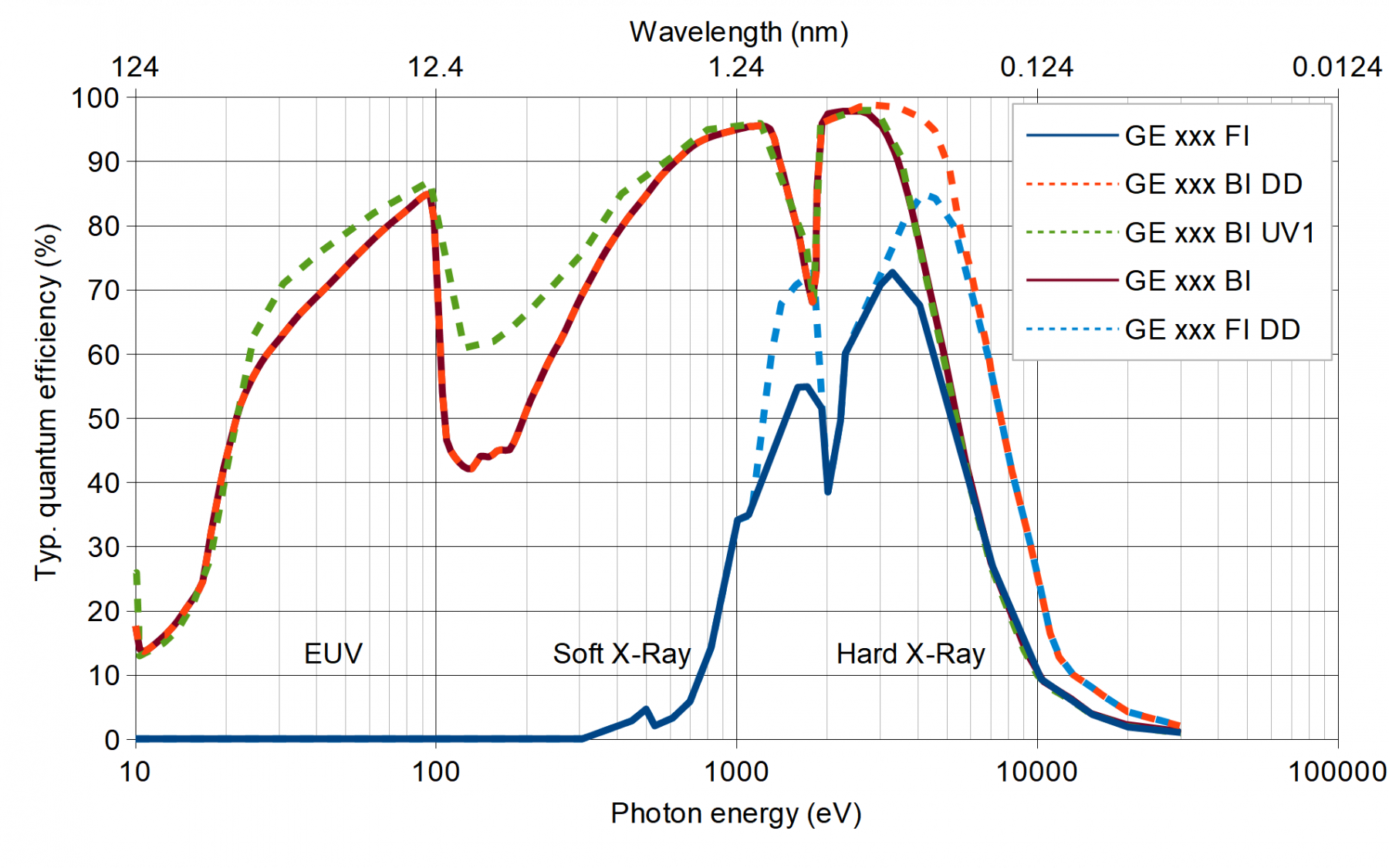

Up to 98% peak quantum efficiency
Fast readout speeds up to 5 MHz
UHV compatibility: < 1 x 10^-9 mbar

Applications

EUV Lithography
X-Ray Tomography / Fluoroscopy
Fourier Transform Holography
X-Ray Diffraction
X-Ray Phase Contrast Imaging
Ptychographic Spectromicroscopy
Grazing-IncidenceSmall-Angle X-Ray Scattering

Nom	LOTTEi 4k4k BI	LOTTEi 4k4k BI DD	LOTTEi 4k4k BI UV1
Zone d'image	61.4 mm × 61.4 mm	61.4 mm × 61.4 mm	61.4 mm × 61.4 mm
Format de pixel	4096 × 4096 pixels	4096 × 4096 pixels	4096 × 4096 pixels
Taille de pixel	15 µm × 15 µm	15 µm × 15 µm	15 µm × 15 µm
Refroidissement du capteur CCD	Min. -80°C to 20°C, liquid cooling	Min. -80°C to 20°C, liquid cooling	Min. -80°C to 20°C, liquid cooling
Distance bride - plan focal	5 mm	5 mm	5 mm
Dimensions (H x W x L)	rc version: 9.8 × 9.0 × 23.6 cm / sc version: 9.4 × 12.7 × 19.0 cm	rc version: 9.8 × 9.0 × 23.6 cm / sc version: 9.4 × 12.7 × 19.0 cm	rc version: 9.8 × 9.0 × 23.6 cm / sc version: 9.4 × 12.7 × 19.0 cm
Masse (g)	5100 / 5100	5100 / 5100	5100 / 5100
Type de capteur CCD	Back-illuminated	Back-illuminated	Back-illuminated
Full well capacity	150 k e-	350 k e-	350 k e-
Source de courant	85-264 VAC, 47-63 Hz, max. 1.9 A (230 V) / 3.8 A (115 V)	85-264 VAC, 47-63 Hz, max. 1.9 A (230 V) / 3.8 A (115 V)	85-264 VAC, 47-63 Hz, max. 1.9 A (230 V) / 3.8 A (115 V)
Prix	Request a quote	Request a quote	Request a quote
