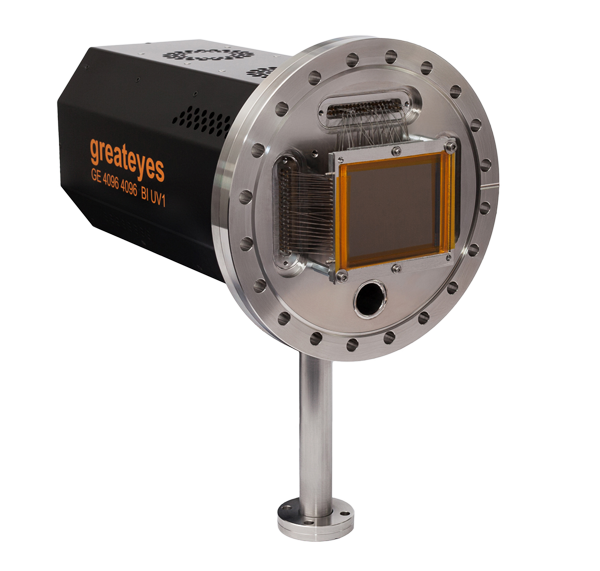

GE-VUV 4096 4096 BI UV1

Plus de vues

This series of highly sensitive, cooled cameras with vacuum flange is equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, EUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various sensors with quantum efficiencies up to 97%.

Zone d'image	61.4 mm × 61.7 mm
Format de pixel	4096 × 4096 pixels
Taille de pixel	15 µm × 15 µm
Refroidissement du capteur CCD	Min. -90°C to 20°C, forced air or liquid cooling
Gain	Switchable, max. 1.0 counts/e-
Liaison de données	Gigabit Ethernet
Distance bride - plan focal	20.5 mm
Dimensions (H x W x L)	13.5 cm (5.31") x 15.0 cm (5.90") x 28.5 cm (11.22‘‘)
Masse (g)	9500
Type de capteur CCD	Back-illuminated, enhanced process
Full well capacity	150 k e-

Description

Détails

Fonctionnalités

Up to 97% quantum efficiency, VUV to X-ray range
Back-illuminated 16.8 Megapixel CCD
Highest EUV / Soft X-Ray sensitivity
