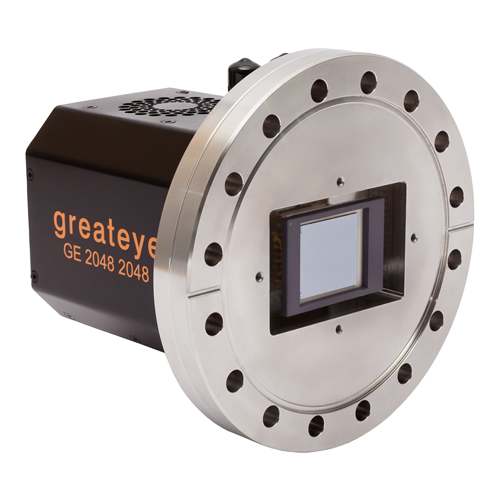

GE-VUV 2048 2048 BI UV1

Plus de vues

This series of highly sensitive, cooled cameras with vacuum flange is equipped with ultra-low noise 16-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, EUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various flange types and sensors with quantum efficiencies up to 97%.

Zone d'image	27.6 mm × 27.6 mm
Format de pixel	2048 × 2048 pixels
Taille de pixel	13.5 µm × 13.5 µm
Refroidissement du capteur CCD	Min. -80°C to 20°C, forced air or liquid cooling
Gain	High: 1.0 counts/e- Low: 0.4 counts/e-
Liaison de données	USB, Gigabit Ethernet
Distance bride - plan focal	7.5 mm for CF DN100
Dimensions (H x W x L)	9.1 cm (3.58") x 9.7 cm (3.82") x 13.5 cm (5.31")
Masse (g)	3500
Type de capteur CCD	Back-illuminated, enhanced process
Full well capacity	150 k e-

Description

Détails

Fonctionnalités

Up to 96% quantum efficiency, VUV to X-ray range
Back-illuminated CCD
Excellent QE in the EUV and soft X-ray
