GE-VUV 1024 256 FI DD

Plus de vues

GE-VUV 1024 256 FI DD

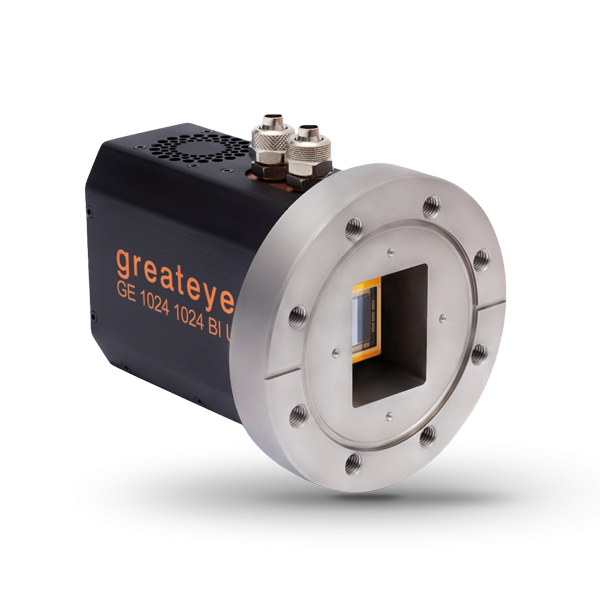

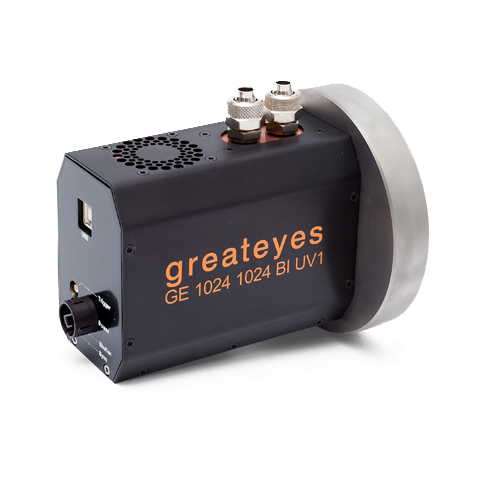

This series of highly sensitive, cooled cameras with vacuum flange is equipped with ultra-low noise 16-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, EUV and X-ray range up to 20 keV. Due to the large pixel size, very high signal to noise ratios are possible. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various flange types and sensor technologies with quantum efficiencies up to 98%.

Zone d'image	26.6 mm × 6.7 mm
Format de pixel	1024 × 256 pixels
Taille de pixel	26 µm × 26 µm
Refroidissement du capteur CCD	Min. -100°C to 20°C, forced air or liquid cooling
Gain	High: 1.0 counts/e- Low: 0.2 counts/e-
Liaison de données	USB, Gigabit Ethernet
Distance bride - plan focal	19.6 mm for CF DN63
Dimensions (H x W x L)	8.7 cm (3.43") x 6.2 cm (2.44") x 12.3 cm (4.84")
Masse (g)	2300
Type de capteur CCD	Front-illuminated, deep depletion fringe suppression
Full well capacity	700 k e-

Description

Détails

Fonctionnalités

Sensitive X-ray range: 500 eV to 20 keV
Up to 85% quantum efficiency
Front-illuminated CCD, deep depletion CCD
