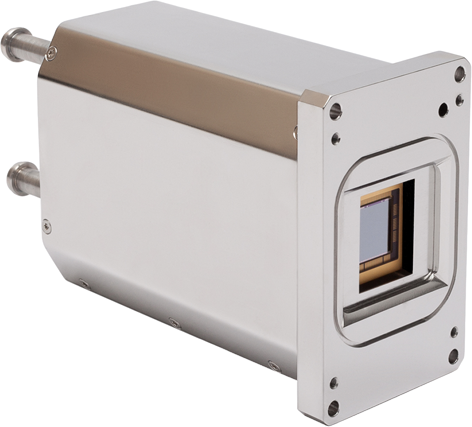

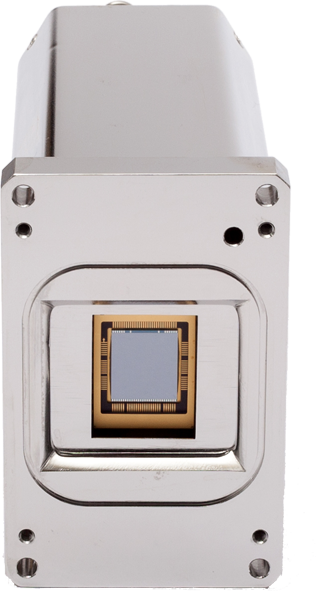

GE-VAC 2048 2048 BI DD

Plus de vues

GE-VAC 2048 2048 BI DD

This highly sensitive, cooled in-vacuum cameras are equipped with ultra-low noise 16-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, XUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers different sensor technologies with quantum efficiencies up to 98%.

Zone d'image	27.6 mm × 27.6 mm
Format de pixel	2048 × 2048 pixels
Taille de pixel	13.5 µm × 13.5 µm
Refroidissement du capteur CCD	Min. -70°C to 20°C, liquid cooling
Gain	High: 1.0 counts/e- Low: 0.4 counts/e-
Liaison de données	USB, Gigabit Ethernet
Distance bride - plan focal	9.0 mm
Dimensions (H x W x L)	10.0 cm (3.94") x 6.2 cm (2.44") x 13.2 cm (5.20")
Masse (g)	2300
Type de capteur CCD	Back-illuminated, deep depletion, fringe suppression
Full well capacity	150 k e-

Description

Détails

Fonctionnalités

Up to 98% quantum efficiency, VUV to X-ray range
Back-illuminated deep depletion CCD
High EUV and hard X-ray sensitivity
