GE-VAC 1024 256 BI UV1

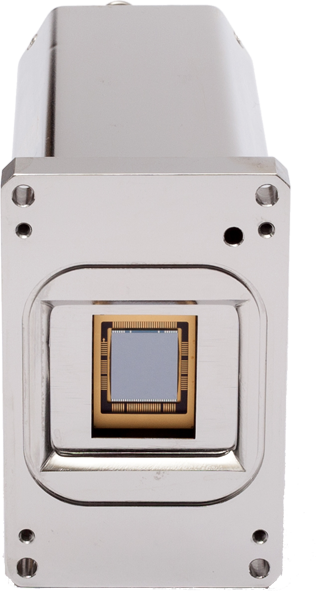

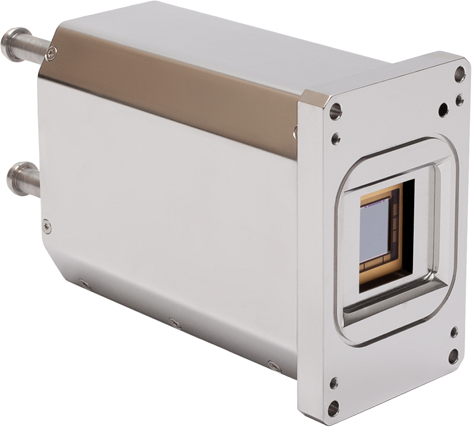

This highly sensitive, cooled in-vacuum cameras are equipped with ultra-low noise 16-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, XUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers different sensor technologies with quantum efficiencies up to 98%.

Zone d'image	26.6 mm × 6.7 mm
Format de pixel	1024 × 256 pixels
Taille de pixel	26 µm × 26 µm
Refroidissement du capteur CCD	Min. -80°C to 20°C, liquid cooling
Gain	High: 1.0 counts/e- Low: 0.2 counts/e-
Liaison de données	USB, Gigabit Ethernet
Distance bride - plan focal	10.0 mm
Dimensions (H x W x L)	10.0 cm (3.94") x 6.2 cm (2.44") x 13.2 cm (5.20")
Masse (g)	2300
Type de capteur CCD	Back-illuminated, enhanced process
Full well capacity	500 k e-

Description

Détails

Fonctionnalités

Up to 96% quantum efficiency, VUV to X-ray range
Back-illuminated CCD
Excellent QE in the EUV and soft X-ray
