GE-VAC 1024 1024 BI DD

Plus de vues

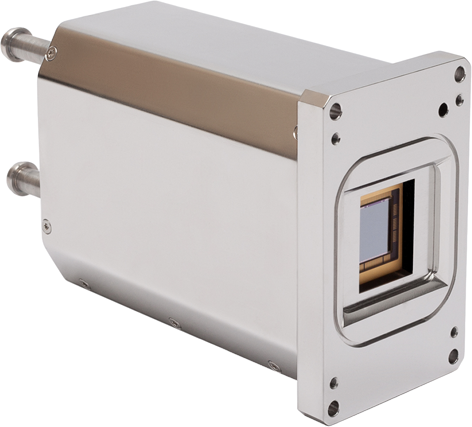

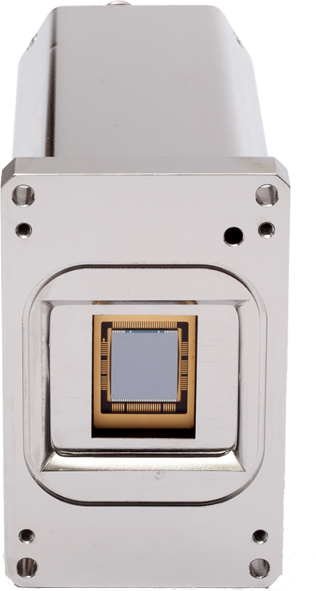

GE-VAC 1024 1024 BI DD

This highly sensitive, cooled in-vacuum cameras are equipped with ultra-low noise 16-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, XUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers different sensor technologies with quantum efficiencies up to 98%.

Zone d'image	13.3 mm × 13.3 mm
Format de pixel	1024 × 1024 pixels
Taille de pixel	13 µm × 13 µm
Refroidissement du capteur CCD	Min. -80°C to 20°C, liquid cooling
Gain	High: 1.0 counts/e- Low: 0.4 counts/e-
Liaison de données	USB, Gigabit Ethernet
Distance bride - plan focal	10.0 mm
Dimensions (H x W x L)	10.0 cm (3.94") x 6.2 cm (2.44") x 13.2 cm (5.20")
Masse (g)	2300
Type de capteur CCD	Back-illuminated, deep depletion, fringe suppression
Full well capacity	120 k e-

Description

Détails

Fonctionnalités

Sensitive range: VUV to X-ray range up to 20 keV
Up to 98% quantum efficiency
Back-illuminated, deep depletion CCD
