GE 2048 512 series

Plus de vues

GE 2048 512 series

This series of highly sensitive, cooled cameras is equipped with ultra-low noise 16-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the NIR, VIS and UV range. The detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various scientific CCD sensors with different technologies and coatings with quantum efficiencies up to 95%.

Dimensions (H x W x L)	10.0 cm (3.94") x 6.2 cm (2.44") x 13.0 cm (5.12")
Fréquence de lecture des pixels	500 kHz, 1 MHz, 3 MHz
Résolution du convertisseur A/N	16-bit, 18-bit (optional)
Included software	greateyes Vision software for Windows 7 / 10
SDK and drivers	DLLs for Windows 7 / 10, Linux, EPICS and LabVIEW driver
Source de courant	110 - 240 VAC, 50 - 60 Hz, max. 1 A
Linéarité	Better than 99%

Description

Détails

Fonctionnalités

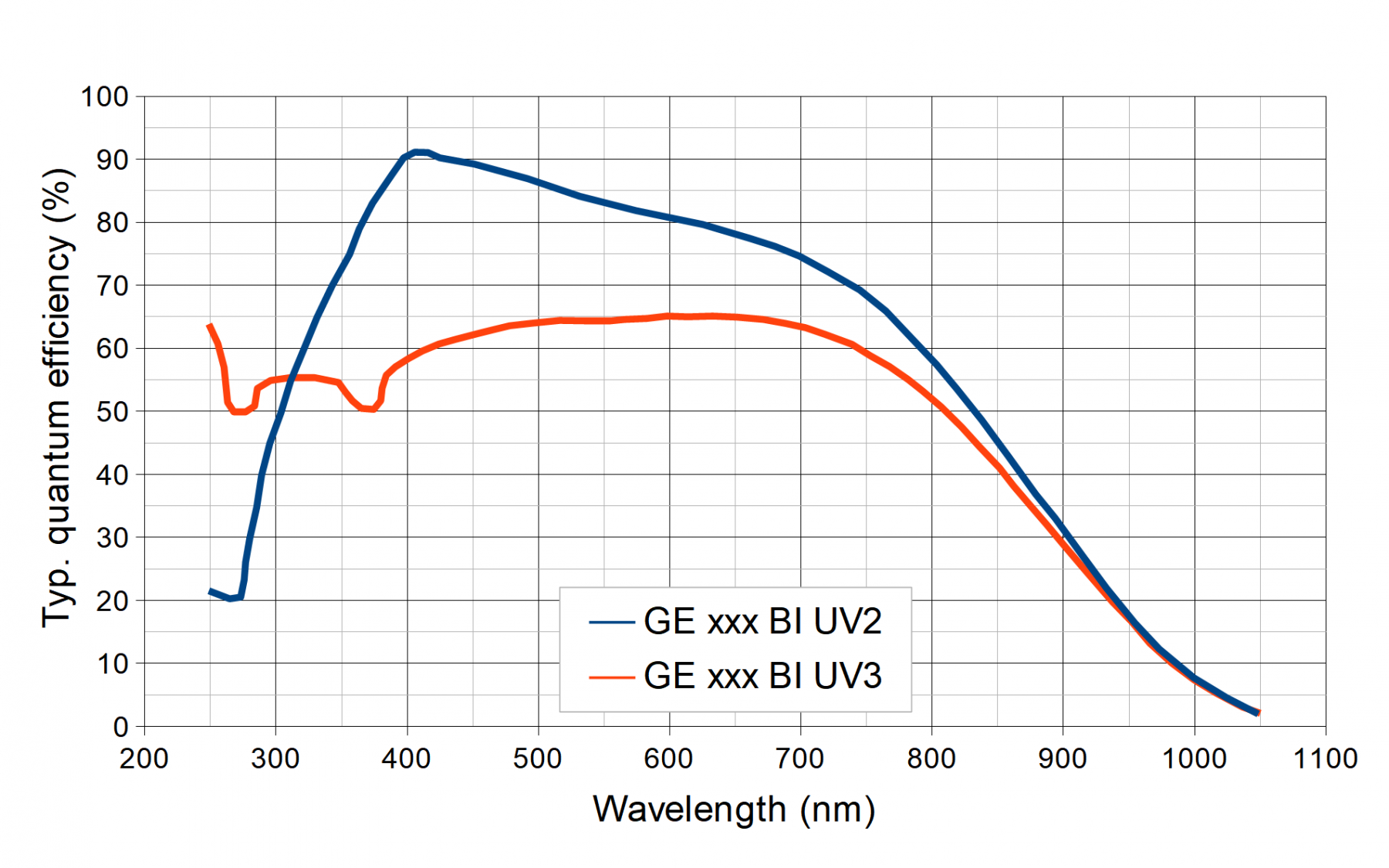

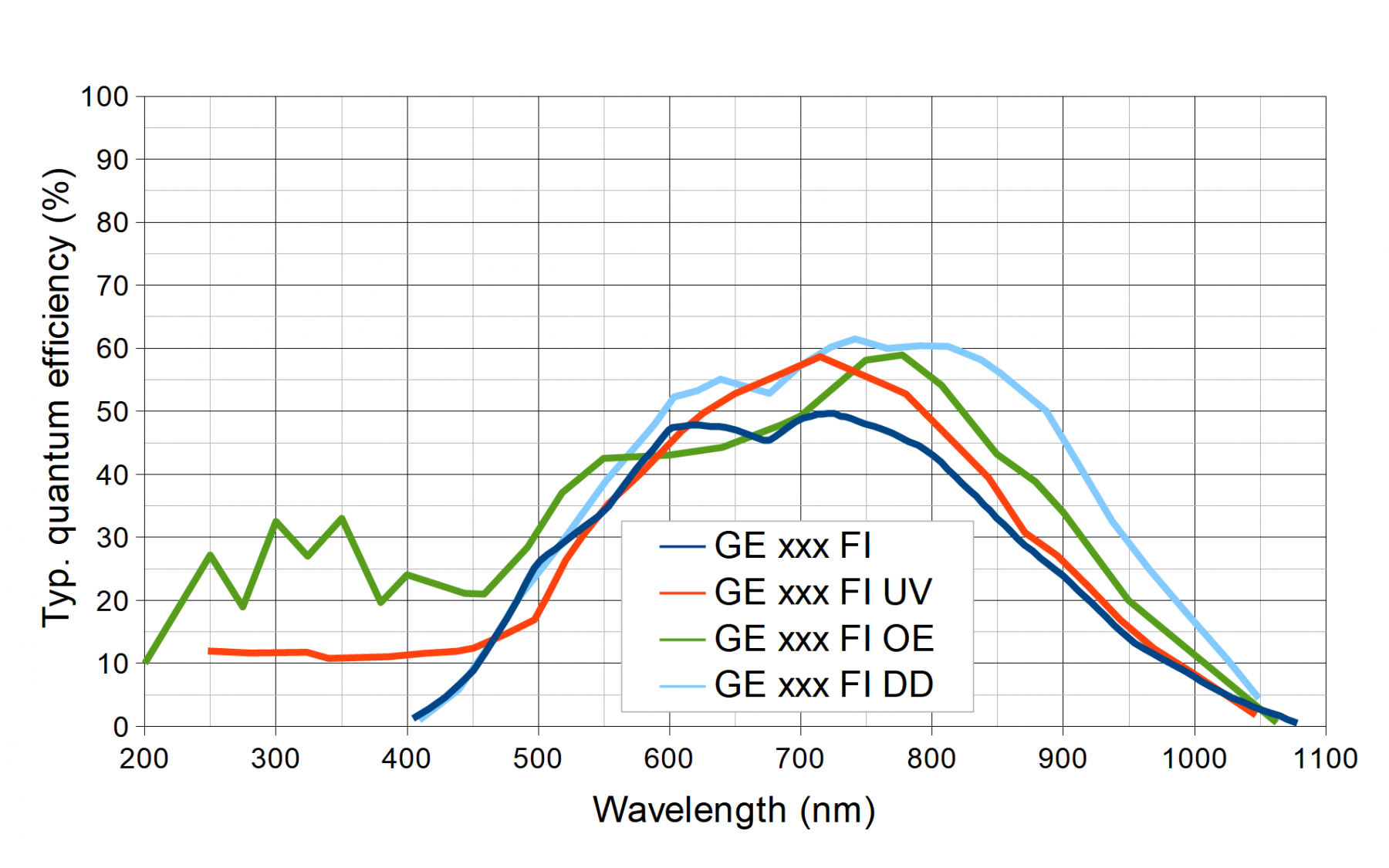

Up to 95% peak quantum efficiency
Full well capacity of 100 ke^-
Scientific low-noise CCD sensors
Compact camera design

Nom	GE 2048 512 FI	GE 2048 512 BI UV2	GE 2048 512 BI MID	GE 2048 512 BI UV3	GE 2048 512 FI UV
Zone d'image	27.6 mm × 6.9 mm	27.6 mm × 6.9 mm	27.6 mm × 6.9 mm	27.6 mm × 6.9 mm	27.6 mm × 6.9 mm
Format de pixel	2048 × 512 pixels	2048 × 512 pixels	2048 × 512 pixels	2048 × 512 pixels	2048 × 512 pixels
Taille de pixel	13.5 µm × 13.5 µm	13.5 µm × 13.5 µm	13.5 µm × 13.5 µm	13.5 µm × 13.5 µm	13.5 µm × 13.5 µm
Refroidissement du capteur CCD	Min. -60°C to 20°C, forced air or liquid cooling	Min. -60°C to 20°C, forced air or liquid cooling	Min. -60°C to 20°C, forced air or liquid cooling	Min. -60°C to 20°C, forced air or liquid cooling	Min. -60°C to 20°C, forced air or liquid cooling
Gain	High: 1.0 counts/e- Low: 0.4 counts/e-	High: 1.0 counts/e- Low: 0.4 counts/e-	High: 1.0 counts/e- Low: 0.4 counts/e-	High: 1.0 counts/e- Low: 0.4 counts/e-	High: 1.0 counts/e- Low: 0.4 counts/e-
Liaison de données	USB, Gigabit Ethernet	USB, Gigabit Ethernet	USB, Gigabit Ethernet	USB, Gigabit Ethernet	USB, Gigabit Ethernet
Distance bride - plan focal	10.0 mm	10.0 mm	10.0 mm	10.0 mm	10.0 mm
Masse (g)	1300	1300	1300	1300	1300
Type de capteur CCD	Front-illuminated	Back-illuminated, enhanced process	Back-illuminated	Back-illuminated, enhanced process	Front-illuminated
Revêtement de capteur	-	Broadband UV antireflective	Midband antireflective	UV antireflective	Lumogen
Full well capacity	100 k e-	100 k e-	100 k e-	100 k e-	100 k e-
Prix	Request a quote	Request a quote	Request a quote	Request a quote	Request a quote
