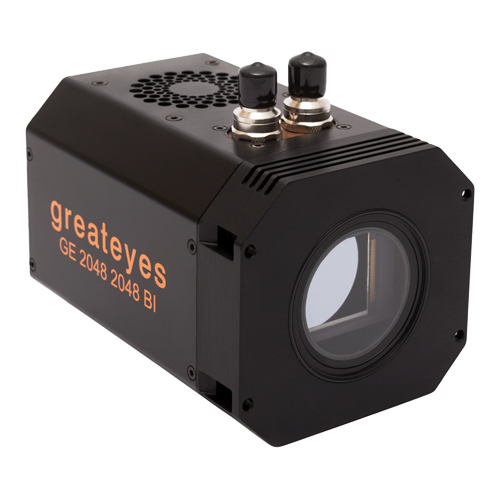

GE 2048 2048 BI UV3

Plus de vues

GE 2048 2048 BI UV3

This series of highly sensitive, cooled cameras is equipped with ultra-low noise 16-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the NIR, VIS and UV range. The detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various scientific CCD sensors with different technologies and coatings with quantum efficiencies up to 95%.

Zone d'image	27.6 mm × 27.6 mm
Format de pixel	2048 × 2048 pixels
Taille de pixel	13.5 µm × 13.5 µm
Refroidissement du capteur CCD	Min. -60°C to 20°C, forced air or liquid cooling
Gain	High: 1.0 counts/e- Low: 0.4 counts/e-
Liaison de données	USB, Gigabit Ethernet
Distance bride - plan focal	9.0 mm
Dimensions (H x W x L)	9.1 cm (3.58") x 9.7 cm (3.82") x 13.6 cm (5.35")
Masse (g)	1700
Type de capteur CCD	Back-illuminated, enhanced process
Revêtement de capteur	UV antireflective
Full well capacity	150 k e-

Description

Détails

Fonctionnalités

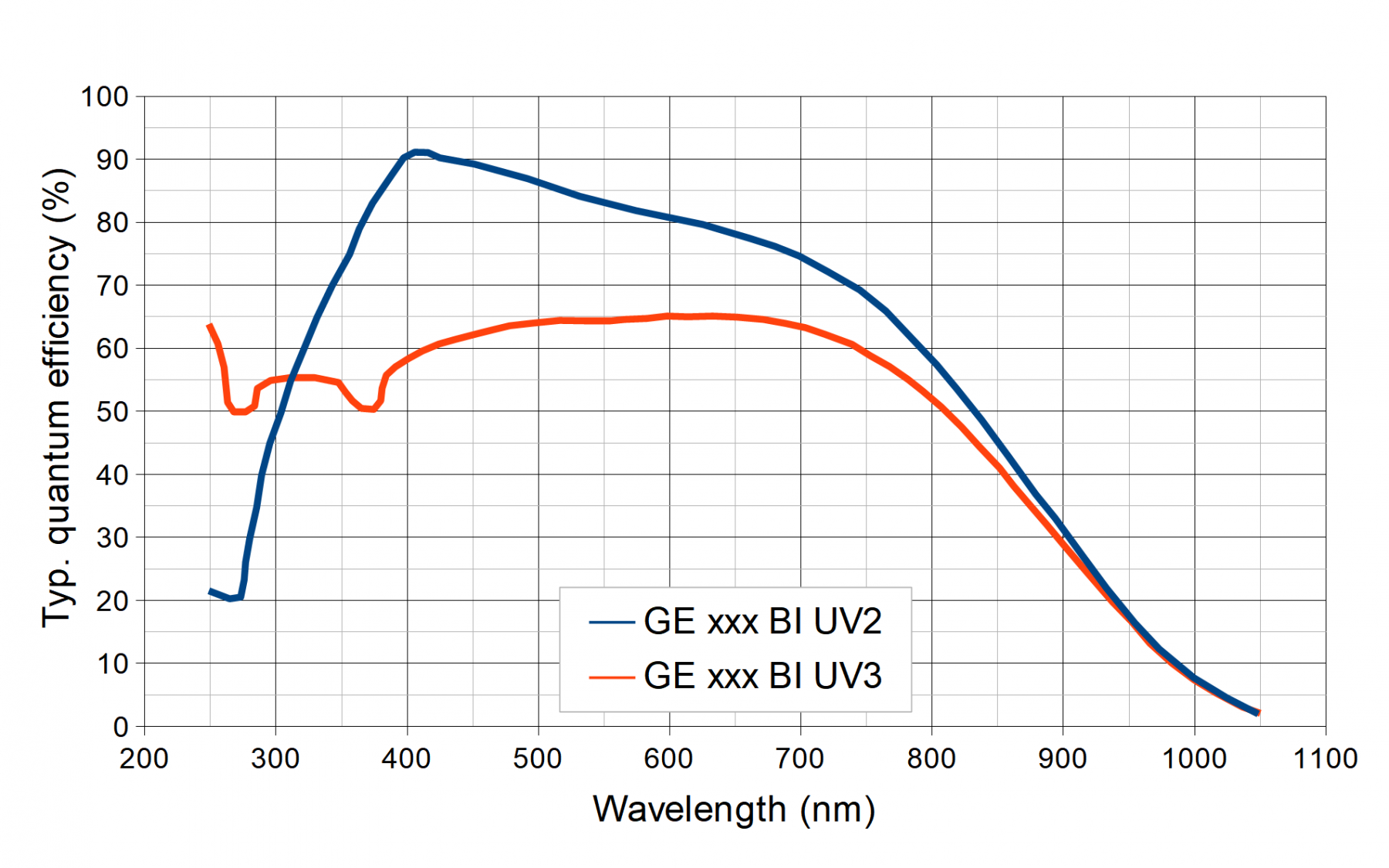

Up to 60% quantum efficiency
Back-illuminated CCD
UV antireflective coating
