GE 1024 256 BI UV2

Plus de vues

GE 1024 256 BI UV2

This series of highly sensitive, cooled cameras is equipped with ultra-low noise 16-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the NIR, VIS and UV range. The detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various scientific CCD sensors with different technologies and coatings with quantum efficiencies up to 95%.

Zone d'image	26.6 mm × 6.7 mm
Format de pixel	1024 × 256 pixels
Taille de pixel	26 µm × 26 µm
Refroidissement du capteur CCD	Min. -60°C to 20°C, forced air or liquid cooling
Gain	High: 1.0 counts/e- Low: 0.2 counts/e-
Liaison de données	USB, Gigabit Ethernet
Distance bride - plan focal	10.0 mm
Dimensions (H x W x L)	10.0 cm (3.94") x 6.2 cm (2.44") x 13.0 cm (5.12")
Masse (g)	1300
Type de capteur CCD	Back-illuminated, enhanced process
Revêtement de capteur	Broadband UV antireflective
Full well capacity	500 k e-

Description

Détails

Fonctionnalités

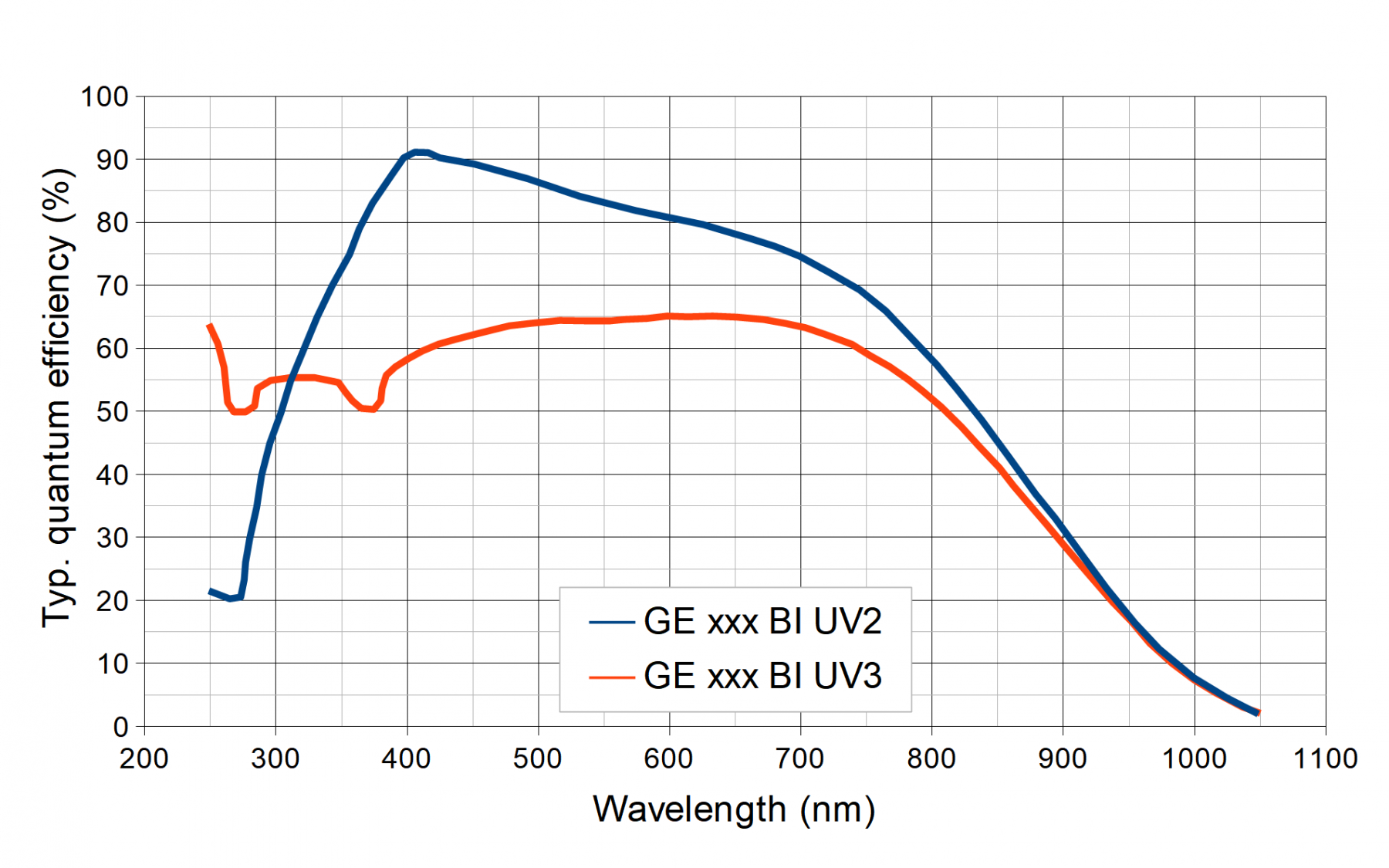

Up to 90% quantum efficiency
Back-illuminated CCD
Broadband UV antireflective coating
Outstanding near-UV sensitivity
