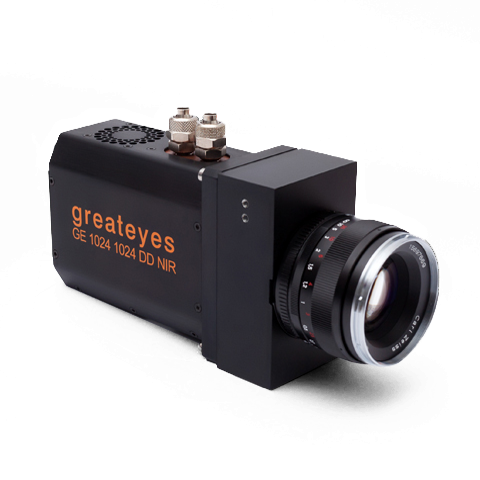

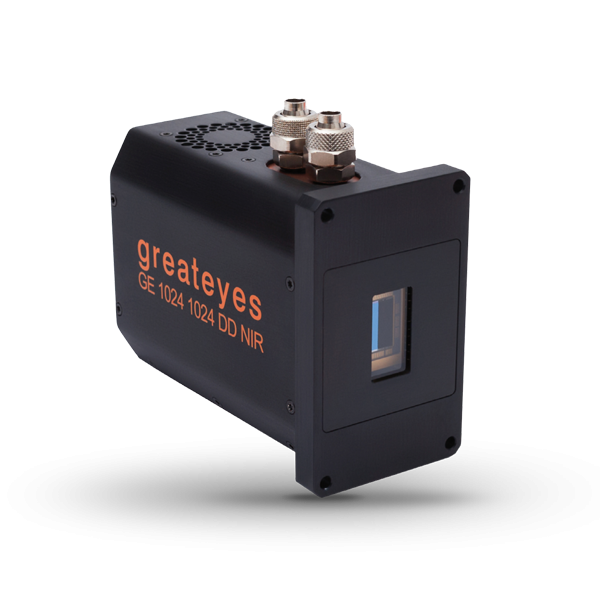

GE 1024 1024 series

Plus de vues

GE 1024 1024 series

This series of highly sensitive, cooled cameras is equipped with ultra-low noise 16-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the NIR, VIS and UV range. The detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various scientific CCD sensors with different technologies and coatings with quantum efficiencies up to 95%.

Dimensions (H x W x L)	10.0 cm (3.94") x 6.2 cm (2.44") x 13.0 cm (5.12")
Fréquence de lecture des pixels	500 kHz, 1 MHz, 3 MHz
Résolution du convertisseur A/N	16-bit, 18-bit (optional)
Included software	greateyes Vision software for Windows 7 / 10
SDK and drivers	DLLs for Windows 7 / 10, Linux, EPICS and LabVIEW driver
Source de courant	110 - 240 VAC, 50 - 60 Hz, max. 1 A
Linéarité	Better than 99%

Description

Détails

Fonctionnalités

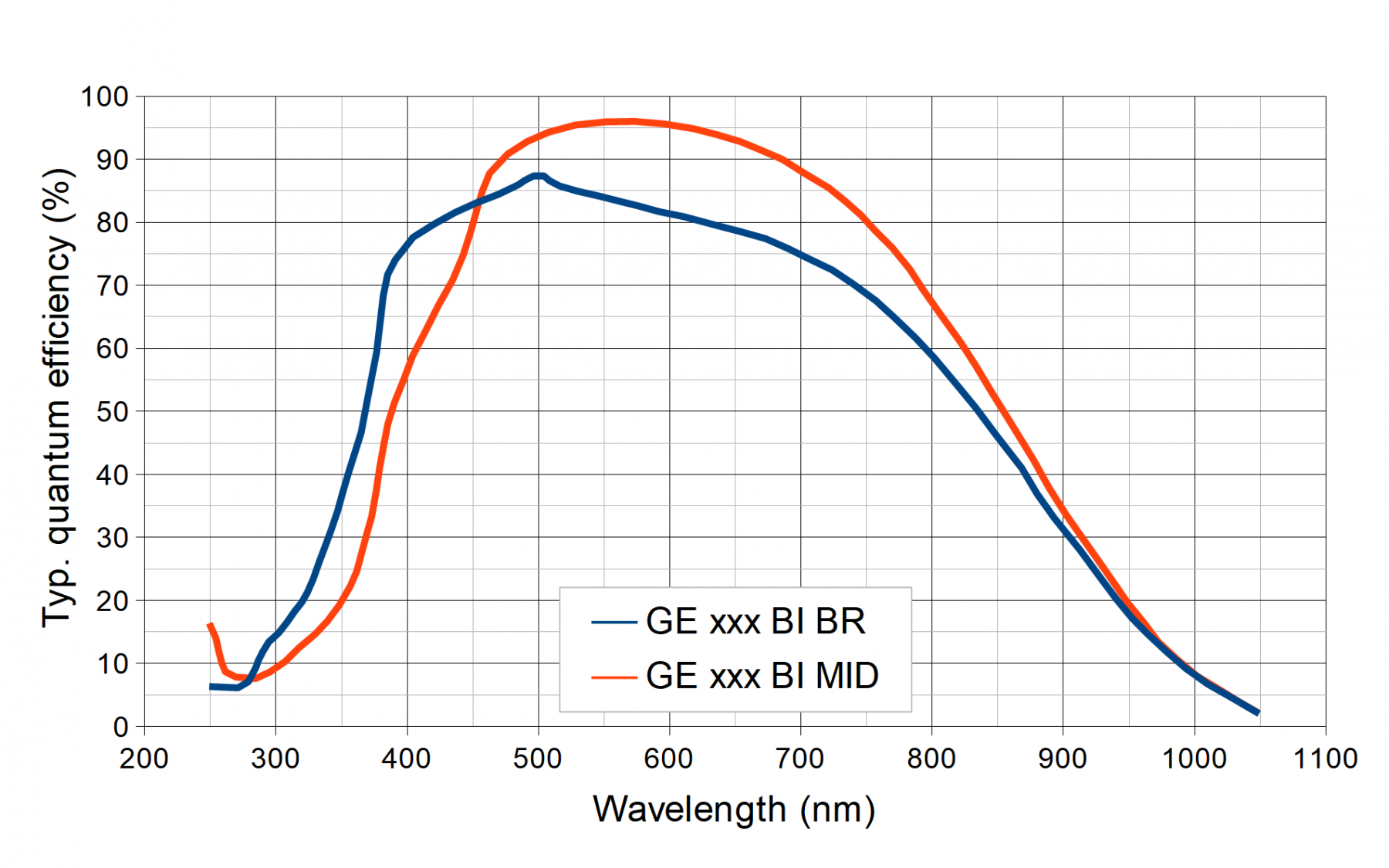

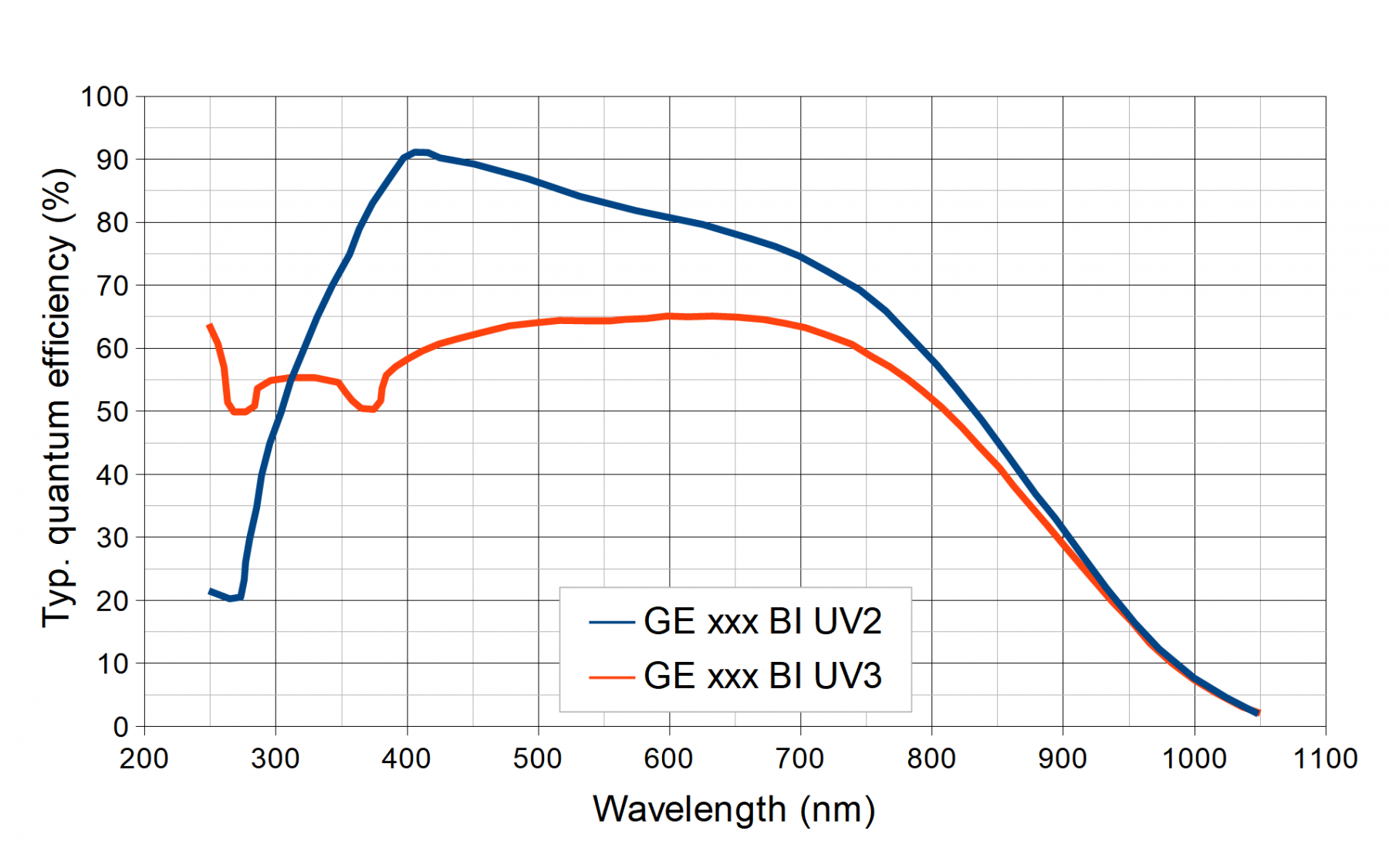

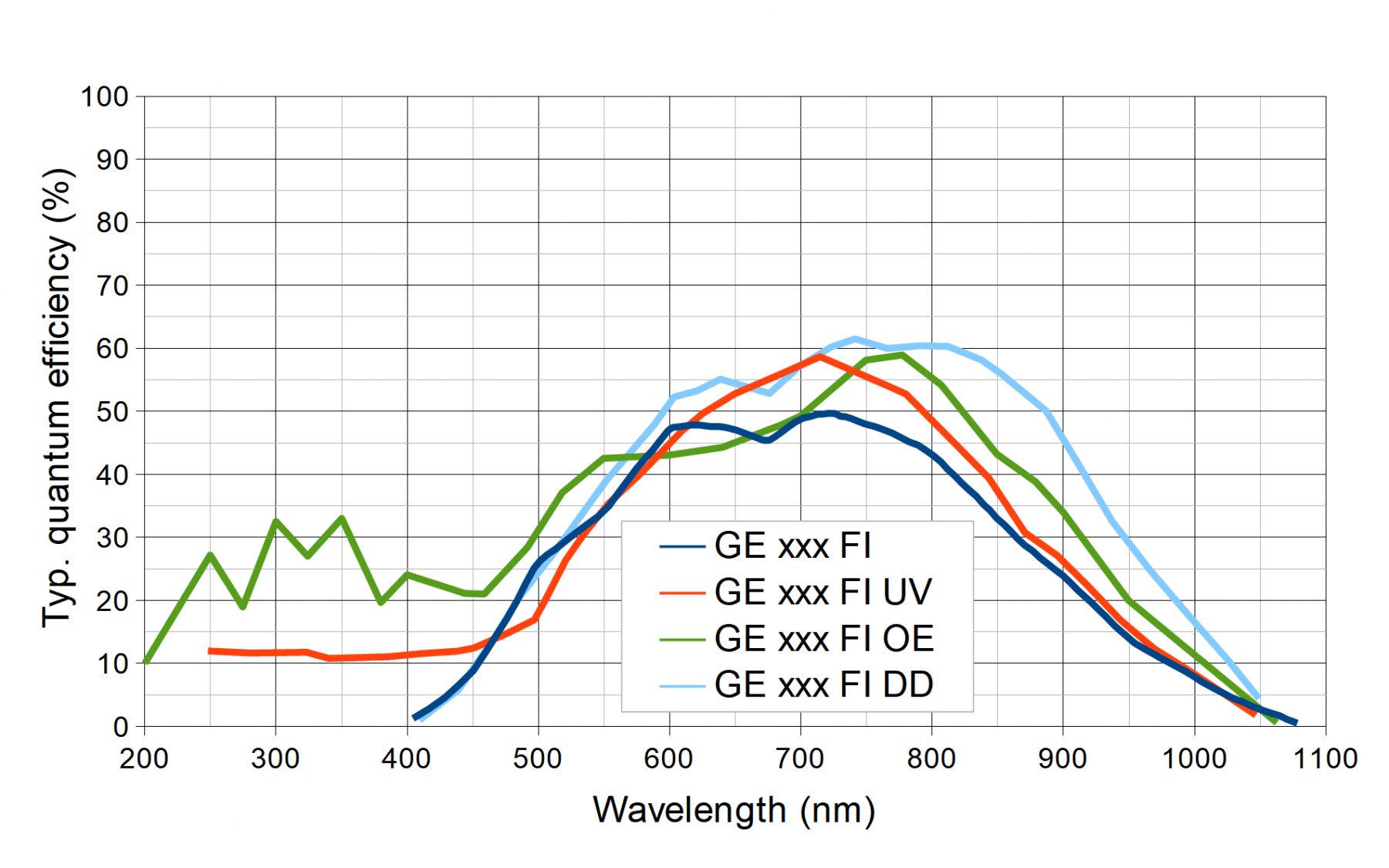

Up to 95% peak quantum efficiency
Max. full well capacity of 120 ke^-
Scientific low-noise CCD sensors
Compact camera design

Nom	GE 1024 1024 BI MID	GE 1024 1024 FI	GE 1024 1024 DD NIR	GE 1024 1024 BI UV3	GE 1024 1024 DD MU2	GE 1024 1024 BI BR
Zone d'image	13.3 mm × 13.3 mm	13.3 mm × 13.3 mm	13.3 mm × 13.3 mm	13.3 mm × 13.3 mm	13.3 mm × 13.3 mm	13.3 mm × 13.3 mm
Format de pixel	1024 × 1024 pixels	1024 × 1024 pixels	1024 × 1024 pixels	1024 × 1024 pixels	1024 × 1024 pixels	1024 × 1024 pixels
Taille de pixel	13 µm × 13 µm	13 µm × 13 µm	13 µm × 13 µm	13 µm × 13 µm	13 µm × 13 µm	13 µm × 13 µm
Refroidissement du capteur CCD	Min. -60°C to 20°C, forced air or liquid cooling	Min. -60°C to 20°C, forced air or liquid cooling	Min. -60°C to 20°C, forced air or liquid cooling	Min. -60°C to 20°C, forced air or liquid cooling	Min. -60°C to 20°C, forced air or liquid cooling	Min. -60°C to 20°C, forced air or liquid cooling
Gain	High: 1.0 counts/e- Low: 0.4 counts/e-	High: 1.0 counts/e- Low: 0.4 counts/e-	High: 1.0 counts/e- Low: 0.4 counts/e-	High: 1.0 counts/e- Low: 0.4 counts/e-	High: 1.0 counts/e- Low: 0.4 counts/e-	High: 1.0 counts/e- Low: 0.4 counts/e-
Liaison de données	USB, Gigabit Ethernet	USB, Gigabit Ethernet	USB, Gigabit Ethernet	USB, Gigabit Ethernet	USB, Gigabit Ethernet	USB, Gigabit Ethernet
Distance bride - plan focal	10.0 mm	10.0 mm	10.0 mm	10.0 mm	10.0 mm	10.0 mm
Masse (g)	1300	1300	1300	1300	1300	1300
Type de capteur CCD	Back-illuminated	Front-illuminated	Back-illuminated, deep depletion, fringe suppression	Back-illuminated	Back-illuminated, deep depletion, fringe suppression	Back-illuminated
Revêtement de capteur	Midband antireflective	-	NIR antireflective	UV antireflective	Multiband antireflective	Broadband antireflective
Full well capacity	100 k e-	100 k e-	120 k e-	100 k e-	120 k e-	100 k e-
