GE 1024 1024 DD MU2

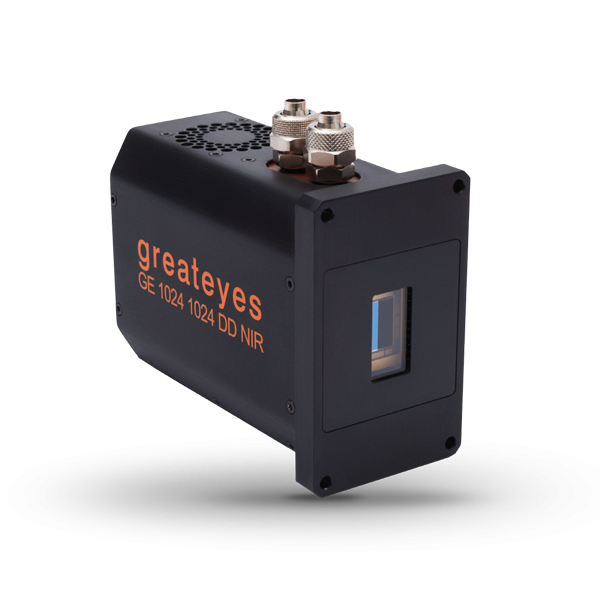

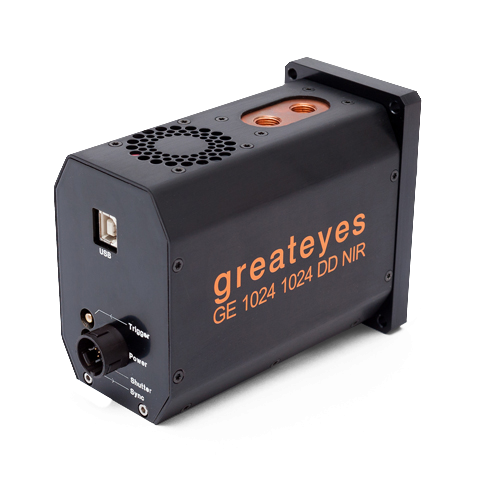

This series of highly sensitive, cooled cameras is equipped with ultra-low noise 16-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the NIR, VIS and UV range. The detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various scientific CCD sensors with different technologies and coatings with quantum efficiencies up to 95%.

Zone d'image	13.3 mm × 13.3 mm
Format de pixel	1024 × 1024 pixels
Taille de pixel	13 µm × 13 µm
Refroidissement du capteur CCD	Min. -60°C to 20°C, forced air or liquid cooling
Gain	High: 1.0 counts/e- Low: 0.4 counts/e-
Liaison de données	USB, Gigabit Ethernet
Distance bride - plan focal	10.0 mm
Dimensions (H x W x L)	10.0 cm (3.94") x 6.2 cm (2.44") x 13.0 cm (5.12")
Masse (g)	1300
Type de capteur CCD	Back-illuminated, deep depletion, fringe suppression
Revêtement de capteur	Multiband antireflective
Full well capacity	120 k e-

Description

Détails

Fonctionnalités

Up to 95% VIS quantum efficiency
Back-illuminated, deep depletion CCD
Multiband antireflective coating
Balanced QE from UV to NIR range

Request a quote
