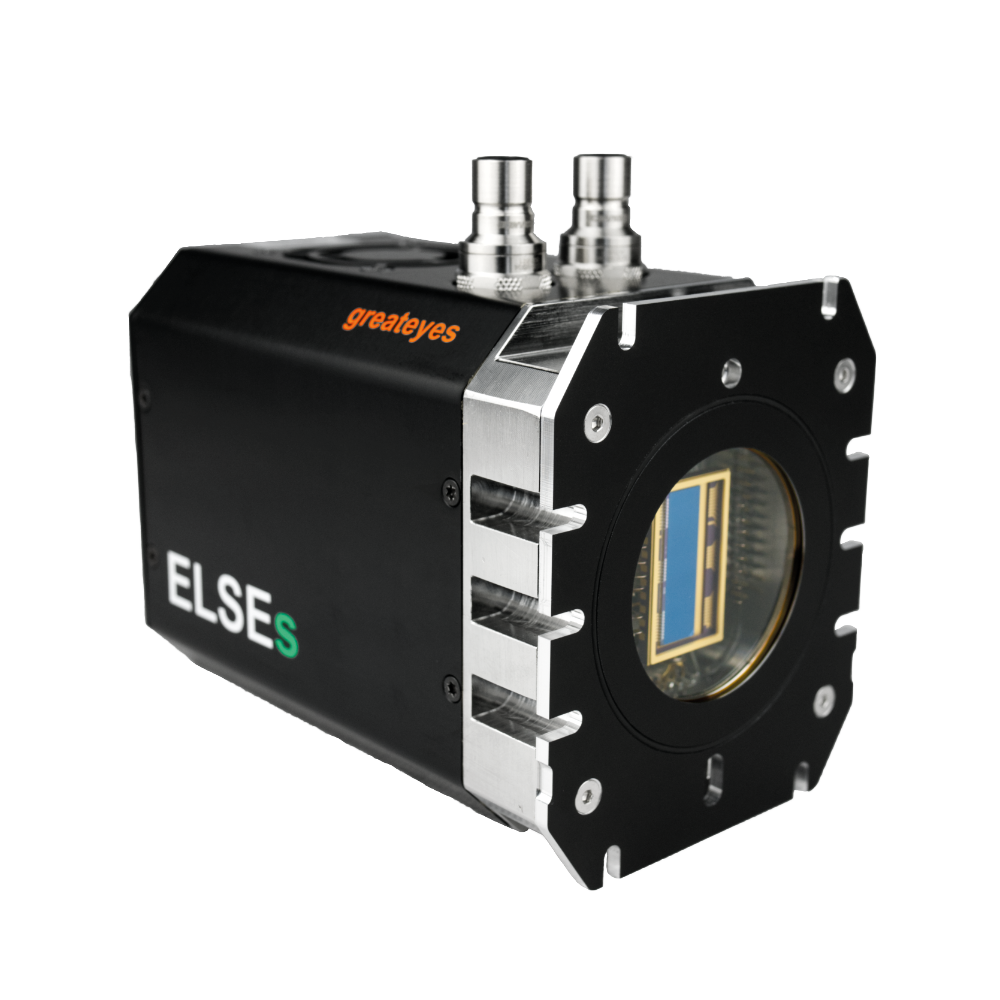

ELSEs 1k256 BI UV2

Plus de vues

ELSEs 1k256 BI UV2

This series of highly sensitive, cooled cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the NIR, VIS and UV range. The detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various scientific CCD sensors with different technologies and coatings with quantum efficiencies up to 95%.

Zone d'image 26.6 mm × 6.7 mm
Format de pixel 1024 × 255 pixels
Taille de pixel 26 µm × 26 µm
Refroidissement du capteur CCD Min. -100°C to 20°C,
forced air or liquid cooling
Distance bride - plan focal 10.0 mm
Gain High: 1.0 counts/e-
Low: 0.2 counts/e-
Type de capteur CCD Back-illuminated
Revêtement de capteur Broadband UV antireflective
Full well capacity 500 k e-
Liaison de données USB, Gigabit Ethernet
Dimensions (H x W x L) 8.3 cm × 10.0 cm × 13.1 cm (3.27ʺ × 3.94ʺ × 5.16ʺ)
Masse (g) 2200
Description

Détails

This series of highly sensitive, cooled cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the NIR, VIS and UV range. The detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various scientific CCD sensors with different technologies and coatings with quantum efficiencies up to 95%.

Fonctionnalités
  • Back-illuminated CCD
  • Broadband UV antireflective coating
  • Up to 90% quantum efficiency
  • Outstanding near-UV sensitivity
