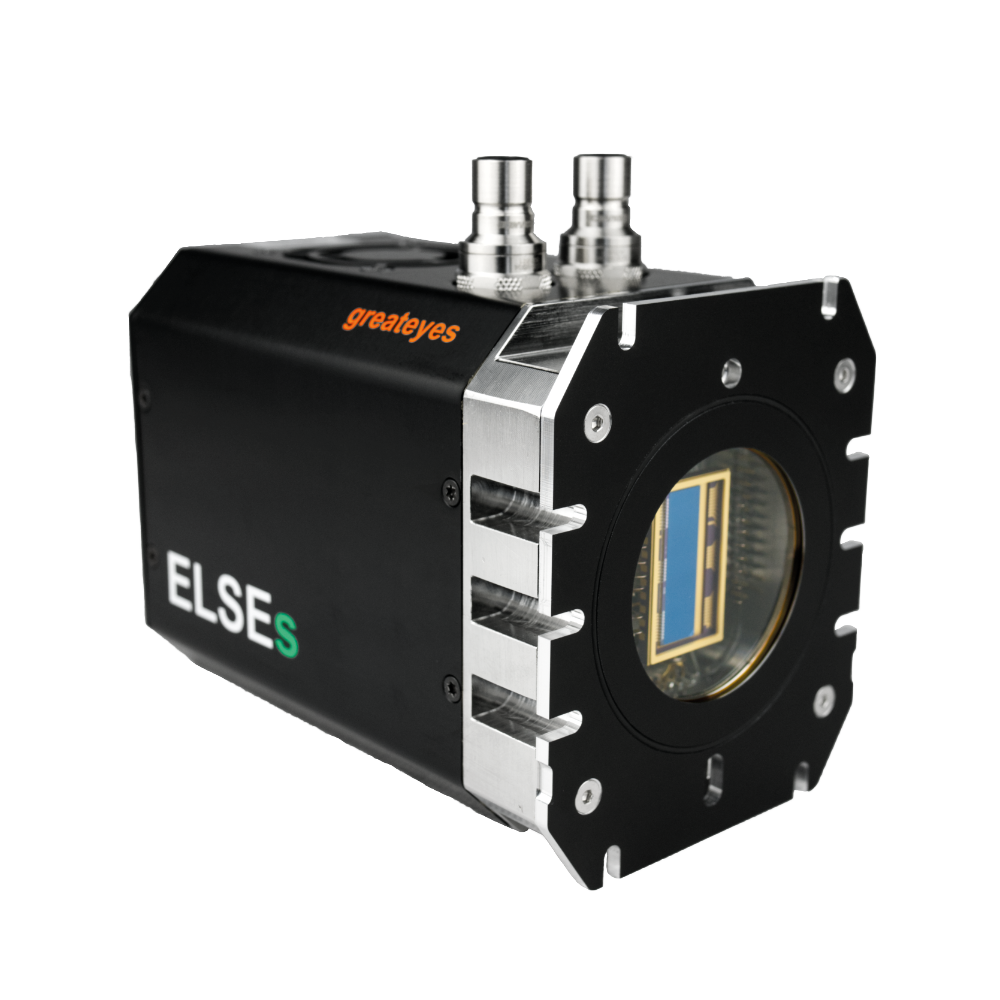

ELSEs 1k128 BI MID

This series of highly sensitive, cooled cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the NIR, VIS and UV range. The detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various scientific CCD sensors with different technologies and coatings with quantum efficiencies up to 95%.

Zone d'image 26.6 mm × 3.3 mm
Format de pixel 1024 × 128 pixels
Taille de pixel 26 µm × 26 µm
Refroidissement du capteur CCD Min. -60°C to 20°C,
forced air or liquid cooling
Distance bride - plan focal 10.0 mm
Gain High: 1.0 counts/e-
Low: 0.2 counts/e-
Type de capteur CCD Back-illuminated
Revêtement de capteur Midband antireflective
Full well capacity 500 k e-
Liaison de données USB, Gigabit Ethernet
Dimensions (H x W x L) 10.0 cm (3.94") x 6.2 cm (2.44") x 13.0 cm (5.12")
Masse (g) 1300
Description

Détails

This series of highly sensitive, cooled cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the NIR, VIS and UV range. The detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various scientific CCD sensors with different technologies and coatings with quantum efficiencies up to 95%.

Fonctionnalités
  • Up to 95% VIS quantum efficiency
  • Back-illuminated CCD
  • Midband antireflective coating
