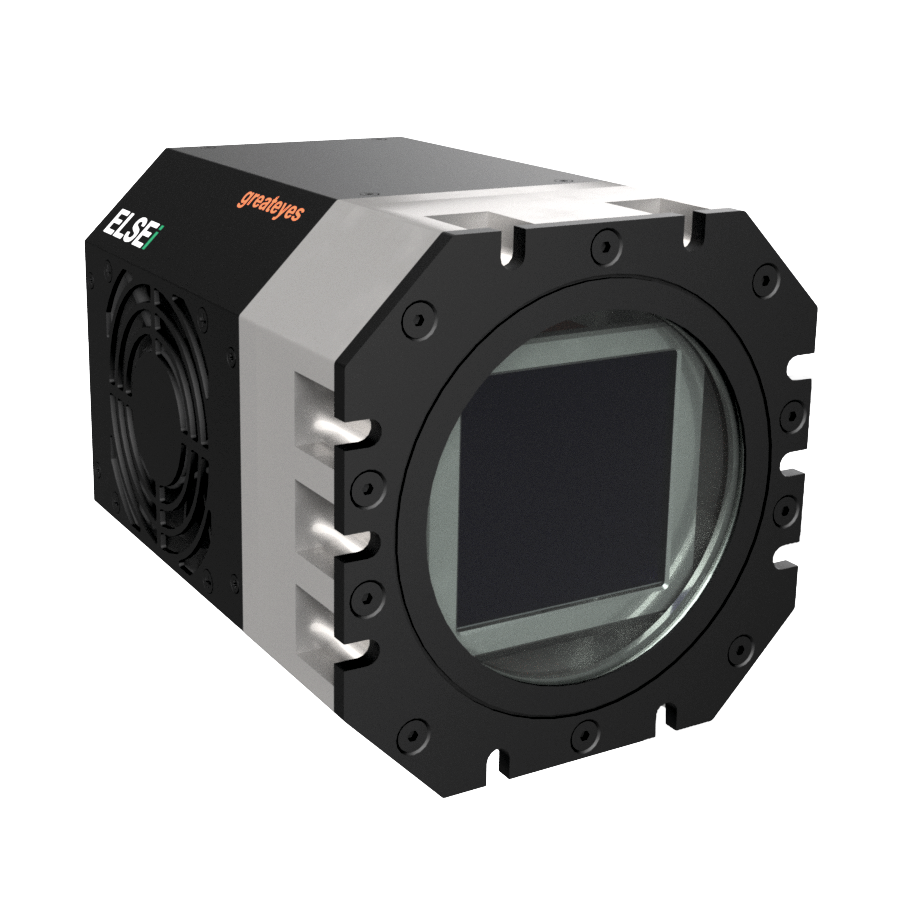

ELSEi 4k4k BI UV4

Plus de vues

ELSEi 4k4k BI UV4

This series of highly sensitive, cooled cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the NIR, VIS and UV range. The detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various scientific CCD sensors with different technologies and coatings with quantum efficiencies up to 95%.

Zone d'image 61.4 mm × 61.4 mm
Format de pixel 4096 × 4096 pixels
Taille de pixel 15 µm × 15 µm
Refroidissement du capteur CCD Min. -90°C to 20°C,
forced air or liquid cooling
Distance bride - plan focal 10.0 mm
Gain High: 1.0 counts/e-
Low: 0.4 counts/e-
Type de capteur CCD Back-illuminated
Revêtement de capteur Astro-broadband antireflective
Full well capacity 350 k e-
Liaison de données USB, Gigabit Ethernet
Dimensions (H x W x L) 13.7 cm × 13.7 cm × 17.1 cm (5.39ʺ × 5.39ʺ × 6.71ʺ)
Masse (g) 5400
Description

Détails

This series of highly sensitive, cooled cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the NIR, VIS and UV range. The detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various scientific CCD sensors with different technologies and coatings with quantum efficiencies up to 95%.

Fonctionnalités
  • Back-illuminated CCD
  • Astro-broadband antireflective coating

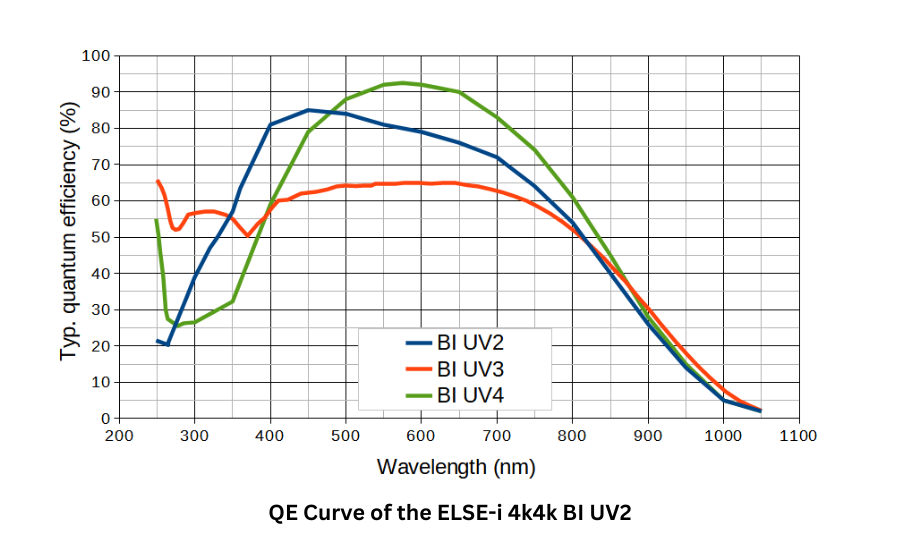

  • Up to 95% quantum efficiency
