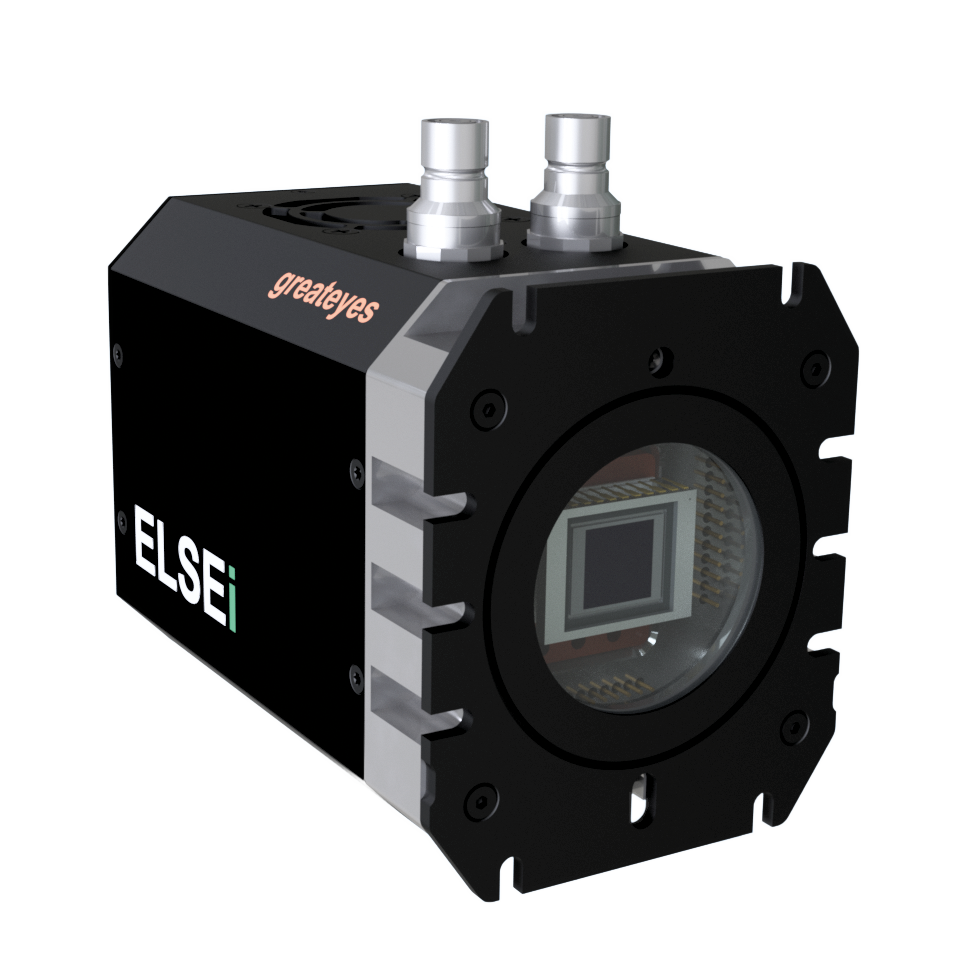

ELSEi 1k1k BI UV3

This series of highly sensitive, cooled cameras are equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the NIR, VIS and UV range. The detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various scientific CCD sensors with different technologies and coatings with quantum efficiencies up to 95%.

Zone d'image	13.3 mm × 13.3 mm
Format de pixel	1024 × 1024 pixels
Taille de pixel	13 µm × 13 µm
Refroidissement du capteur CCD	Min. -100°C to 20°C, forced air or liquid cooling
Distance bride - plan focal	10.0 mm
Gain	High: 1.0 counts/e- Low: 0.4 counts/e-
Type de capteur CCD	Back-illuminated
Revêtement de capteur	UV antireflective
Full well capacity	100 k e-
Liaison de données	USB, Gigabit Ethernet
Dimensions (H x W x L)	8.3 cm × 10.0 cm × 13.1 cm (3.27ʺ × 3.94ʺ × 5.16ʺ)
Masse (g)	2200

Description

Détails

Fonctionnalités

Back-illuminated CCD
UV antireflective coating
Up to 60% VIS quantum efficiency
