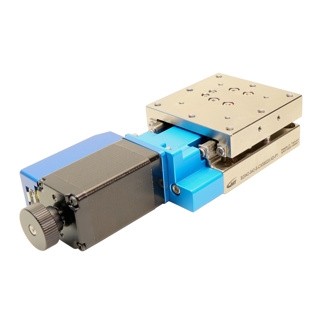

CXS5030 - 50 x 50 mm Motorized Linear Stage, 30 mm travel

Plus de vues

The CXS series linear translation stage has a compact and cost-optimized design. The difference to other motorized positioning stages is that the entire body and the guide elements are made of a stainless steel profile, which means that separate guides are not required. This has the decisive advantage of higher accuracy and, above all, improved thermal stability.

Taille de la plate-forme, mm	50 x 50
Course linéaire	30 mm
Maximum load	60N
Masse (kg)	0.72

Description

Détails

Fonctionnalités

The advantages of the GMT high Precision motorized stage systems:

Cost-optimized concept
Repeatability < 1µm
Ball screw for high cycles and speeds
Made of stainless steel
High thermal stability
Can be combined XY- or XYZ stages
2-phase stepper motor from Nanotec
Optional closed-loop stepper motors, optionally with integrated or external controller
Harting ix connector® – for a secure connection
Optical limit switches
Easy to use - Plug & Play
Compatible with other manufacturers

Applications

For use in research
laser and measurement technology
in laboratories and in the industrial sector
for the automation of precise and complex processes
