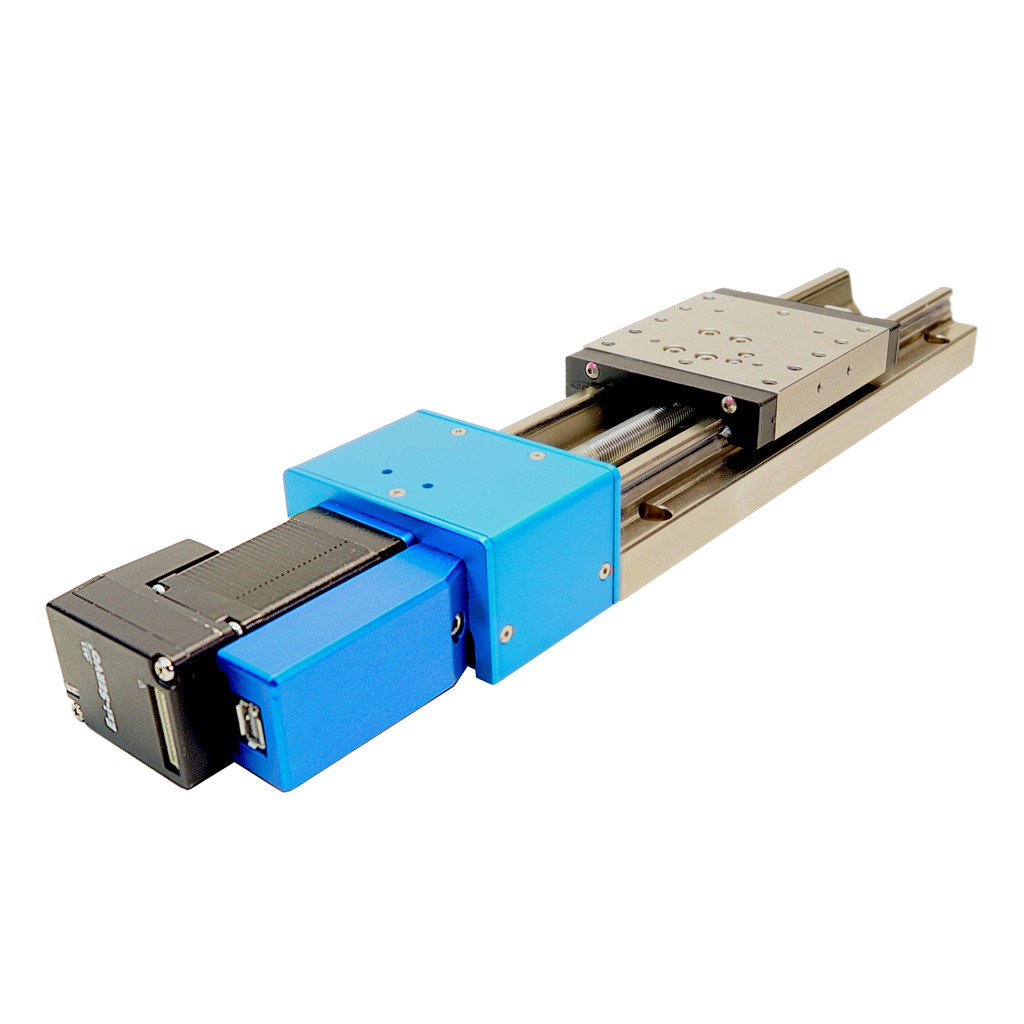

CXN60300-P2 - 60 x 60 mm Motorized Linear Stage, 300 mm travel

The CXN series linear translation stage has a compact and cost-optimized design. The difference to other motorized positioning stages is that the entire body and the guide elements are made of a stainless steel profile, which means that separate guides are not required. This has the decisive advantage of higher accuracy and, above all, improved thermal stability.

Taille de la plate-forme, mm 60 x 60
Course linéaire 300 mm
Maximum load 140N
Pas de vis, mm 2 mm
Masse (kg) 2.6
Description

Détails

The CXN series linear translation stage has a compact and cost-optimized design. The difference to other motorized positioning stages is that the entire body and the guide elements are made of a stainless steel profile, which means that separate guides are not required. This has the decisive advantage of higher accuracy and, above all, improved thermal stability.

Fonctionnalités

The advantages of the GMT high Precision motorized stage systems:

  • Cost-optimized concept
  • Repeatability < 1µm
  • Ball screw for high cycles and speeds
  • Made of stainless steel
  • High thermal stability
  • Can be combined XY- or XYZ stages
  • 2-phase stepper motor from Nanotec
  • Optional closed-loop stepper motors, optionally with integrated or external controller
  • Harting ix connector® – for a secure connection
  • Optical limit switches
  • Easy to use - Plug & Play
  • Compatible with other manufacturers
Applications
  • For use in research
  • laser and measurement technology
  • in laboratories and in the industrial sector
  • for the automation of precise and complex processes
