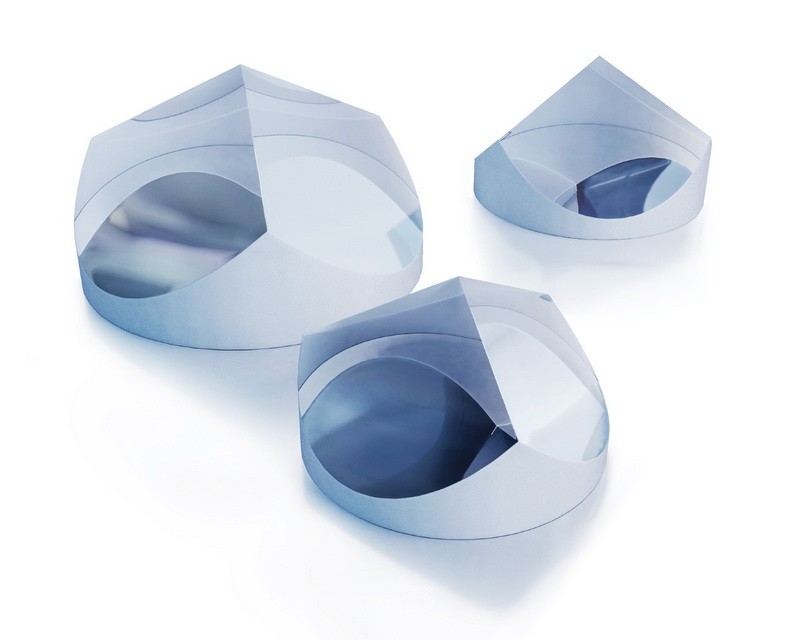

Corner Cube Retroreflectors

BK7 or UVFS Corner cube retroreflectors designed to deviate incident light by 180 degrees independently of an angle of incidence.

Angular Deviation, arcsec ±5 arcsec
Beam Deviation 180° ± 30 arcsec
Ouverture utile, % >80%
Dimension Tolerances, mm +0.0/-0.2 mm
Chanfreins de protection <0.25 mm x 45°
Planéité de surface λ/10 @ 632.8 nm
Qualité de surface, s-d 40/20 S/D
Description

Détails

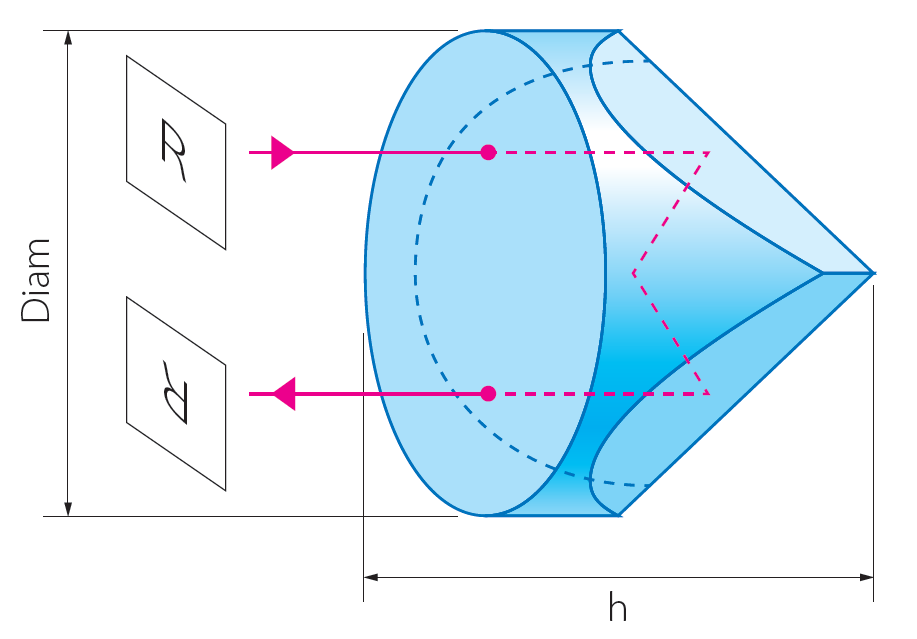

These prisms have 3 mirror surfaces making angles of 90 deg to each other, juxtaposed to form the corner of a cube with the entrance face perpendicular to cube diagonal. All beams, despite of incident direction, are reflected back to the original direction. Corner cubes are used in high precision applications or with lasers over very long distances.

Fonctionnalités
  • Incident light deviates by 180 deg independently of the angle of incidence
Name TraitementsDimensions, mmMaterial Prix Quantité

1-PCR-1-0254

UncoatedØ25.4 x 19.0BK7
138,00 $US

1-PCR-1-0381

UncoatedØ38.1 x 28.5BK7
180,00 $US

1-PCR-2-0254

UncoatedØ25.4 x 19.0UVFS
218,00 $US
