CHARLIE 2k2k 11

Plus de vues

CHARLIE 2k2k 11

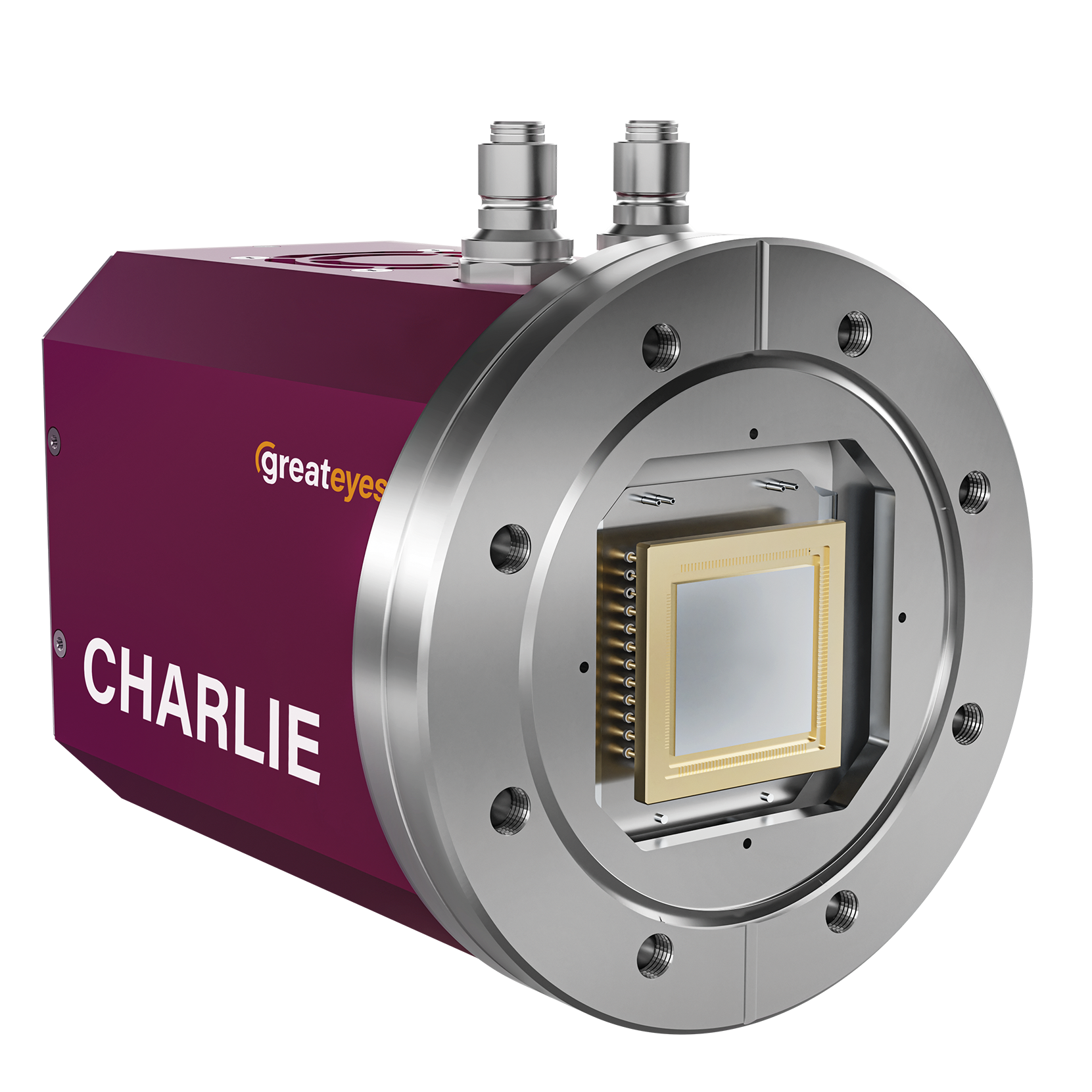

CHARLIE
State-of-the-art scientific camera with back-illuminated sCMOS sensor

Zone d'image	22.5 mm × 22.5 mm
Format de pixel	2048 × 2064 pixels
Taille de pixel	11 µm × 11 µm
Refroidissement du capteur sCMOS	Down to -50°C
Distance bride - plan focal	1.0 mm for CF DN 63 and 100
Gain	High: 1.0 counts/e- Low: 0.4 counts/e-
Type de capteur CCD	Back-illuminated
Full well capacity	91 ke- typ. (HDR Mode)
Liaison de données	USB, Gigabit Ethernet
Source de courant	80-264 VAC, 47-63 Hz, max. 1.1 A (230 V) / 1.9 A (115 V)
Dimensions (H x W x L)	Camera body without flange: 8.3 cm × 10.0 cm × 11.9 cm (3.27ʺ × 3.94ʺ × 4.69ʺ)
Masse (g)	3100

Description

Détails

CHARLIE, greateyes’ back-illuminated sCMOS camera, built on our decades of experience in ultra high vacuum (UHV), CHARLIE is specially designed for a broad range of applications in the EUV, VUV and X-ray range.

With low-noise electronics and deep cooling, CHARLIE delivers peak Quantum Efficiency, high full-well capacity, high dynamic range, and 12-bit SDR and 16-bit HDR modes.

Fonctionnalités

Back-illuminated sCMOS
Up to 99% quantum efficiency
High Dynamic Range of 95 dB
Vacuum compatibility: < 1 x 10^-9 mbar (UHV capability) with CF flange
