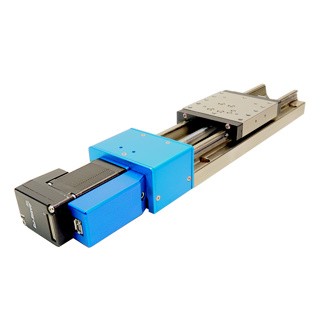

BXN60250-CI - 60 x 60 mm Motorized Linear Stage, 250 mm travel

Plus de vues

BXN60250-CI - 60 x 60 mm Motorized Linear Stage, 250 mm travel

This motorized positioning stage, whose body and guide elements consist of a coherent stainless steel profile, offers high thermal stability thanks to its monoblock design. A pre loaded ball screw with a ball cage is used as a guide mechanism for short and precise travel distances.

Taille de la plate-forme, mm 60 x 60
Course linéaire 250 mm
Maximum load 140N
Pas de vis, mm 2 mm
Masse (kg) 2.3
  • Description
  • Fonctionnalités
Description

Détails

This motorized positioning stage, whose body and guide elements consist of a coherent stainless steel profile, offers high thermal stability thanks to its monoblock design. A pre loaded ball screw with a ball cage is used as a guide mechanism for short and precise travel distances. In addition, a repeatability of up to 1µm is achieved.

In combination with the high-torque open loop 2-phase stepper motor ST2818L1006-B from Nanotec you can achieve a travel speed of up to 20mm/s at a step angle of 1.8° (full step) and a holding torque of 12.7Ncm

Please note that the associated power supply must be ordered separately. An ix cable with open strands in a length of 1.5m is included as standard.

Fonctionnalités
  • Open Loop
  • Nanotec 2 phase stepper motor
  • Optical limit switches
  • Plug & Play - Easy to use
