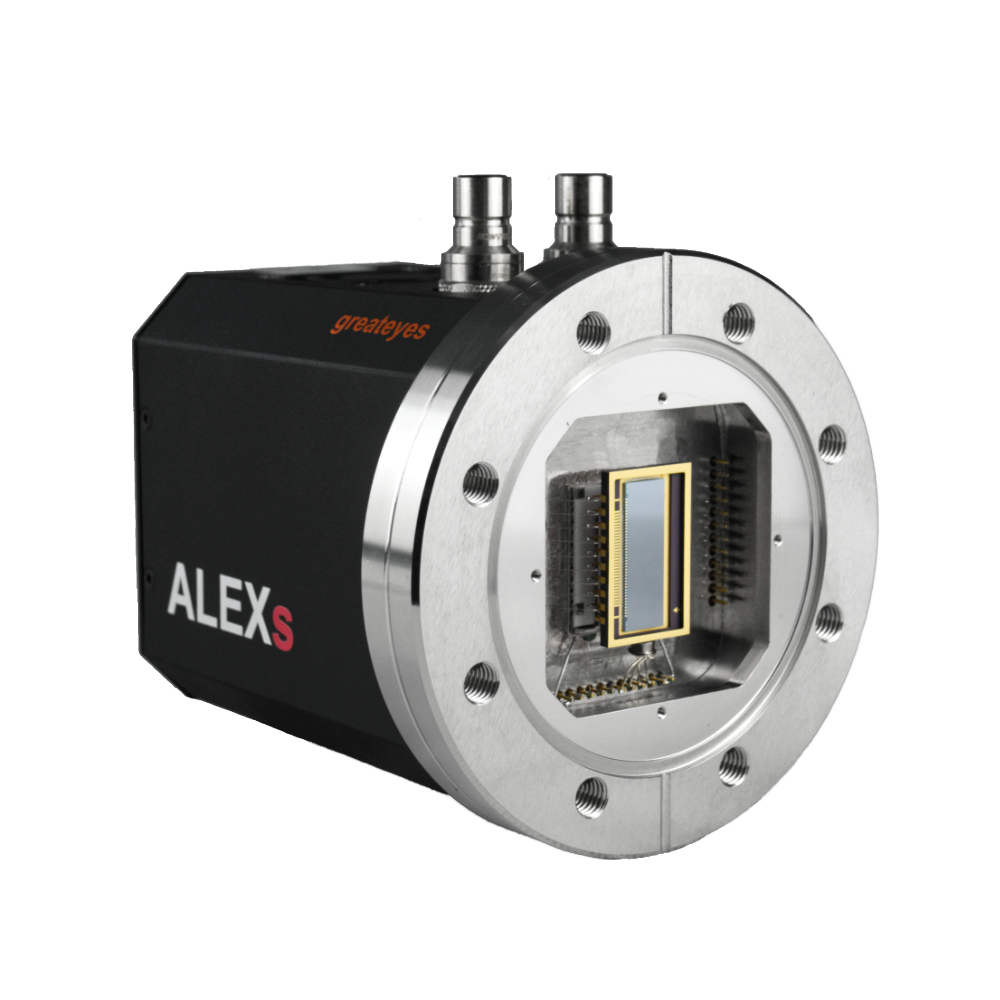

ALEXs 2k512 BI

This series of highly sensitive, cooled cameras with vacuum flange is equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, EUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various flange types and sensor technologies with quantum efficiencies up to 98%.

Zone d'image 27.6 mm × 6.9 mm
Format de pixel 2048 × 515 pixels
Taille de pixel 13.5 µm × 13.5 µm
Refroidissement du capteur CCD Min. -100°C to 20°C,
forced air or liquid cooling
Distance bride - plan focal 6 mm for CF DN63 flange
Gain High: 1.0 counts/e-
Low: 0.4 counts/e-
Type de capteur CCD Back-illuminated
Full well capacity 100 k e-
Liaison de données USB, Gigabit Ethernet
Dimensions (H x W x L) 8.3 cm × 10.0 cm × 10.9 cm (3.27ʺ × 3.94ʺ × 4.29ʺ)
Masse (g) 2900 (with CF DN63 flange)
Description

Détails

This series of highly sensitive, cooled cameras with vacuum flange is equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, EUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various flange types and sensor technologies with quantum efficiencies up to 98%.

Fonctionnalités
  • Back-illuminated CCD
  • Sensitive range: VUV to X-ray max. 10 keV
  • Up to 96% quantum efficiency
