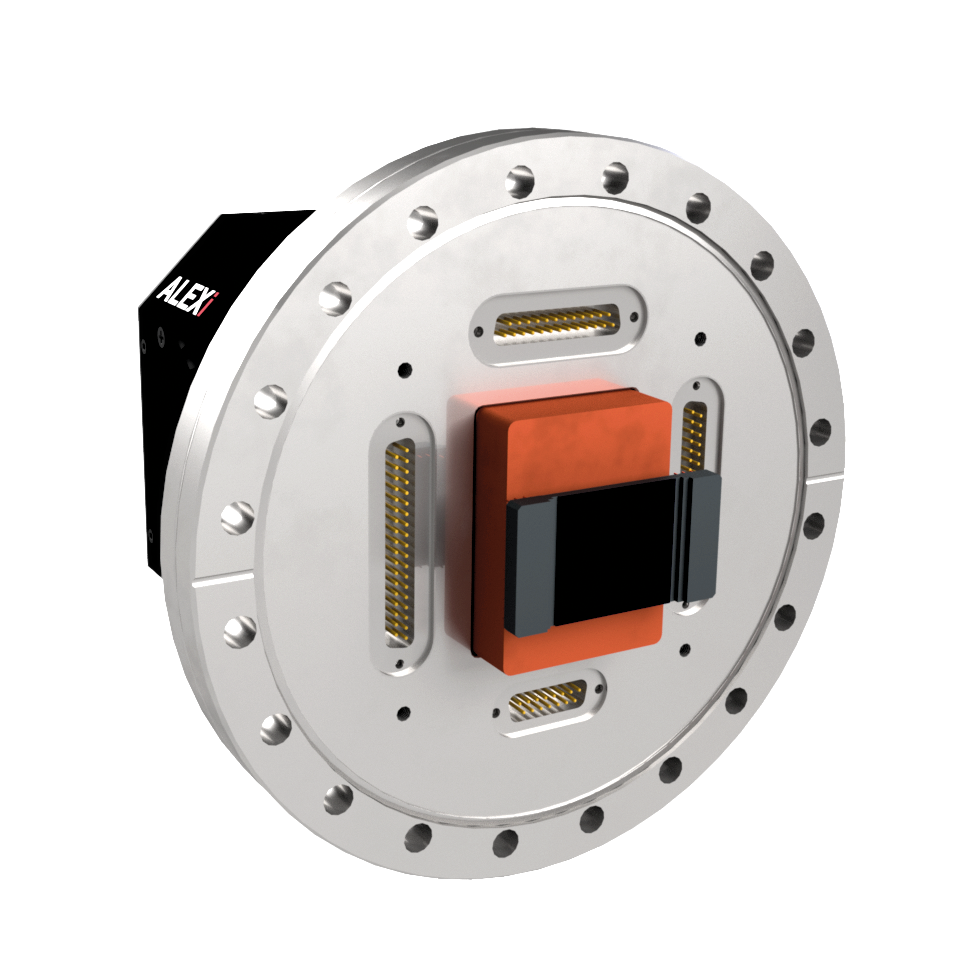

ALEXi 2k2k plus BI

This series of highly sensitive, cooled cameras with vacuum flange is equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, EUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various flange types and sensors with quantum efficiencies up to 97%.

Zone d'image	30.7 mm × 30.7 mm
Format de pixel	2048 × 2064 pixels
Taille de pixel	15 µm × 15 µm
Refroidissement du capteur CCD	Min. -90°C to 20°C, forced air or liquid cooling
Distance bride - plan focal	6 mm for CF DN63 flange
Gain	High: 1.0 counts/e- Low: 0.4 counts/e-
Type de capteur CCD	Back-illuminated
Full well capacity	150 k e-
Liaison de données	USB, Gigabit Ethernet
Source de courant	85-264 VAC, 47-63 Hz, max. 1.9 A (230 V) / 3.8 A (115 V)
Dimensions (H x W x L)	13.7 cm × 13.7 cm × 13.3 cm (5.39ʺ × 5.39ʺ × 5.24ʺ)
Masse (g)	12500

Description

Détails

Fonctionnalités

Up to 96% quantum efficiency, VUV to X-ray range
Back-illuminated CCD
High EUV sensitivity
