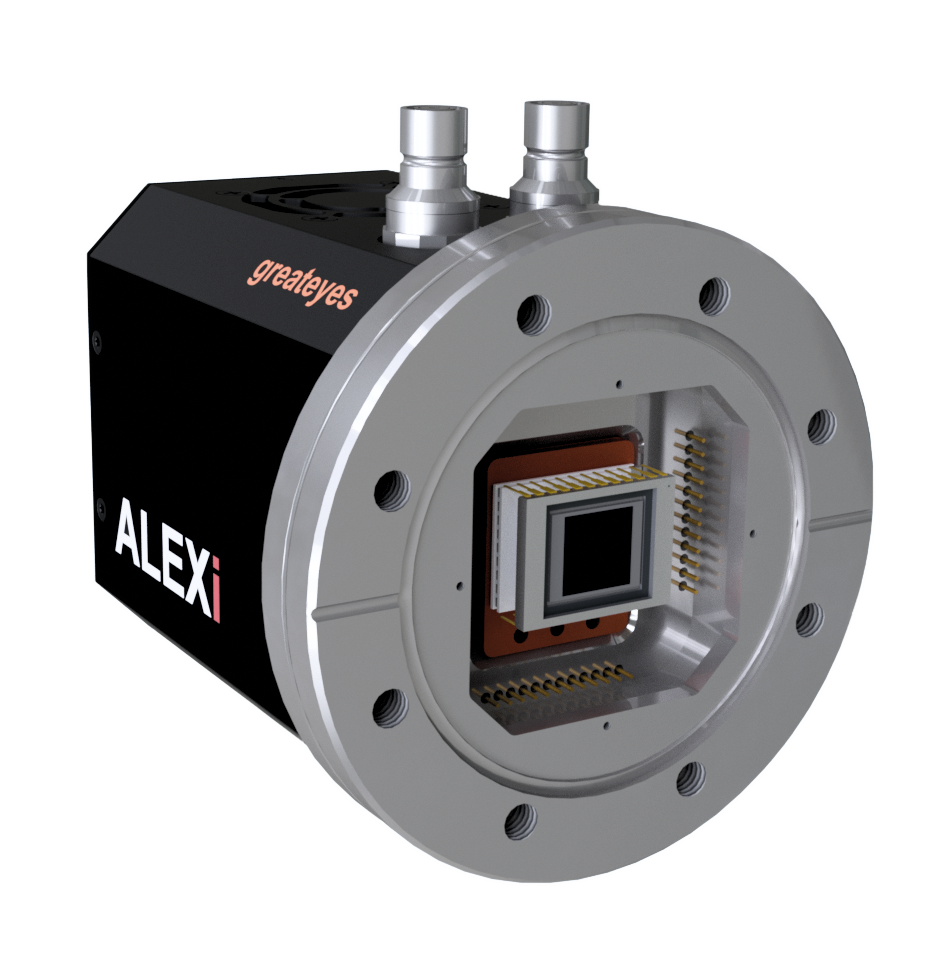

ALEXi 1k1k BI UV1

This series of highly sensitive, cooled cameras with vacuum flange is equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, EUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers various flange types and sensor technologies with quantum efficiencies up to 98%.

Zone d'image	13.3 mm × 13.3 mm
Format de pixel	1056 × 1027 pixels
Taille de pixel	13 µm × 13 µm
Refroidissement du capteur CCD	Min. -100°C to 20°C, forced air or liquid cooling
Distance bride - plan focal	6 mm for CF DN63 flange
Gain	High: 1.0 counts/e- Low: 0.4 counts/e-
Type de capteur CCD	Back-illuminated
Full well capacity	100 k e-
Liaison de données	USB, Gigabit Ethernet
Source de courant	80-264 VAC, 47-63 Hz, max. 1.1 A (230 V) / 1.9 A (115 V)
Dimensions (H x W x L)	8.3 cm × 10.0 cm × 10.9 cm (3.27ʺ × 3.94ʺ × 4.29ʺ)
Masse (g)	2900

Description

Détails

Fonctionnalités

Back-illuminated CCD
Up to 96% quantum efficiency, VUV to X-ray range
Excellent QE in the EUV and soft X-ray
