4-BSO-0505-1

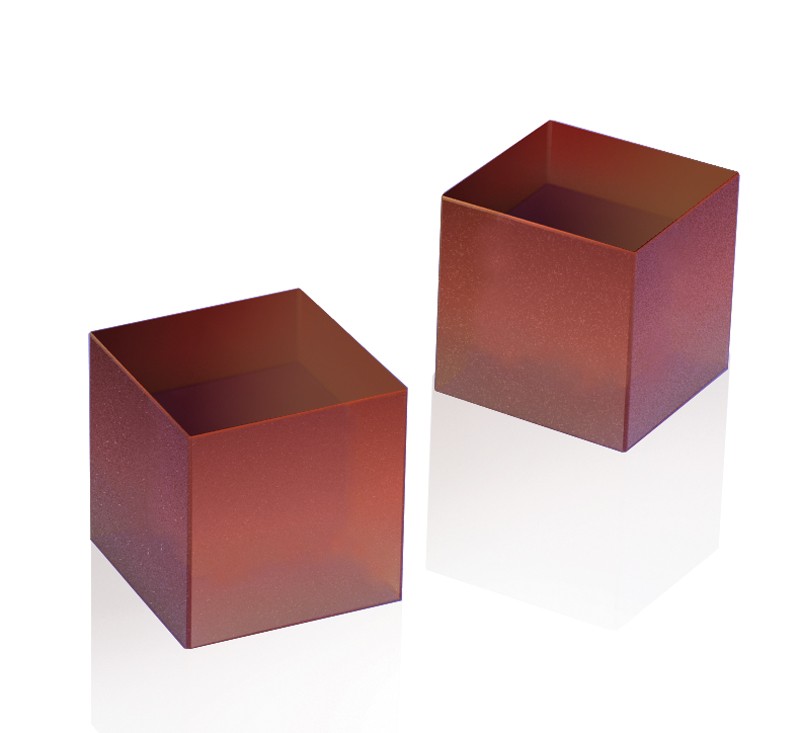

Bismuth Silicon Oxide Bi12SiO20 is a pale yellow, photoconductive electro-optic crystal which has found increasingly wide application.

Dimensions, mm 5x5x5
Cut 110
Electrodes yes
Traitements S1/S2 AR @ 532 nm
Description

Détails

The strong spectral dependence of the photoconductive properties of these crystals and their electrooptic properties makes it possible to develop a wide variety of devices including spatial light modulators, electrooptic sensors, hologram recording devices, phase conjugation, photorefractive incoherent-to-coherent optical converters, pockels readout optical memory (PROM), thin film optical waveguides, photorefraction.

Fonctionnalités
  • Wide range of applications
  • Perfect for electro-optical and acousto-optical applications
  • Suitable for pyroelectrical applications
  • High phase conjugation efficiency
  • Not soluble in water or organic solvents
Applications
  • Custom design production is available
  • Mass production available 500 pieces per month
  • Pockels readout optical memory (PROM)
  • Thin film optical waveguides
  • Photorefraction and phase conjugation
