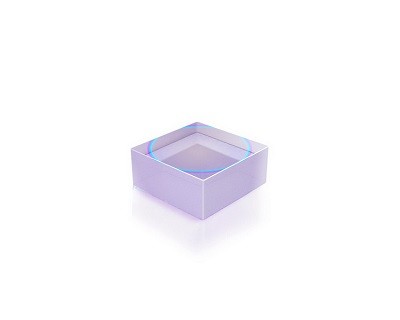

3-ND10YVO-08 - Nd(1%):YVO4 Laser Crystal, 3x3x4 mm, AR/AR@1064&808 nm

Plus de vues

3-ND10YVO-08 - Nd(1%):YVO4 Laser Crystal, 3x3x4 mm, AR/AR@1064&808 nm
390,00 $US
Neodymium doped yttrium vanadate (Nd:YVO4) is one of the most promising commercially available diode pumped solid state laser materials. It has high laser induced damage threshold and good mechanical in addition to optical properties. Its large stimulated emission cross-section and high absorption of pump laser make it a right crystal for pocket laser.
Nd: YVO4 can produce IR green and blue laser by using minor different set-up. A broad absorption band centered at 807 nm and favourable mechanical properties make Nd:YVO4 well suited for compact, efficient, high power diode-pumped lasers. Natural birefringence gives rise to a highly polarized output at 1064.3 and 1342 nm.


Traitements AR/AR@1064&808 nm
Dimensions, mm 3x3x4
Material Nd(1%):YVO4
Delivery 2-4 weeks
Description

Détails

Neodymium doped yttrium vanadate (Nd:YVO4) is one of the most promising commercially available diode pumped solid state laser materials. It has high laser induced damage threshold and good mechanical in addition to optical properties. Its large stimulated emission cross-section and high absorption of pump laser make it a right crystal for pocket laser. Nd: YVO4 can produce IR green and blue laser by using minor different set-up. A broad absorption band centered at 807 nm and favourable mechanical properties make Nd:YVO4 well suited for compact, efficient, high power diode-pumped lasers. Natural birefringence gives rise to a highly polarized output at 1064.3 and 1342 nm.
Fonctionnalités
  • Large gain-bandwidth
  • Very large emission bandwidth
  • Excellent thermal conductivity
  • Short upper-state lifetime (3.2 μs)
  • High saturation power
  • Relatively high laser cross-sections
  • High damage threshold
  • Strong Kerr effect
