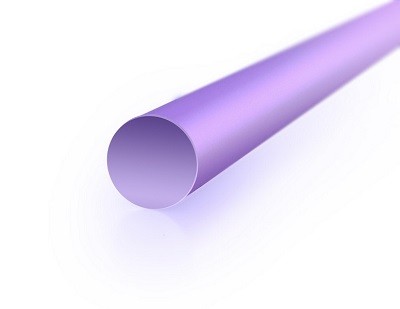

3-ND06YAG-06 - Nd(0,6%):YAG Laser Crystal, Ø8x130 mm, AR/AR@1064 nm

Plus de vues

1 222,00 $US

We supply Nd:YAG rods with high optical homogeneity, high damage threshold, consistent performance and high processing accuracy.

Also we offer periodic concentrated crystals.
YAG:Nd have three regions. The first one about 5-7 mm in length has low (0.3-0.4 %) Nd-concentration, the middle part contain 1 -1.3 mol.% Nd, the length about 10-12 mm and the last part is like the first one.

Traitements	AR/AR@1064 nm
Dimensions, mm	Ø8x130
Material	Nd(0,6%):YAG
Delivery	2-4 weeks

Description

Détails

We supply Nd:YAG rods with high optical homogeneity, high damage threshold, consistent performance and high processing accuracy. Also we offer periodic concentrated crystals.
YAG:Nd have three regions. The first one about 5-7 mm in length has low (0.3-0.4 %) Nd-concentration, the middle part contain 1 -1.3 mol.% Nd, the length about 10-12 mm and the last part is like the first one.

Fonctionnalités

Wide absorption bandwidth
Low lasing threshold
High slope efficiency
Large luminescence cross-section
Linearly polarized emission and single-mode output
