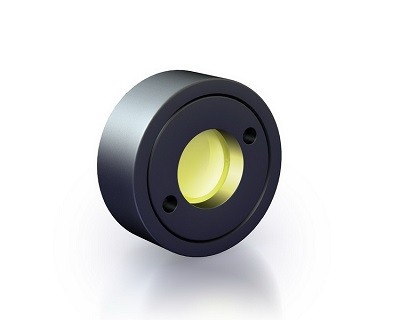

2-IRPW-ZO-L/2-7000-C - λ/2 Mid-IR Zero Order waveplate , >10 mm clear aperture, 7000 nm, AR/AR Coated

Plus de vues

2-IRPW-ZO-L/2-7000-C - λ/2 Mid-IR Zero Order waveplate , >10 mm clear aperture, 7000 nm, AR/AR Coated
990,00 $US
We offer Zero Order half waveplates and quarter waveplates with clear aperture from 10mm up to 18mm for the range 2,8 - 9,0 microns.

Waveplates are coated with dielectric AR layers for the mid-IR range in order to reduce Fresnel losses. Characteristic plates thickness is 0,2 - 1,0 mm. Generally, the waveplates are mounted into the metal holder for easier handling and adjustment.
Ouverture utile, mm >10
Traitements AR/AR Coated
Retardation λ/2
Longueur d'onde, nm 7000
Delivery <1 week
Description

Détails

We offer zero order half and quarter waveplates with clear aperture of 10 to 18 mm for applications in the 2.9 - 9 microns range. Waveplates are AR coated in order to reduce Fresnel losses. Waveplates are mounted for easier handling and adjustment.

Fonctionnalités
  • Zero order waveplates for mid infrared applications (2.9-9.0 μm)
  • AR coated
  • Mounted
  • Custom sizes available
